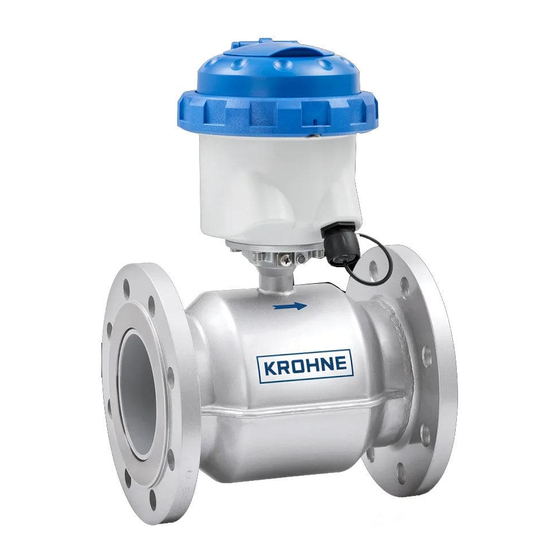

  • Page 1 WATERFLUX 3070 WATERFLUX 3070 WATERFLUX 3070 WATERFLUX 3070 Quick Start Quick Start Quick Start Quick Start Battery powered electromagnetic water meter Electronic Revision ER 4.5.1_ (SW.REV 4.3.1_) © KROHNE 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 2: Table Of Contents

    4.1 Connecting the internal battery ..................26 4.2 Connecting the external battery..................27 4.2.1 IP67 housing (compact and field version)................27 4.2.2 IP68 housing (compact version).................... 27 4.2.3 Battery settings........................27 www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 3 CONTENTS WATERFLUX 3070 5 Technical data 5.1 Dimensions and weights ....................29 6 Notes 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 4: Safety Instructions

    If you need to return the device to the manufacturer or supplier, please fill out the form • contained on the CD-ROM and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 5: Instruction For Transportation And Handling Of Batteries

    • Remove the battery from device before returning to the manufacturer for service or warranty reasons. • Dispose battery packs in accordance with local regulations; where possible, recycle used batteries. 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 6: Installation

    Assembly materials and tools are not part of the delivery. Use the assembly materials and tools in compliance with the applicable occupational health and safety directives. INFORMATION! Special cable and/or cable assemblies are delivered according the ordered converter type. www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 7: Device Description

    Product specific information and extensive product specification is available using PICK, the Product Information Center KROHNE web-tool. PICK can be found via the service menu button on the KROHNE.com website. The following versions are available: • Compact version (the signal converter is mounted directly on the measuring sensor) in aluminium (IP67) or polycarbonate (IP68) housing •...
  • Page 8: Nameplate (Example)

    3 Battery voltage and Electronic Revision number 4 Optional (MI-001): Additional information including approval number, Q3, ratio 5 Meter constant, diameter, wetted materials, protection class 6 Type designation of the flowmeter, serial number, date of manufacturing www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 9: Storage

    • Allen key (4 mm) • Small screwdriver • Wrench for cable glands • Wrench for wall mounting bracket (remote version only) • Torque wrench for installing flowmeter in pipeline 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 10: General Requirements

    Do not expose the signal converter to intense vibration. The flowmeters are tested for a • vibration level in accordance with IEC 68-2-64. 2.7.1 Vibration Figure 2-5: Avoid vibrations 2.7.2 Magnetic field Figure 2-6: Avoid magnetic fields www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 11: Installation Conditions

    Take precautions during transport and installation to protect the in- and outlet of the sensor. 2.8.1 Inlet and outlet Figure 2-7: Minimal inlet and outlet 1 Inlet: 0 DN 2 Outlet: 0 DN 2.8.2 T-section Figure 2-8: Distance behind a T-section 0 DN 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 12: Bends

    INSTALLATION WATERFLUX 3070 2.8.3 Bends Figure 2-9: Installation in bending pipes Figure 2-10: Installation in bending pipes CAUTION! Avoid draining or partial filling of the flow sensor www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 13: Open Feed Or Discharge

    Figure 2-11: Installation in front of an open discharge 2.8.5 Pump Figure 2-12: Recommended installation: behind a pump 1 Inlet: 3 DN 2.8.6 Control valve Figure 2-13: Recommended installation: in front of a control valve 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 14: Air Venting And Vacuum Forces

    INSTALLATION WATERFLUX 3070 2.8.7 Air venting and vacuum forces Figure 2-14: Air venting 2 Air ventilation point Figure 2-15: Vacuum www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 15: Mounting Position And Flange Deviation

    Max. permissible deviation of pipe flange faces: L 0.5 mm / 0.02". CAUTION! ® Use the proper tools to ensure the integrity of the meter and prevent damage to the Rilsan coating. 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 16: Ip68 Installation In A Metering Pit And Subsurface Applications

    The remote (field version) IFC 070 signal converter is available in: • an aluminum housing suitable for IP66/67, NEMA 4/4X/6. Figure 2-17: IP68 versions 1 Submersible 2 Buried Note: figures shows a cable 25 m / 82 ft www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 17: Mounting

    • Step 1: Apply approx. 50% of max. torque given in table. • Step 2: Apply approx. 80% of max. torque given in table. • Step 3: Apply 100% of max. torque given in table. 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 18 1 The torque values also depend on variables (temperature, bolt material, gasket material, lubricants, etc.) outside the control of the manufacturer. Therefore these values should be regarded as indicative only. www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 19 1 The torque values also depend on variables (temperature, bolt material, gasket material, lubricants, etc.) outside the control of the manufacturer. Therefore these values should be regarded as indicative only. 2 No full rating (max. 150 psi / 10 bar). 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 20: Mounting Of The Signal Converter

    • Position the upper part of the case and tighten the lock ring, up until the positions of points 1 and 2 are inline (do not tighten the ring any further). • Use the special wrench to tighten the ring as advised above. www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 21: Electrical Connections

    Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. 3.2 Grounding Figure 3-1: Grounding INFORMATION! Grounding without grounding rings. The flow sensor is equipped with a reference electrode. 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 22: Connection Of The Signal Cable Wsc

    3 Brown + white + violet cable, used for electrode signals (terminals 1, 2, 3) 4 Drain wires Dimensions of cable inch Figure 3-3: Cable connection at sensor side, standard cable 1 Connect drain wires under screw 2 Connect shielding under clamp www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 23 • Connect the wires as shown in the following table. Wire color Terminal Function Brown Reference electrode White Standard electrode signal Violet Standard electrode signal Blue Field current Green Field current Yellow No function Drain wires Screws Shielding 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 24: Connection Of The Output Cable

    10 mA; U: 2.7...24 VDC (P 100 mW) • Status output passive: Status output passive: Status output passive: Status output passive: I 10 mA; U: 2.7...24 VDC (P 100 mW) www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 25: Ip68 Housing (Compact Version)

    10 mA; U: 2.7...24 VDC (P 100 mW) • Status output passive: Status output passive: Status output passive: Status output passive: I 10 mA; U: 2.7...24 VDC (P 100 mW) 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 26: Start-Up

    • For closing the case of the signal converter in the IP68 housing refer to converter housing on page 20. INFORMATION! The device now operates with default menu settings. refer to Battery settings on page 27 for configuration of these menu settings. www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 27: Connecting The External Battery

    • Select the battery type, if a different type of battery is used. (Menu number B0) • Change the total battery capacity, if a different type of battery is used. (Menu number B1) 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 28 Reset battery lifetime 0 = Off Set the value to 1 to reset the battery counter lifetime counter. After a reset, the 1 = Reset menu setting automatically goes back to 0. www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 29 • than the flow sensor. Note that for other pressure ratings than mentioned, the dimensions may be different. • • For full information on signal converter dimensions see relevant documentation. 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
  • Page 30 7.87 8.03 9.84 9.49 9.84 10.55 10.0 11.81 11.69 11.0 13.78 14.25 13.5 15.75 16.3 16.0 19.7 18.8 19.0 27.6 20.7 31.5 22.9 23.5 31.5 24.7 31.5 27.5 31.5 31.4 www.krohne.com 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en...
  • Page 31 NOTES WATERFLUX 3070 12/2016 - 4002400604 - QS WATERFLUX 3070 R07 en www.krohne.com...
