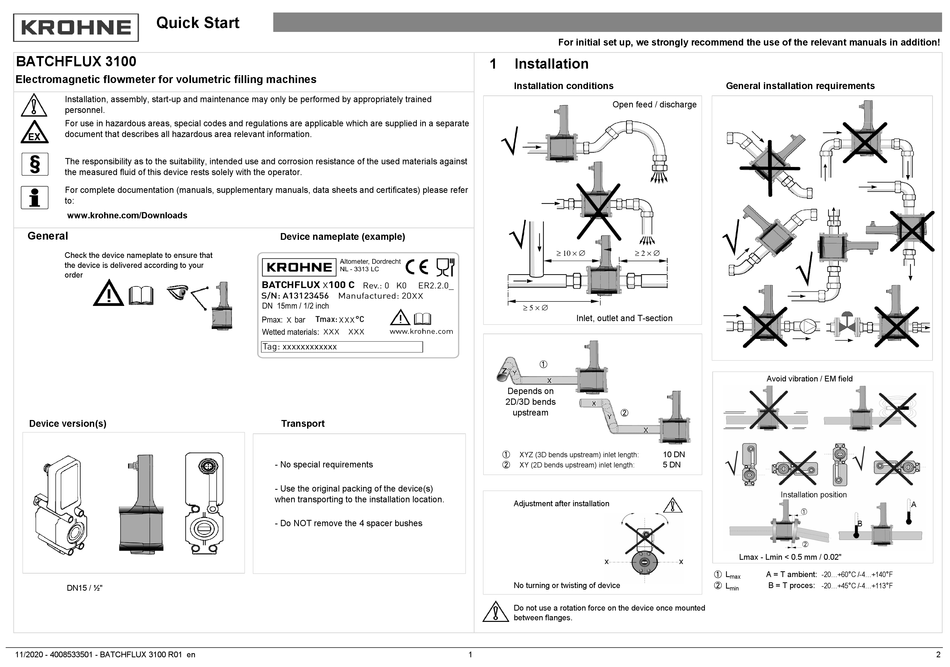

KROHNE BATCHFLUX 3100 Quick Start

Quick Start

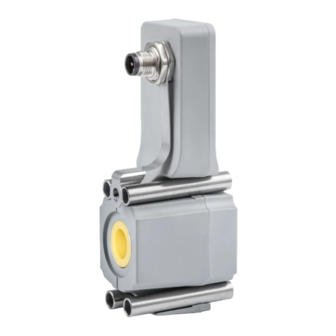

BATCHFLUX 3100
Electromagnetic flowmeter for volumetric filling machines
Installation, assembly, start-up and maintenance may only be performed by appropriately trained
personnel.
For use in hazardous areas, special codes and regulations are applicable which are supplied in a separate
document that describes all hazardous area relevant information.
The responsibility as to the suitability, intended use and corrosion resistance of the used materials against
the measured fluid of this device rests solely with the operator.
For complete documentation (manuals, supplementary manuals, data sheets and certificates) please refer
to:
www.krohne.com/Downloads
General
Check the device nameplate to ensure that
the device is delivered according to your
order
Device version(s)
DN15 / ½"
11/2020 - 4008533501 - BATCHFLUX 3100 R01 en
Device nameplate (example)
Transport
- No special requirements
- Use the original packing of the device(s)
when transporting to the installation location.
- Do NOT remove the 4 spacer bushes
For initial set up, we strongly recommend the use of the relevant manuals in addition!
1 Installation
Installation conditions
Open feed / discharge
≥ 10 × ∅ ≥ 2 × ∅
≥ 5 × ∅
Inlet, outlet and T-section
1
Depends on
2D/3D bends
upstream
2
1
XYZ (3D bends upstream) inlet length:
2 XY (2D bends upstream) inlet length:
Adjustment after installation
No turning or twisting of device
Do not use a rotation force on the device once mounted
between flanges.
1
General installation requirements
Avoid vibration / EM field
10 DN
5 DN
Installation position
Lmax - Lmin < 0.5 mm / 0.02"
1 L A = T ambient: -20...+60°C /-4...+140°F
max
B = T proces: -20...+45°C /-4...+113°F
2 L
min
A
B
2
