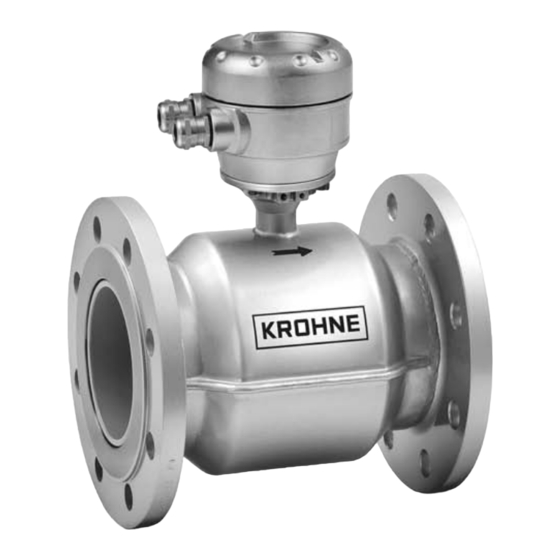

WATERFLUX 3000
WATERFLUX 3000
WATERFLUX 3000
WATERFLUX 3000
Electromagnetic flowmeter
The documentation is only complete when used in combination with the relevant
documentation for the signal converter.
© KROHNE 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en
Quick Start
Quick Start
Quick Start
Quick Start
Advertisement
Table of Contents
Related Manuals for KROHNE WATERFLUX 3000
Summary of Contents for KROHNE WATERFLUX 3000
- Page 1 WATERFLUX 3000 Quick Start Quick Start Quick Start Quick Start Electromagnetic flowmeter The documentation is only complete when used in combination with the relevant documentation for the signal converter. © KROHNE 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en...
-
Page 2: Table Of Contents
3 Electrical connections 3.1 Safety instructions......................13 3.2 Grounding ........................13 3.3 Connection diagrams ..................... 13 4 Technical data 4.1 Measuring principle......................14 4.2 Dimensions and weights ....................15 5 Notes www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en... -
Page 3: Safety Instructions
If you need to return the device to the manufacturer or supplier, please fill out the form • contained on the CD-ROM and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... -
Page 4: Installation
5 Signal cable (remote versions only) INFORMATION! Assembly materials and tools are not part of the delivery. Use the assembly materials and tools in compliance with the applicable occupational health and safety directives. www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en... -
Page 5: Device Description
Check for the correct supply voltage printed on the nameplate. 1 Name and address of manufacturer 2 Type designation of the flowmeter and CE sign with number(s) of notified body / bodies 3 Calibration data 4 PED data 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... -
Page 6: Storage
Signal converters installed in control cabinets require adequate cooling, e.g. by fan or heat • exchanger. Do not expose the signal converter to intense vibration. The flowmeters are tested for a • vibration level in accordance with IEC 68-2-64. www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en... -
Page 7: Inlet And Outlet
2 ≥ 0 DN 2.7.3 Mounting position Figure 2-4: Mounting position 2.7.4 Flange deviation CAUTION! Max. permissible deviation of pipe flange faces: ≤ 0.5 mm / 0.02" Figure 2-5: Flange deviation 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... -
Page 8: T-Section
INSTALLATION WATERFLUX 3000 2.7.5 T-section Figure 2-6: Distance behind a T-section 1 0 DN 2.7.6 Vibration Figure 2-7: Avoid vibrations 2.7.7 Magnetic field Figure 2-8: Avoid magnetic fields www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en... -
Page 9: Bends
INSTALLATION WATERFLUX 3000 2.7.8 Bends Figure 2-9: Installation in bending pipes Figure 2-10: Installation in bending pipes 2.7.9 Open discharge Figure 2-11: Installation in front of an open discharge 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... -
Page 10: Control Valve
Figure 2-12: Installation in front of a control valve 2.7.11 Air venting Figure 2-13: Air venting 1 ≥ 5 m 2 Air ventilation point 2.7.12 Pump Figure 2-14: Installation behind a pump 1 ≥ 3 DN www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en... -
Page 11: Mounting
• Step 1: Apply approx. 50% of max. torque given in table. • Step 2: Apply approx. 80% of max. torque given in table. • Step 3: Apply 100% of max. torque given in table. 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... - Page 12 12 x 7/8" 1 The torque values also depend on variables (temperature, bolt material, gasket material, lubricants, etc.) outside the control of themanufacturer. Therefore these values should be regarded as indicative only. www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en...
-
Page 13: Electrical Connections
Grounding without grounding rings. The flow sensor is equipped with a reference electrode. 3.3 Connection diagrams INFORMATION! For the connection diagrams please refer to the documentation of the applicable converter. 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... -
Page 14: Technical Data
The large electrode spacing (D) and the increased flow velocity results in a higher magnetic signal voltage, also in the presence of a low flow rate. www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en... -
Page 15: Dimensions And Weights
IFC 100 (45°) ) ) ) b = 161 mm / 6.3" c = 184 mm / 2.7" Total height = H + a 1 The value may vary depending on the used cable glands 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... - Page 16 5.91 5.83 4.33 1½ 5.91 4.92 7.87 7.05 5.98 7.87 8.03 7.50 9.84 9.49 9.00 9.84 10.55 10.00 11.81 11.69 11.00 13.78 14.25 13.50 15.75 16.30 16.00 19.69 18.78 19.00 www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en...
-
Page 17: Notes
NOTES WATERFLUX 3000 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com... - Page 18 NOTES WATERFLUX 3000 www.krohne.com 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en...
- Page 19 NOTES WATERFLUX 3000 02/2012 - 7311212500 - QS WATERFLUX 3000 R05 en www.krohne.com...
- Page 20 • Measuring systems for the marine industry Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
