OPERATION MANUAL
MODEL
SHANGHAI TERAOKA ELECTRONIC CO., LTD
TECHNICAL SUPPORT DEPARTMENT
3rd Floor of 2nd Building, Jia Yuan Business Center,
51# Long Wu Road, Shanghai China 200232.
TEL : +86-21-6408-5151
EMAIL ADDRESS :steservice@digi-scale.com
SM-110
:
EDITION
Month
st
1
January
nd
2
___________
rd
3
___________
th
4
FAX : +86-21-6408-3468
Year
2008__
_____

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-110 and is the answer not in the manual?

Questions and answers

Innocent Takaedza
March 10, 2025

How do you configure weight embedded barcode for DIGI ****-110?

0
1 comments:
Mr. Anderson
May 14, 2025

To configure the weight embedded barcode for the Digi SM-110:

1. Press [*] to enter barcode settings (e.g., S46.7, S46.8, etc.).
2. Set the DATA2 length and shift using S46.8:
- 0: no shift
- 1: right shift
- 2: right shift ×2
- 3: left shift
- 4: left shift ×2
- 5: left shift ×3
3. Use [ⅹ] to select the middle check digit (S46.9).
4. Use [ⅹ] to select the last check digit (S46.1).
5. Use [ⅹ] to switch between ITF and EAN barcode formats (S46.1).
6. Press [#] at S46 to save the flexible barcode settings.

Refer to section 3.6.1 PLU programming in the SM-110 manual for usage notes.

This answer is automatically generated

0
Roy
January 24, 2025

How do I program names on the scale

0
1 comments:
Mr. Anderson
February 10, 2025

To program names on the Digi SM-110 scale, follow these steps:

1. Enter S mode by pressing [MODE] twice.
2. Select the Vender File by pressing [7] or scrolling down six times using [︾].
3. Enter the Vender File programming mode by pressing [*].
4. Select the Vender Key (e.g., V1) by pressing [1][*].
5. Enter the operator name using the keypad (e.g., [M][I][K][E] for "MIKE").
6. Store the Vender File by pressing [PLU], which saves the name and exits to the S mode.

This process assigns names to operators, which can be printed on labels if configured correctly.

This answer is automatically generated

0
A Jordaan Jordaan
April 3, 2025

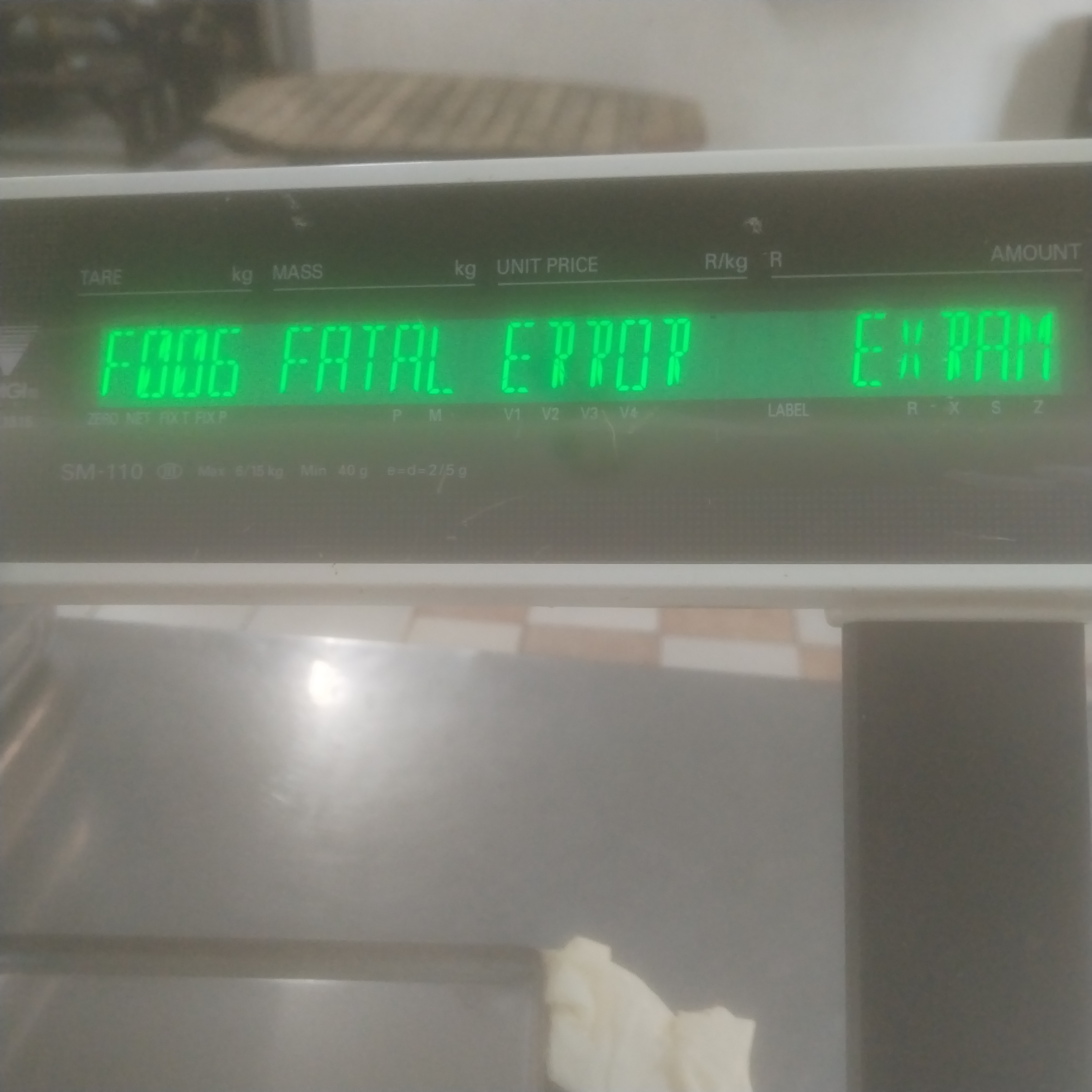

F008 fatal error

0
MAGDALENA FOURIE
February 17, 2025

how do you change the prices

0

Subscribe to Our Youtube Channel

Related Manuals for Digi SM-110

Summary of Contents for Digi SM-110

  • Page 1 Month Year January 2008__ ___________ ___________ _____ SHANGHAI TERAOKA ELECTRONIC CO., LTD TECHNICAL SUPPORT DEPARTMENT 3rd Floor of 2nd Building, Jia Yuan Business Center, 51# Long Wu Road, Shanghai China 200232. TEL : +86-21-6408-5151 FAX : +86-21-6408-3468 EMAIL ADDRESS :steservice@digi-scale.com...
  • Page 2 All manuals and user guides at all-guides.com Notice Welcome to use DIGI’s product. Please see the operation manual and learn how to use our products. Thank you!

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Table of Content 1. GENERAL ........................1 1.1 Overall View ......................1 1.2 Display Panel .....................3 1.3 Key Panel ......................3 1.4 Thermal Printer Head ..................8 1.5 Features ......................9 1.6 Specifications ....................10 1.6.1 Display ................................10 1.6.2 Operating Conditions ........................10 1.6.3 Dimensions...
  • Page 4 All manuals and user guides at all-guides.com 3.4 Main Group Files................... 22 3.4.1 Program Main Group File ......................22 3.4.2 Delete Main Group File ........................23 3.5 Program / Skip Item Data ................24 3.6 PLU Programming ..................26 3.6.1 Program PLU File(weighing item) ..................30 3.6.2 Program PLU File(non-weighing item) ................33...
  • Page 5 All manuals and user guides at all-guides.com 3.15.2 Delete Text File ..........................55 3.16 Free Format File ..................56 3.16.1 General Information ........................56 3.16.2 Print Area, Print Position and Print Angles ..............57 3.16.3 Programming Parameter Of Print Items ..............59 3.16.4 Free Format Entry ..........................61 3.16.5 Free Format Copy Function ....................66...

  • Page 6: General

    All manuals and user guides at all-guides.com 4. REGISTRATION MODE ................84 4.1 ON/OFF ......................84 4.2 Reset and Weighing Check................84 4.3 Tare Subtraction..................... 85 4.3.1 One touch Tare Subtraction ......................85 4.3.2 Digital tare Subtraction ........................85 4.4 PLU Call Up ....................86 4.4.1 Manual PLU Call Up ........................86 4.4.2 PLU Call Up by Preset Key...
  • Page 7 All manuals and user guides at all-guides.com 5. READ REPORT MODE ................. 97 5.1 Report Factor Select..................97 5.2 Report Type Selection................... 97 5.2.1 Main Group Report ..........................99 5.2.2 PLU Report ............................99 5.2.3 Department Report ........................100 5.2.4 Sales Report ............................101 5.2.5 24Hour Report ...........................101 5.2.6 ABC Report...

  • Page 8: Display Panel

    All manuals and user guides at all-guides.com SM 110 GENERAL 1. GENERAL 1.1 Overall View Bench Type Pole Type...
  • Page 9 All manuals and user guides at all-guides.com SM 110 GENERAL 1.2 Display Panel 25 digits × 19 segments TN type LCD 32 × 202 full dot Martix Green LCD 1.3 Key Panel 32 Preset Keys Type 56 Preset Keys Type...
  • Page 10 All manuals and user guides at all-guides.com SM 110 GENERAL ON/OFF KEY Turn display "ON" or "OFF". PRESET KEY P1 ~ P40 (B) Set up or call either unit price and tare value. P1 ~ P74 (EV) NUMERIC KEYS 0 ~ 9 Enter numeric data.
  • Page 11 All manuals and user guides at all-guides.com SM 110 GENERAL MULTIPLLE KEY Register the number of Non-Weight products. Select programming item such as PLU data, Shop Name in S Mode. Select Report Type in X Mode. Select Data Transaction Type in Z Mode. CLERK KEY V1~V4 Accumulate the Total Price.
  • Page 12 All manuals and user guides at all-guides.com SM 110 GENERAL MODE SELECT KEY Five Modes can be selected using this key. • Indicator R - REGISTRATION MODE (All the sales transactions are performed.) • Indicator X - CHECK MODE (Printing out and sales report.) •...

  • Page 13: Thermal Printer Head

    All manuals and user guides at all-guides.com SM 110 GENERAL 1.4 Thermal Printer Head Thermal Head Model: TDK LHE4253SU Max Printing With: 56mm Compare of Two Thermal Head Types of SM Series Scales SM-100, SM-80L, SM-300 SM-80, SM-500 Thermal Head Model TDK LHE4253SU TDK LH-3139K Max Printing Width...

  • Page 14: Features

    All manuals and user guides at all-guides.com SM 110 GENERAL 1.5 Features Digital printing scale consists of electronic cash registers function and label printing function. High-speed, high reliability thermal head printer. Easy paper handing achieved special designed mechanism. Built-in clock automatically updates data and time. Quick response to weight changes.

  • Page 15: Specifications

    All manuals and user guides at all-guides.com SM 110 GENERAL 1.6 Specification 1.6.1 Display 25 digits × 19 segment TN type LCD with back-light for numeric digit and character display. Tare weight display : 4 digits. Weight display : 5 digits. Unit price display : 6 digits.

  • Page 16: Label Type

    All manuals and user guides at all-guides.com SM 110 GENERAL 1.7 Label Type Note: Labels must be winding outwards (on top backing paper) and not inwards (under backing paper) within the core (see diagram above). If labels are wound wrongly, printing problem may result. We do not recommend the use of varnish labels.

  • Page 17: Initial Setup

    All manuals and user guides at all-guides.com SM 110 INITIAL SETUP 2. INITIAL SETUP 2.1 Setup Indication of Assemble (1) Use 4 screws to fix the Pole. (1) Use 1 flat screws to fix the Pole.
  • Page 18 All manuals and user guides at all-guides.com SM 110 INITIAL SETUP Bubble Adjustment Bubble Place the scale on the flat surface and adjust the four legs until the bubble on the level is in the centre as shown above.

  • Page 19: Location Of Switches And Connectors

    All manuals and user guides at all-guides.com SM 110 INITIAL SETUP 2.2 Location of Switches and Connectors Ethernet Port RS232 Port Cash Drawer Port Fuse Holder Power Switch 2.3 Mode Change DISPLAY OPERATION REMARK ＄/kg ＄ 0.000 0.000 0.00 0.00 Weight mode.Lamp R turns on.

  • Page 20: Memory Initialization

    All manuals and user guides at all-guides.com SM 110 INITIAL SETUP [Rezero]+[2][3][0] CLEAR FILE PLU file. Vender transaction data. [》] CLEAR VENDER DATA Report files. [》] CLEAR REPORT FILES All files in memory. [》] CLEAR MEMORY DATA CLEAR MEMORY Y-C N-T [C] to clear file data,[T] to quit.

  • Page 21: Password Setting

    All manuals and user guides at all-guides.com SM 110 INITIAL SETUP 2.6 Password Setting 2.6.1 Procedures of Password Setting DISPLAY OPERATION REMARK ＄/kg ＄ Z1.0 RESET SALES DAILY Z mode. Lamp Z turns on. Display password for X mode . XXXX: former password [MODE] PWD X...

  • Page 22: Clear Files

    All manuals and user guides at all-guides.com SM 110 INITIAL SETUP ＄/kg ＄ [1][2][3][4] ENTER PWD X **** Incorrect password. ENTER PWD X Retry. [1][1][1][1] ENTER PWD X **** Correct password. X1.0 READ SALES DAILY Enters X mode. Enters S mode. →...

  • Page 23: Program Mode

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3. PROGRAM MODE 3.1 Programmable Files In Programming Mode, there are two ways to select the Programming File by using different keys such as: • Enter the Number key. •...

  • Page 24: General Explanation

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.2 General Explanation DEPARTMENT, MAIN GROUP and PLU files are connected as shown below. By the following linking method, more detail and concrete information on sales transaction or pre-pack data can be got by printing various reports.

  • Page 25: Department Files

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.3 Department Files Department file is used for categorizing Main Groups. Department Number between 1 ~ 99 are available for programming. The Main Groups that are not linked to any Department will be assigned to Department Number 97 automatically.

  • Page 26: Delete Department File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.3.2 Delete Department File DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. → FILE [MODE] Lamp S turns on. Select Department Programming. [2] or [》] → DEPT FILE ＄...

  • Page 27: Main Group Files

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.4 Main Group Files Main Group is the middle category and can be assigned to a Department. The Main Group file is used for categorizing the PLU's. Main Group Number of 1 ~ 999 are available for programming. PLU's that are not linked to any Main Group Number will be assigned to the Main Group Number 997 automatically.

  • Page 28: Delete Main Group File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE (No.997 is default No. for PLU programming, and the PLUs which are not linked to any Main Group No. are assigned to No.997) (Non-PLU files (Weighing items) are assigned to Main Group code No.998) (Non-PLU files (Non-weighing items) are assigned to Main Group code No.999) Note4: The Main Group names programmed are not printed on the label/receipt but are for reporting.

  • Page 29: Program / Skip Item Data

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.5 Program / Skip Item Data Unnecessary PLU parameters will be skipped automatically due to auto-skip function, it is possible to set only necessary PLU parameter in PLU programming procedure "Program PLU File". The following parameters are available for Program/ Skip function Display Parameter...
  • Page 30 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Display Parameter Symbol [DAY WK] 35. Discount day of the week DAYWK [ADD-ON] 36. EAN 5 Digit ADD-ON ADDON [TAX] 37. TAX No. [PRICE2] 38. 2nd Price PRICE2 [% TARE] 39.

  • Page 31: Plu Programming

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.6 PLU Programming The following items can be programmed in PLU PROGRAMMING mode. The format chosen for the PLU will decide what items can be programmed in the PLU file. The items which print areas are not set on the selected format will skip automatically or not printed on label.
  • Page 32 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Step PLU File (weighing Item) Remarks S1.23 Select to print Key-In data or actual time * If S1.21 select CLOCK TIME, Key in selection in S1.22 is skipped. S1.24 Packed Time (if key-In is selected) S1.25 Cost price...
  • Page 33 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Non-Weighing Item Step PLU File (Non-weighing Item) Remarks S1.0 PLU No. S1.1 Unit Price (6 digits) S1.2 Label Format for the 1st label Refer to Label Format List. S1.3 Label Format for the 2nd label Free format No.1~99 only.
  • Page 34 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Step PLU File (Non-weighing Item) Remarks S1.30 The 1 target of volume discount S1.31 The discount value for the 1st target * If No Volume discount is selected, the parameters in S1.27 ~ S1.36 are skipped.

  • Page 35: Program Plu File(Weighing Item)

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.6.1 Program PLU File(weighing item) PLU data(weighing item) is programmed by following procedure as below. If the selected 1 or 2 label format does not have print area for the PLU items, the item will be skipped automatically or not printed on label.
  • Page 36 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ [1][0][0][1][0] S1.9 00000 EX CODE No appended item code of PLU 100. Select EAN ADD-ON or EAN ADD-OFF.(Ex. S1.10 EAN ADD-OFF) Set the Main Group number.(default MG 997) S1.12 MG NO Enter Main Group No.(Ex.111)
  • Page 37 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ 6 kinds discount type can be selected by press [1][0][0] S1.29 DISCONT [<<] or [>>] key. (Ex. UNIT PRICE discount) [<<] or [>>] S1.30 0.000 Set 1 limit weight is 0.1kg.(Ex.0.100kg)

  • Page 38: Program Plu File(Non-Weighing Item)

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Note3: The 2 digits after "C" in Weight display shows the line of the commodity name, and the next 2 digits in Weight display shows the position of the cursor. Note4: The PLU No.1 to No.999999 are available for PLU programming.
  • Page 39 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ [C][A][K][E] Enter the 2 line of comm ddity S1.4 C02.01 S1 A 100 name. Select the type of BARCODE by S1.5 BARCODE press [X] or [>>].(EAN or ITF) Select barcode format by press S1.6 DFLT...
  • Page 40 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ Press [<<] or [>>] key to change S1.20 NPRINT PACK DT whether print packed date. If necessarily, packed date can set [<<] or [>>] S1.21 PACK DT the day after present date.
  • Page 41 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ [1][1][0][1][0][4] S1.38 0000 ED TIME Set discount end time.(Ex. 09:00) special message file [0][9][0][0] number.(Ex. Number 1) S1.40 SMG NUM Special message file 1 is linked to this PLU.

  • Page 42: Plu [Copy] Function

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.6.3 PLU [COPY] Function The programmed PLU data can be easily copied into a new PLU. The function is very useful to save time or avoid mistake for the similar PLU data programming, especially in case of long description of Ingredients.

  • Page 43: Delete Plu File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.6.4 Delete PLU File DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. FILE → [MODE] Lamp S turns on. Enter PLU programming mode. S1.0 NO SET ＄ /kg window displays PLU number.

  • Page 44: Volume Discount & Mark Down Print Function

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.6.5 Volume Discount & Mark Down print function Volume Discount function is used to set up special price during a sales period. Shop manager may program the discount price during a sales period, and the Shop manager can avoid sales loss caused by not returning the discount price back to the original price even after the sales period.
  • Page 45 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Mark Down Print Function (How to print discount price) Mark Down Print function is used to print the discount price as well as the original price with double lines crossed when item is discounted. Mark Down Print function can be selected from the following 4 types, No Mark down / Unit Price Mark down/ Price Mark down / Unit Price &...

  • Page 46: Memory Status

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.7 Memory Status The function is used for checking the number of existing PLU and remaining programmable PLU. DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. FILE → [MODE] Lamp S turns on.

  • Page 47: Key Assignment

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.8 Key Assignment The Preset keys can be used for assignment of PLUs and Function keys to speed up the operation in R mode. 3.8.1 PLU Assignment PLU Number can be assigned to a preset key to call up PLU data by pressing the assigned preset key on Registration Mode.

  • Page 48: Delete Preset Key Assignment

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ S4.1 VR AS NO SET Enter Vender Key assignment status. Enter Function Key assignment S4.2 FN AS CLEAR status. [X][X] S4.0 FN AS -PRICE Select PRICE DISCOUNT function PRICE DISCOUNT function had [PRESET 25]...

  • Page 49: Shop Name File

    Press [SIZE] key to change font [SIZE][D][I][G][I][SP size of the shop name. S5.1 S01.10 SHOP S2 A 76 ][S][H][O][P] Enter the shop name .(Ex. “DIGI SHOP”) Program 2 line of this shop S5.1 S02.01 S1 A 100 name. Enter shop name for the 2 [T][E][L][:]……...

  • Page 50: Delete Shop Name File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.9.2 Delete Shop Name File At Shop Name programming mode, enter existing Shop Name Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. →...

  • Page 51: Advertisement File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.10 Advertisement File Advertisement message is the sales promotional description on the label, such as “FOR BARBECUE” or “FRESH”. Advertisement message is printed in the print area of the Commodity Name. If Commodity Name occupies all of the print area, there will be no room for the Advertisement Message and it will therefore not be printed.

  • Page 52: Delete Advertisement File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.10.2 Delete Advertisement File At Advertisement programming mode, enter existing Advertisement Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. → FILE [MODE] Lamp S turns on.

  • Page 53: Vender File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.11 Vender File Vender file is used for programming names of operators. Maximum 16 characters can be entered per Vender name. A programmed Vender number can be assigned to a preset key. The Vender Number or Name (Depend on Spec 21 setting) will be printed on the label, if selected label format with print area for Vender Number and the programmed Vender name can be printed on receipt when SPEC 21 set to NAME.

  • Page 54: Program Date And Time

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.12 Program Date And Time The built-in clock system can automatically work once they are set. Date (Month/Day/Year): 2 digits for each part; Time (Hour/Minute): 2 digits for each part. DISPLAY OPERATION REMARK...

  • Page 55: Special Message File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.13 Special Message File Special Message can be used as a description on the label such as receipt, which can be assigned in each PLU. Since standard format does not have a print area set for Special Message, Special Message cannot be printed when using these formats.

  • Page 56: Delete Special Message File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.13.2 Delete Special Message File At Special Message programming mode, enter existing Special Message Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. →...

  • Page 57: Ingredient File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.14 Ingredient File Ingredients data programmed in this Master Ingredient file can be printed on the Free Format (F1-F99) with ingredient print area. The size of print area will decide the numbers of lines and characters of every line.

  • Page 58: Delete Ingredient File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.14.2 Delete Ingredient File At Ingredient programming mode, enter existing Ingredient Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. → FILE [MODE] Lamp S turns on.

  • Page 59: Text File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.15 Text File Maximum 20 Texts are available (Text 1~16 are for Item label and text 17~20 are for Total label). Text is used for printing the fixed data on label such as “Unit Price”, “packed date”. Text cannot be printed when using standard format since they do not have any text print area set.

  • Page 60: Delete Text File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.15.2 Delete Text File At Text programming mode, enter existing Text Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK ＄/kg ＄ [MODE][MODE] Enter S mode. → FILE [MODE] Lamp S turns on.

  • Page 61: Free Format File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.16 Free Format File The Free Format enables you to design your own label format, by setting print angles, print positions, character size and other programmable items. You can create a new format by copying an existing label format and use it as a base or make a totally new label format.

  • Page 62: Print Area, Print Position And Print Angles

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.16.2 Print Area, Print Position and Print Angles All changeable item data should be programmed 8mm above the bottom of the label. The bottom 8 mm of the label should be used for invariable data such as shop name, since this area is printed when issuing the last label.
  • Page 63 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Print Position The printing position of each item data is decided by setting the distance from 0 point (X=0, Y=0) to the base position (X value, Y value). Print Angle Print angle of each Print Item can be selected from 4 different angles, 0 degree, 90 degree, 180 degree, and 270 degree.

  • Page 64: Programming Parameter Of Print Items

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.16.3 Programming Parameter Of Print Items Print Item for Item Label Up to 82 different item data can be programmed in Item Label Format and is used for printing at Manual mode and pre-pack mode.
  • Page 65 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Print Item for Total Label Up to 28 different item data can be programmed in Total Label Format and is used for printing multiple transaction labels for counter sales at Manual mode, Sub-Total and Grand Total at Pre-pack mode.

  • Page 66: Free Format Entry

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.16.4 Free Format Entry At Programming Mode, select Free Format programming mode and then enter new Free Format number (Ex. 1) programming mode. *For edit, enter existing Free Format number. Basic Setting: (width, height, angle and label type) DISPLAY OPERATION...
  • Page 67 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Base Type 1: Item data in Data Base Type1 are Numeric data or Fixed data. The print position of item data can be programmed by setting X / Y value, Print angle and Character size. Item Label : PLU No., Price, Unit Price, Weight, Quantity, Packed date, Packed Time, Quantity Symbol, Sell by date, Sell by time, Discount Price, Used by date, MG No., Dept.
  • Page 68 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Base Type 2 Item data in Base Type 2 are Alpha-numeric data. The print position of item data can be programmed by setting the max. print area , X / Y value, width of print area from X value, height of print area from Y value and print angle.
  • Page 69 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Base Type 3 Item data in Data Base 3 is Barcode data. The print position of bar-code data can be programmed by setting X / Y value, width of Barcode from X value, height of Barcode from Y value and print angle. DISPLAY OPERATION REMARK...
  • Page 70 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Base Type 4 Item data in Data Base 4 is Frame data. The print position of Frame data may be programmed by setting X value, Y value, X1 value, Y1 value [the opposite point against the point (X,Y) on a diagonal line], and line weight.

  • Page 71: Free Format Copy Function

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.16.5 Free Format Copy Function At Free Format programming mode, Select Copy existing Label Format and then select the existing label format you want to be copy (Ex. T7) and go to next selection. DISPLAY OPERATION REMARK...

  • Page 72: Sample Of Program A Format By Modifying The Existing Format

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.16.7 Sample of program a format by modifying the existing format You can create your desired label format by copying an existing format and modifying it to your needs.
  • Page 73 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE Following is the example on how to customize standard format T8 to your needs. E.g. Add an ingredient text and remove the PLU # from the standard Item Label Format DISPLAY OPERATION REMARK...
  • Page 74 All manuals and user guides at all-guides.com SM 110 PROGRAM MODE DISPLAY OPERATION REMARK ＄/kg ＄ Enter TTL Height setting mode, change the height from 21 mm to [*][*][1][5] S12.5 COMM HT MM 15 mm and go to next selection. Enter print status.

  • Page 75: Place File

    Enter place file No.(Ex. No.1) Enter the Place File as the same [M][A][D][E][SP]…… S15.1 P01.13 DIGI S1 A 88 procedures as Commodity Name Entry. (Ex. “MADE IN DIGI”) Change font size to S5. [SIZE][SIZE]… S15.1 P01.13 DIGI S5 A 48 (S1~S5; M1~M5; L1~L5) Store Place File 1,back to S mode.

  • Page 76: Machine Setting

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.18 Machine Setting DISPLAY OPERATION REMARK ＄/kg ＄ → FILE Enter S mode. [1][6][*] S16.0 RATE 0.00 DISC Program Machine Code. Enter default discount rate.(Ex. [5][0][0] S16.0 RATE 5.00 DISC 5.00%) Store machine setting, back to S...

  • Page 77: Logo File

    2) When programming Label Logo, draw the limit of the Logo print area. 3) Draw the desired logo design in the section paper by filling the section with dot. (The dots are necessary to seize the image of the actual logo before programming.) Example: DIGI Logo for label (37 x 30 dots)

  • Page 78: Program Display & Keys Function

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.19.2 Program Display & Keys Function Program Display for Logo Set Up The following display appears when entering Logo Program Mode. Key Function for LOGO Set Up ------- Clear a dot. ------- Fill a dot.

  • Page 79: Programming Order

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.19.3 Programming Order 1) After filling a section, programming status (the position of the cursor) moves to the next dot automatically. 2) When the programming status reached to the last dot (128 horizontal dots), or [*] key is depress, the programming status moves to the first left section on the next upper line automatically.

  • Page 80: Delete Logo File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.19.5 Delete Logo File At Logo programming mode, enter existing Logo Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK ＄/kg ＄ Enter Logo File programming S17.0 LOGO NO SET mode.

  • Page 81: Tax File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.20 Tax File This function enables you to program consumption tax rate included or excluded in the price. Up to 10 Tax Numbers (1 - 10) can be programmed. The programmed Tax rates (Tax Number) that are linked to a Main Group will apply for all PLU's in that Main Group or set the Tax Number in individual PLU File.

  • Page 82: Delete Tax File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.20.2 Delete Tax File When the Tax Number linked to the existing Main Group File or PLU File, the Tax Number cannot be deleted. In addition, the Tax Number 1 cannot be deleted. At Tax programming mode, enter existing Tax Number (Ex.

  • Page 83: Scroll Message File

    [1][*] S13.1 SC MG Enter Scroll Message. [W][E][L][C][O][M][E S13.1 SC MG STORE (Ex. “WELCOME DIGI ][SP][T][O]…… STORE”) Store the Scroll message 1 data, back to [PLU] → SCROLL MESSAGE S mode. 3.21.2 Delete Scroll Message File When the Scroll message number is linked to Scroll Sequence, it can’t be deleted.

  • Page 84: Scroll Sequence File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.22 Scroll Sequence File Scroll Sequence # 1 to # 3 is available. Each scroll sequence consists of up to three kinds of Messages. Scroll Sequence means the scroll display order and display appearance of the programmed scroll message.

  • Page 85: Enable Or Disable Scroll Sequence File

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.22.2 Enable or Disable Scroll Sequence File This Function is used to enable the programmed Scroll Message data by Scroll Sequence Number shows on the Display in Registration Mode when scale in idle time. The Scroll Message, Scrolling Pattern and Speed will follow Scroll Sequence Number setting.

  • Page 86: Delete Scroll Sequence Number

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.22.3 Delete Scroll Sequence Number When the Scroll Sequence Number to be deleted is in Used, it can’t be deleted. At Scroll Sequence programming mode, enter existing Scroll Sequence Number (Ex. 1) to be deleted. DISPLAY OPERATION REMARK...

  • Page 87: Ascii Character Input Method

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.23 ASCII Character Input Method Insert Key-sheet for ASCII Character Input: (For standard version) & " à/á ?/í é/é ü/ü ← → < > ó € Each key includes 3-4 ASCII character. Example: Key [A/a/1/!] includes ASCII character: A, a and 1.

  • Page 88: Ascii Code Input Method

    All manuals and user guides at all-guides.com SM 110 PROGRAM MODE 3.24 ASCII Code Input Method ASCII Code Input Method is another kind of input method for ASCII character entry. [CODE] Key can switch the input method between ASCII Code Input Method and ASCII Character Key In Method.

  • Page 89: Registration Mode

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4. REGISTRATION MODE 4.1 ON/OFF 1 - ZERO 2 - NET 3 - FIX T 4 - FIX P OPERATION KEYS $/kg Power on. [ON/OFF] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3...

  • Page 90: Tare Subtraction

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.3 Tare Subtraction 4.3.1 One touch Tare Subtraction 1 - ZERO 2 - NET 3 - FIX T 4 - FIX P OPERATION KEYS $/kg Stand-by-status. 0.0 0 0 0.0 0 0 0.0 0 0.0 0...

  • Page 91: Plu Call Up

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.4 PLU Call Up There are three ways to cal up programmed PLU: Manual PLU Call Up By press assigns to the preset key that desired PLU. Auto PLU Call Up. Note: The machine beeps if incorrect operation is performed when during PLU calls up.

  • Page 92: Fix Operation

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 1 - ZERO 2 - NET 3 - FIX T 4 - FIX P OPERATION KEYS $/kg Stand-by-status 0.0 0 0 0.0 0 0 0.0 0 0.0 0 Enter the PLU No. of the Beef steak [0] [1] [0] 0.0 0 0 0.0 0 0...

  • Page 93: Operation Mode Change

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.5.3 Fix Unit Price by FIX Key 1 - ZERO 2 - NET 3 - FIX T 4 - FIX P OPERATION KEYS $/kg Stand-by-status. 0.0 0 0 0.0 0 0 0.0 0 0.0 0 Enter unit price.

  • Page 94: Item Label Printing In Manual Mode

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.7 Item Label Printing in Manual Mode You can use this operation to print out item labels for a PLU or Non-PLU of Weighing Item or Non-weighing Item. Before the operation, check the following point. Press [REZERO] and [MODE] to select LABEL mode.

  • Page 95: Label Printing For Non-Plu Item

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.7.2 Label Printing for NON-PLU Item It is possible to print item label for Non-PLU Item at Manual Mode. The Non-PLU Item will be cleared is a PLU is called up or [C] key is pressed. Note: For Weighing of Non-PLU Item will be registered to PLU # 999998.

  • Page 96: Total Label Printing In Manual Mode

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.8 Total Label Printing in Manual Mode This operation is used for printing total label in Manual Mode. 4.8.1 Sales Transaction This section shows how to operate the transactions with Clerk key. The designated Clerk key accumulates each transaction data and Total Label will be issued.

  • Page 97: Price Discount] Function Key In Add Mode

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.8.2 [PRICE DISCOUNT] Function Key in Add Mode This function key is used to get the desirable discounted total price in Add. Mode by subtracting the discount value from the original total price when issuing total label or receipt. The formula is shown as follows PRICE TO PAY = ORIGINAL TOTAL PRICE - ENTERED DISCOUNT VALUE Note: Prior to this operation, [PRICE DISCOUNT] Function should be assigned to Preset Key in...

  • Page 98: Data Correction

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.9 Data Correction The data correction during accumulating operation is to correct sales transaction data when customer canceled the purchases or operators make a mistake before issuing Total Label or Receipt. The corrected item data is printed with two lines crossed on the Total Receipt.

  • Page 99: Void By Item Correction

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.9.2 Void by Item Correction This function is to void the specified transaction during an accumulating operation. Operator can designate the number of transaction to be voided even if plural transactions for the same item are performed.

  • Page 100: Item Label Printing In Pre-Pack Mode

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.10 Item Label Printing in Pre-pack Mode Pre-pack Mode can be switched from Manual mode by pressing [AUTO] key. In this mode, the following functions are available, (1) For weighing item, label is automatically issued (without pressing [*] key) after the weight of the item gets stable.

  • Page 101: Item Label Issue For Non-Plu Item

    All manuals and user guides at all-guides.com SM 110 REGISTRATION MODE 4.10.2 Item Label Issue for NON-PLU Item It is possible to print item label for Non-PLU Item at Pre-pack Mode. The Non-PLU Item will be cleared is a PLU is called up or [C] key is pressed. For example: At Pre-pack Mode, enter the Price for Non-PLU item (Ex.

  • Page 102: Read Report Mode

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE 5. READ REPORT MODE 5.1 Report Factor Select Whether to use the following report print factors depends on the type of report. Please refer to Operation Flow in Report Mode. PRINT LIMIT For setting the report range, Department Number, Main Group Number or PLU Number to start and finish is to be entered.
  • Page 103 All manuals and user guides at all-guides.com SM 110 READ REPORT MODE...

  • Page 104: Main Group Report

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE 5.2.1 Main Group Report Printing report order for MAIN GROUP Daily/Term Read Report: For example: • MAIN GROUP LOWER LIMIT: 3 • MAIN GROUP UPPER LIMIT: 996 DISPLAY OPERATION REMARK ＄/kg...

  • Page 105: Department Report

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE DISPLAY OPERATION REMARK ＄/kg ＄ Enter X mode X1.1 READ DAILY Lamp X turns on. Select PLU Daily Read Report. [《] or [》] or [X] X2.1 READ DAILY X2.1 ST NUM Enter starting PLU Number.(Ex.3)

  • Page 106: Sales Report

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE 5.2.4 Sales Report Printing report order for SALES Daily/Term Read Report: DISPLAY OPERATION REMARK ＄/kg ＄ Enter X mode X1.1 READ DAILY Lamp X turns on. Select Sales Daily Read Report. [《] or [》] or [X] X4.1 READ...

  • Page 107: Clerk Report

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE 3) Rank C includes PLUs whose accumulated share is between 95% ~ 100%. *Even if the accumulated share exceeds 95%, the last PLUs will be included in Rank B. For example: Printing report order for ABC Daily/Term Read Report: •...

  • Page 108: Pre-Pack Report

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE 5.2.8 Pre-pack Report On Pre-pack Report, Total data of Prepack labels (Such as total price, total quantity, etc) can be printed on PREPACK DEPARTMENT REPORT or PREPACK MAIN GROUP REPORT. For example: Printing report order for PREPACK DEPARTMENT/ MAIN GROUP REPORT: •...

  • Page 109: Tax Report

    All manuals and user guides at all-guides.com SM 110 READ REPORT MODE 5.2.9 Tax Report Tax report is used to print out the Tax total data such as Tax Type, Tax rate, Amount Including Tax, Amount Excluding Tax, Tax Amount and so on by every Tax Number. DISPLAY OPERATION REMARK...

  • Page 110: Reset Report Mode

    All manuals and user guides at all-guides.com SM 110 RESET REPORT MODE 6. RESET REPORT MODE Reset Sales Daily / Monthly/Term Reset Report DISPLAY OPERATION REMARK ＄/kg ＄ Enter Z mode Z1.0 RESET SALES DAILY Lamp Z turns on. Enter Reset mode. RESET REPORT Y-C N-T...

  • Page 111: Apendix

    All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 TITLE SM-110 SPECIFICATION LIST REVISION NO. ISSUED DATE 17 August, 2004 Rev. Software Modification Details Version First Release 1.00...
  • Page 112 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 CUSTOMER SPECIFICATION [REZERO] + [1][4][1] Item Barcode F1F2 CCCCC XCD XXXX CD F1X2 CCCCCC XXXX CD All are 13 digits non-PLU barcode unless...
  • Page 113 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Right Side Data of Total Barcode Quantity Weight Price Total Barcode Print on Receipt Print Readable Character of F1 for Item and Total Barcode...
  • Page 114 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Default Label Format for Total Printing Formats in ( ) are for U1 (T7) and CA only. (T8) (T9) F1 to F8 are Free...
  • Page 115 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Unit Price of Weigh PLU Can Use for Price of Non-weigh PLU and Vice Versa Effective when SPEC643 Allow Inhibit = 1.
  • Page 116 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Parity Bit of Multi-drop SIO (RS-485 / 4-Lines Port) None Even Stop Bit of Multi-drop SIO (RS-485 / 4-Lines Port) 1 Bit...
  • Page 117 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Quantity Set Function Key Enable Allow Inhibit Price Change Function Key Enable Allow Inhibit Refund Item Function Key Enable Allow Inhibit Shop Name Function Key Enable...
  • Page 118 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Receipt Printing with Dual Copy Inhibit Allow Advertisement Message on All Label Inhibit Allow Manual Print in Prepack Mode for Weigh Item...
  • Page 119 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Receipt Logo Printing Status No Print Logo 3 Logo 1 Logo 4 Logo 2 Logo 1, 2, 3 and 4 Logo 1 and 2...
  • Page 120 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Change All PLU Default Format when Default SPEC Change Host Communication No Operation Enable Host Communication RS-232C RS-485 Port Number Enter value from range 1 to 254...
  • Page 121 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Keysheet Letter Size For FL & AS only. Small Letter Capital Letter Test Print on Receipt No Print Print For SD only.
  • Page 122 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 30 lb to 15 kg Conversion For UK only. Disable Enable Discount Time on Daily Basis Weight Check Function Unit Price Override per PLU...
  • Page 123 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Weight Print for Non-weigh Item Scale File Disable Enable Print Format of Month Number 3 Alphabetic 2 Alphabetic FSD Saving Calculation Net Value Cent Off For U1 only.
  • Page 124 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Centering of Special Message JIS Code Table For AA only. Default Label Format 2 for Item Printing Not Used Zero Unit Price for Unit Price Change Function Key...
  • Page 125 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Sub-total and Grand Total Barcode Based on Item Barcode Based on Total Barcode Mask Barcode Last Human Readable Check Digit Character Generator for Korea For KE only.
  • Page 126 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Client Auto PLU Update Update / Delete Existing PLU Update All Server PLU Update / Delete All Sever PLU Disable Update Existing PLU...
  • Page 127 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Beef Reference Number Code Date Item Code Follow PLU Number For IR only. Bench Key Pad Taiwan Receipt Printer For TW only.
  • Page 128 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Gap Value In-feed Operation Re-adjustable No Change SM-200 Power Save Back Light Off Power Off SM-200 Power Save Timeout 3 Min 10 Min...
  • Page 129 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Multi Barcode Type For AI 01 only. EAN128 CODE128 Operator Logging Function Disable Enable Price Change Password For CA only. Disable Enable...
  • Page 130 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Default ITF for Barcode Disable Enable ITEM Text (5-16) Print on Total Label Disable Enable Image at Top Receipt Enter range from 0 to 99...
  • Page 131 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Additional Rounding In Receipt Print No Print Gratuitous ARP Disable Enable...
  • Page 132 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Auto Power-Off Function Inhibit 30 Minutes 3 Minutes 1 Hour 10 Minutes 3 Hours RTS/CTS Handshaking of RS-232C Reset Receipt consecutive Number after Reset Report...
  • Page 133 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Weight Data Synchronization Function Allow Inhibit Open Cash Drawer when Issue Label Allow Inhibit Print Grand Total on Sales Report Allow Inhibit...
  • Page 134 All manuals and user guides at all-guides.com Specification List SM-110 V1.20 20 December, 2005 SPEC SPECIFICATION DESCRIPTION SM-100 Print Sub-Total on Receipt Allow Inhibit Pulse width for Opening Cash Drawer 20ms (Default Value) 200ms 50ms 300ms 100ms 400ms R Mode Password Function Inhibit Power On &...

  • Page 135: Flexible Barcode Setting Guide

    All manuals and user guides at all-guides.com SM-110 Flexible Barcode Setting Guide Display Operation Remark tare weight Unit price/kg price Press [mode] third -- --> PLU FILE Enter programmer. times Enter Flexible Barcode Press numeric 4 and 6 -- -->...
  • Page 136 Press [ⅹ] to swith ITF and EAN Press [*] S46.1 F BAR ITF BARCODE barcode. Press [#] -- --> FLEXI BARCODE Save the flexible barcode 1. Note: See the Flexible Barcode Usage Note at 《3.6.1 PLU programming》 in SM-110 Operation manual.

  • Page 137: Traceability Setting Guide

    All manuals and user guides at all-guides.com SM-110 Traceability Setting Guide Prepare Set SPEC258 to “1” Traceability Programming Display Operation Remark tare weight Unit price/kg price [Mode] [Mode] [Mode] PLU FILE Enter S mode [3] [4] COUNTRY FILE Enter country file programming [*] [1] S34.0...
  • Page 138 All manuals and user guides at all-guides.com Display Operation Remark tare weight Unit price/kg price Enter slaughter house [3][6] SLAUGHTER HOUSE programming [*][1] S36.0 HOUSE NO SET Program slaughter house No. 1 Program slaughter house country [*][1] S36.1 HOUSE COUNTRY No.1 Program slaughter house name [*][S][L][A][U][G]...
  • Page 139 All manuals and user guides at all-guides.com Display Operation Remark tare weight Unit price/kg price [4][9] BREED FILE Enter breed file programming [*][1] S49.0 BREED NO SET Program breed file No. 1 [*][B][U][L][L] S49.1 BREED BULL NAME 4 Program breed name “BULL” BREED FILE Save breed file No.
  • Page 140 All manuals and user guides at all-guides.com Display Operation Remark tare weight Unit price/kg price [*][R][C][D] S37.8 R-CD NAME 3 Program R-CD content “RCD” [*][G][T][I][N] S37.9 GTIN GTIN NAME 4 Program GTIN content “GTIN” [*][L][O][T] S37.10 NAME 3 Program LOT content “LOT” [*][1] S37.11 TRACE...
  • Page 141 All manuals and user guides at all-guides.com Free Format Programming Enter “S12 FREE FORMAT”, press [*] Edit the correlative items for traceability in free format PLU ITEM Programming Enter “S19 PLU ITEM”, press [*] Set “ Item TRACE” to “PROGRAM” and press [#] to save PLU Programming When you edit PLU, set “S1.64 PLU”...

  • Page 142: Nutrition Setting Guide

    All manuals and user guides at all-guides.com SM-110 Nutrition Fact Setting Guide Concept Nutrition uses fix template to print. Totally It has 12 fix templates(No. 70 ~ No. 81). Setting Method 1. Enter S mode 2. Enter “S19 --- PLU ITEM” and set “IMAGE” and “NUTRI” to “PROGRAM”...

  • Page 143: Operational Menu Tree

    All manuals and user guides at all-guides.com Operational Menu Tree Registration Mode ( R Mode ) Report Print Mode ( X Mode ) X1.1 Read Main Group Daily X2.1 Read PLU Daily X3.1 Read Department Daily X4.1 Read Sales Daily X5.1 Read 24 Hour Daily X6.1 Read ABC Daily X7.1 Read Clark Daily...
  • Page 144 All manuals and user guides at all-guides.com S1 PLU File S1.0 Enter PLU No. S1.1 Unit Price (PR-KG or PR-PCS) S1.2 Label Format 1 (Default, T1-T12, S, A-C, F1-F99) S1.3 Label Format 2 (No, F1-F99) S1.4 Commodity Name and its Font Size S1.5 EAN Barcode or ITF Barcode S1.6 Barcode Type S1.7 Flag Code...
  • Page 145 All manuals and user guides at all-guides.com S12 Free Format S12.0 Free Format Number S12.1 Label Width S12.2 Label Height S12.3 Label Angle S12.4 Label Type (Item Label or Total Label) S12.5 Free Format Item…… S12.5 Free Format Item PLU Number 2.
  • Page 146 All manuals and user guides at all-guides.com S19 PLU Item Label Format 1 [LABFR1] Label Format 2 [LABFR2] Barcode Selection [BACODE] Barcode Flag Data [FLAG] Barcode Item Code [ITCODE] Main Group Code [MGCODE] Sell by Date [SELLDT] Sell by Time [SELLTM] Used by Date [USEDDT] Packed Date [PACKDT] Packed Time [PACKTM]...
  • Page 147 All manuals and user guides at all-guides.com Reset Report Mode ( Z Mode ) Z1.0 Reset Sales Daily Z2.0 Reset Sales Monthly Z3.0 Reset Sales Term...

Table of Contents

Save PDF
