Digi SM-500MK4 DP Service Manual

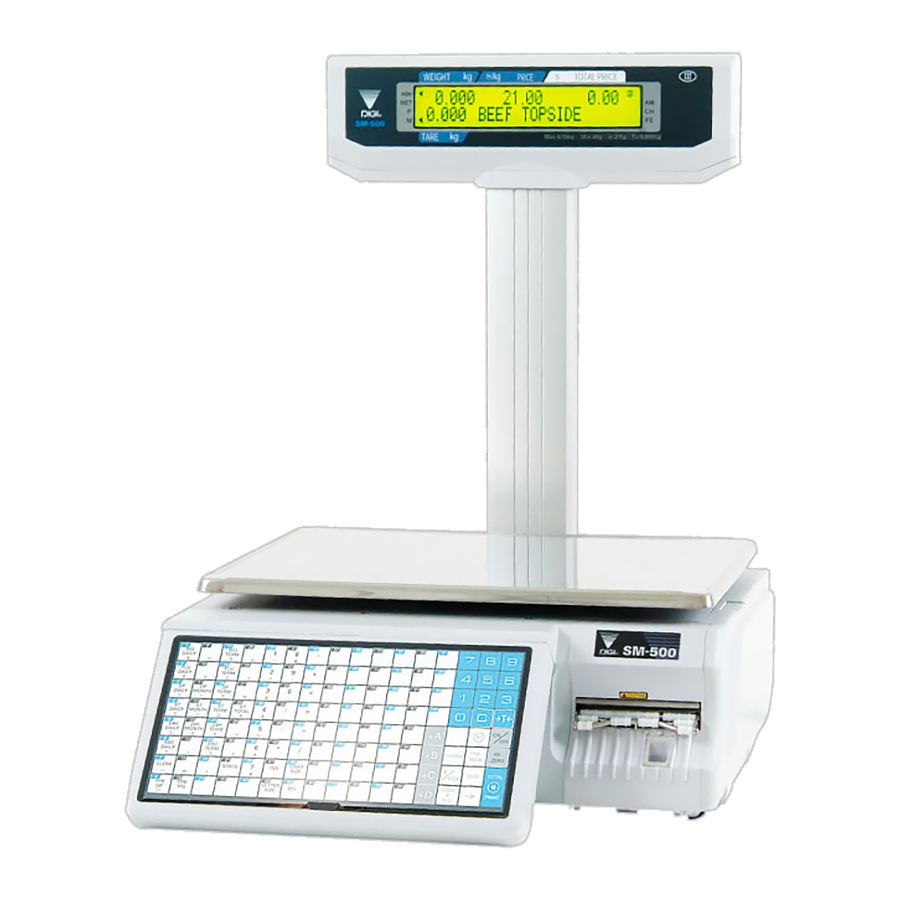

Digital computing printing scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com
SERVICE MANUAL
DIGITAL COMPUTING PRINTING SCALE
SM-500MK4
Edition 1
COPYRIGHT © 2006 TERAOKA WEIGH-SYSTEM PTE LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-500MK4 DP and is the answer not in the manual?

Questions and answers

Related Manuals for Digi SM-500MK4 DP

Summary of Contents for Digi SM-500MK4 DP

  • Page 1 All manuals and user guides at all-guides.com SERVICE MANUAL DIGITAL COMPUTING PRINTING SCALE SM-500MK4 Edition 1 COPYRIGHT © 2006 TERAOKA WEIGH-SYSTEM PTE LTD...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Content Notice 1 Safety Information ..........................2 GENERAL ..............................3 Model Specification ..........................3 Operating Specification ........................4 Type of Interface ..........................4 Main Components ..........................4 OVERVIEW ..............................5 Dimension ............................5 2.1.1 Pole ............................5 2.1.2 Touch Screen Pole.......................5 2.1.3 Bench ...........................6 Key sheet Layout ..........................7...
  • Page 3 All manuals and user guides at all-guides.com 5.2.1 Location of Gap Sensor And Peel Sensor................25 5.2.2 Label Gap Sensor .......................25 5.2.3 Peel Sensor.........................26 5.2.4 Printing Position ........................27 Maintenance.............................28 5.3.1 Thermal Head Cleaning ......................28 5.3.2 Basic Maintenance......................29 5.3.3 Thermal Head cleaning and replacement ................30 Method of Assembly Sealing Screw &...

  • Page 4: I) Notice

    All manuals and user guides at all-guides.com i) Notice DIGI ® The material contained in this document is proprietary and for information only and is subject to change without notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from misinterpretation of any procedure.

  • Page 5: Ii) Safety Information

    All manuals and user guides at all-guides.com ii) Safety Information The operator of the equipment shall comply with the safety and warning indications and procedures outlined in this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with these requirements.

  • Page 6: General

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 1. GENERAL 1.1 Model Specification Model SM-500MK4 Variation Dual Pole SM-500MK4 DP Economic Bench SM-500MK4 EB Elevated SM-500MK4 EV Capacity 6/ 15/ 30 Kg Mechanical Switch Number Of Preset Key...

  • Page 7: Operating Specification

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 1.2 Operating Specification Power Source 100V to 240V AC (Auto Switching) Frequency 50 - 60 Hz Operating Temperature -10 °C to 40 °C Humidity 15 % to 85 % RH Waterproof N.A.

  • Page 8: Overview

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 2. OVERVIEW 2.1 Dimension Dimensions are in mm 2.1.1 Pole 2.1.2 Touch Screen Pole...

  • Page 9: Bench

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 2.1.3 Bench...

  • Page 10: Key Sheet Layout

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 2.2 Key sheet Layout 32 Preset Keys 56 Preset Keys 100 Preset Keys...
  • Page 11 All manuals and user guides at all-guides.com SM500MK4 Service Manual ON / OFF KEY * Turn display ON or OFF. NUMERIC KEYS * Enter numeric data. TARE KEY * Set or Clear Tare Value. * Select " NO " in S and Z Mode. * Item Test print in S Mode.
  • Page 12 All manuals and user guides at all-guides.com SM500MK4 Service Manual VOID KEY * Correct the Sales Data PLU KEY * Call up PLU data. * Store the programmed data in S mode. FEED KEY * Feed Label or Receipt PRINT KEY * Print out Label or Receipt MODE SELECT KEY * Five Modes can be selected using this key.

  • Page 13: Panel Layout

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 2.3 Panel Layout Bench and Pole Type (For 300 LCD) There are fifteen different indicators on Display Panel as shown below. Lights when scale is stable at the zero point Lights when tare subtraction in performed.

  • Page 14: Span Switch

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 3. SPAN SWITCH 3.1 Span Switch Jumper Setting Changing Procedure Interface Board Cable 1. Bottom View of Machine. 2. Loosen the 4pcs SEMS B 3. Loosen the 2pcs Truss Head screw M4X6, then open the screw M4X6, and disconnect Bottom Cover.

  • Page 15: Initial Setup

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 4. INITIAL SETUP 4.1 Scale Assembly 4.1.1 Display Pole Kit Mounting 1. Place the display Pole inside the pole bottom (base AB) 2. Align the four holes of the display pole and tighten screw Flat Head M4x16 4.1.2 Level Adjustment...
  • Page 16 All manuals and user guides at all-guides.com SM500MK4 Service Manual KEY TO PRESS OPERATION -- Select scale type. Scale Type: 0: Pole 6 Kg 1: Pole 15 Kg -- Select scale type. 2: Pole 30 Kg & 3: Pole 30 Lb 4.
  • Page 17 All manuals and user guides at all-guides.com SM500MK4 Service Manual Key to press Operation -- Process of initialize. If Yes -- Then go to segment check. PLEASE WAIT Key to press Operation -- Go to segment check. If No 4.2.1.2 Default Country Specification 1 Key to press Operation -- Show current country SPEC then default...
  • Page 18 All manuals and user guides at all-guides.com SM500MK4 Service Manual Key to press Operation -- Reading Country Specification. Key to press Operation -- After Reading Country Spec, the display will prompt MEMORY CLEAR message. Key to press Operation -- Process of initialize. If Yes -- Then go to segment check.

  • Page 19: Calibration

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 4.3 Calibration Key to press Operation -- Go to Z mode In the Weighing Mode, press then turn On the Span Switch. KEY TO PRESS OPERATION -- Access code to calibration mode. [8][7][1][5] KEY TO PRESS OPERATION...

  • Page 20: User Spec Setup Procedure

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 4.4 User Spec Setup Procedure To Change the setting of the User SPEC, if there is some SPEC need to alter. KEY TO PRESS OPERATION -- Go to Z mode. In the Weighing Mode, press then turn On the Span Switch.
  • Page 21 All manuals and user guides at all-guides.com SM500MK4 Service Manual KEY TO PRESS OPERATION -- Decrease the SPEC number without saving data of the previous SPEC number. KEY TO PRESS OPERATION -- To jump to desire SPEC number. [1][0] KEY TO PRESS OPERATION Save SPEC setting and Exit to R mode.

  • Page 22: Weigh & Measurement Spec Setup Procedure

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 4.5 Weigh & Measurement Spec Setup Procedure To Change the setting of the Weight & Measurement SPEC, if there is some SPEC need to alter. KEY TO PRESS OPERATION -- Go to Z mode In the Weighing Mode, press then turn On the Span Switch.
  • Page 23 All manuals and user guides at all-guides.com SM500MK4 Service Manual KEY TO PRESS OPERATION -- Decrease the SPEC number without saving data of the previous SPEC number. KEY TO PRESS OPERATION -- To jump to desire SPEC number. [6][1][0] KEY TO PRESS OPERATION Save SPEC setting and Exit to R mode.

  • Page 24: Hardware Testing & Maintenance

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5. HARDWARE TESTING & MAINTENANCE 5.1 Hardware Testing KEY TO PRESS OPERATION -- Go to Z mode In the Weighing Mode, press 5.1.1 RAM Read and Write Test KEY TO PRESS OPERATION -- Go to Hardware Testing Mode and first it will show [0] [0] [1]...

  • Page 25: Sio Loop Back Test

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.1.2 SIO Loop Back Test KEY TO PRESS OPERATION -- Testing the RS232 port. -- Please plug in the connector on the RS232C port before proceed. (The test result is show at below). 5.1.3 RS485 Loop Back Test KEY TO PRESS...

  • Page 26: Rom Checksum Test

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.1.5 ROM Checksum Test KEY TO PRESS OPERATION -- Testing the ROM Checksum. -- Press the [PRINT] Key to start the testing. After that FF5A5B 5.1.6 PLU Generator Test KEY TO PRESS OPERATION -- Testing the PLU Generator.

  • Page 27: Internal Count

    All manuals and user guides at all-guides.com SM500MK4 Service Manual KEY TO PRESS OPERATION -- Exit to Z mode. Remarks: TEST JIG CONNECTOR for SIO Port TEST JIG CONNECTOR for 4 LINE RS485 Port Connect pin 4 and pin 5 Connect pin 1 and pin 3 Connect pin 2 and pin 4 5.1.7...

  • Page 28: Span Switch Status

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.1.8 Span Switch Status KEY TO PRESS OPERATION -- Go to Z mode. -- Then turn on the Span Switch. In the Weighing Mode, press KEY TO PRESS OPERATION -- Indicates SPAN Switch status. [2][8][4] -- Back to Z mode, after 1 second.

  • Page 29: Peel Sensor

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.2.3 Peel Sensor To set the peel sensor voltage if the peel sensor is not working normally in some situations like temperature and humidity changed. The peel sensor voltage can be set automatically by press the # key. KEY TO PRESS OPERATION -- At R mode.

  • Page 30: Printing Position

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.2.4 Printing Position To adjust the printing position when printing is out of alignment. The process only allows adjusting vertical position only. KEY TO PRESS OPERATION -- At R mode. KEY TO PRESS OPERATION -- Go to Thermal Head calibration.

  • Page 31: Maintenance

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.3 Maintenance 5.3.1 Thermal Head Cleaning To maintain good quality printouts and long life span for the thermal print head, regular cleaning of the thermal print head is required. Please use the cleaning kit supplied with the product. Instruction 1.

  • Page 32: Basic Maintenance

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 4. Use the tip of the Cleaning Tool to clean the Thermal Head portion as shown: Thermal Head Cleaning Tool CAUTION Use only the cleaning pen from the provided cleaning kit Do not clean or try to remove dirt or anything sticking on thermal head with sharp objects –...

  • Page 33: Thermal Head Cleaning And Replacement

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.3.3 Thermal Head cleaning and replacement Printer Head Handle Printer Front Printer Side Door Door 1. Open the Printer Side Door. 2. Press on the top of Printer 3. Push the Printer Head Handle to Front Door and pull out the cover up for Printer Head in upper toward in front.

  • Page 34: Method Of Assembly Sealing Screw & Sticker

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.4 Method of Assembly Sealing Screw & Sticker 5.4.1 All Machine except Console Type SM500MK4 SEALING METHOD (ALL VARIANT MODELS)
  • Page 35 All manuals and user guides at all-guides.com SM500MK4 Service Manual 5.4.2 For only Console Type SM500MK4 WITH EXTERNAL SM500MK4 WITH EXTERNAL LOADCELL SEALING METHOD LOADCELL SEALING METHOD (ALL VARIANT MODELS) (ALL VARIANT MODELS)

  • Page 36: Disassembly

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 6. DISASSEMBLY Pole Type Disassembly crew Type : 101- Flat Head M4X16 (4pcs) 102- Sems B M4X10 (4pcs) 103- Flat Head M3X5 (3pcs) 104- Truss Head M4X6 (2pcs)
  • Page 37 All manuals and user guides at all-guides.com SM500MK4 Service Manual 112 112 Screw Type : 105- Sems B M4X8 (2pcs) 106- Sems B M3X8 (2pcs) 107- Flat Head M4X16 (1pcs) 108- Truss Head M4X16 (4pcs) 109- Sems B M4X6 (2pcs) 110- Sems B M3X6 (4pcs) 111- Binding Head M3X8 (2pcs) 112- Allen Cap M6X20 (4pcs)
  • Page 38 All manuals and user guides at all-guides.com SM500MK4 Service Manual Ground Wire Screw Type : 113- Sems B M4X8 (2pcs) 114- Sems B M4X6 (4pcs) 115- Sems B M4X12 (3pcs)

  • Page 39: Ad Board Disassembly

    All manuals and user guides at all-guides.com SM500MK4 Service Manual AD Board Disassembly Loadcell wire color indication Green Blue White Black Screw Type : 101- Sems B M3X6 (2pcs) To remove the AD Board, solder out the Loadcell wire and then unscrew the 2pcs Sems B M3X6 screw.

  • Page 40: Loadcell Disassembly

    All manuals and user guides at all-guides.com SM500MK4 Service Manual Loadcell Disassembly Support AA Loadcell Screw Type : 101- Allen Cap M4X20 To remove the Support AA from Loadcell, unscrew the 2pcs Allen Cap screw M4X20 from Top. To remove the Loadcell from Base Diecast, unscrew the 2pcs Allen Cap screw M4X20 from Bottom.

  • Page 41: Extra Bracket Disassembly For 30Kg

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 6.4 Extra Bracket Disassembly for 30Kg Screw Type: 101- M4 X 12 Sems B 1. To assembly the Bracket EE (30KG, Base Top) tighten 1pcs Sems B screw M4x12 from Top. 2.

  • Page 42: Firmware Upgrade

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 7. FIRMWARE UPGRADE Boot loader Downloading The software use for Boot loader downloading to scale is Flash Development Toolkit 3.1. 1. PC to scale via RS232C interface. RS232 Cable 1) Double click open the [Flash Development Toolkit 3.1] software. 2) When Option icon appears, click the [Cancel].
  • Page 43 All manuals and user guides at all-guides.com SM500MK4 Service Manual 4) Click the [bootloader23MH.mot] file from the location where you put and then click the [Open]. 5) From the Option Menu select the [Device] [Configure Flash Project]. 6) Click the to select the device [H8/3024F].
  • Page 44 All manuals and user guides at all-guides.com SM500MK4 Service Manual 9) Click the 10) From the Option Menu select [Device] [Download Active File]. 11) After boot loader downloading finish, on the screen will shown [Main kernel download complete… Connection Complete]. Note: Ensure that after downloading completed, must change back the Mainboard [SW 1] jumper setting.

  • Page 45: Firmware Downloading

    All manuals and user guides at all-guides.com SM500MK4 Service Manual Firmware Downloading The software use for firmware downloading to scale is Hyper Terminal. 1. PC to scale via RS232C interface. 2. Plug in the Power Cord connect to Scale. (Don’t on the power first) RS232 Cable 1) From the Windows XP software, select Start All Programs...
  • Page 46 All manuals and user guides at all-guides.com SM500MK4 Service Manual 4) In the Hyper Terminal software to select [File] [Properties] to open the properties setting. 5) Go to Settings Option use the button to change the setting follow by below highlight as shown. Emulator: ANSIW Telnet terminal ID: VT100 Click the [OK] button to exit and go to downloading page.
  • Page 47 All manuals and user guides at all-guides.com SM500MK4 Service Manual a) After next step on the screen shown [Enter erase end address as a 32-bit hex value e.g. AABBCC]. b) Type in number & character [00beffff], it will shown the information of Confirm erase block (Y/N).
  • Page 48 All manuals and user guides at all-guides.com SM500MK4 Service Manual 12) Select the Software/File where the software/file allocate, and then click the [Open] button. 13) When the screen appear Send File page, click the [Send] button. Note: Ensure the [Protocol] option, using to select [1K Xmodem] 14) The downloading and upgrade the software needs to take time waiting around 15 minutes for process.

  • Page 49: Hardware Setting

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 8. HARDWARE SETTING 8.1 Main Board Jumper Setting Below is Main Board jumper setting for SM500MK4 using 300 LCD, If the jumper setting wrongly to set, the display will not function/working properly. Both LCD (Operator and Customer) are using 300LCD, then follow the below table Type of LCD 300LCD...
  • Page 50 All manuals and user guides at all-guides.com SM500MK4 Service Manual DEPARTMENT NOT EXIST No such Department data or number exists. TAX FILE NOT EXIST No such Tax data or number exists. CLERK NOT EXIST No such Clerk data or number exists. PLEASE PRESS PLU KEY Press PLU (#) key.

  • Page 51: Corresponding Key Of Ibm Keyboard

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 9.2 Corresponding Key of IBM Keyboard The IBM keyboard can directly connect to the SM500MK4 in the IBM keyboard port at the bottom of the scale. It can only function when in the S mode (Programming mode). And the IBM keyboard wire connector must using PS2 connector.

  • Page 52: Teraoka Code

    All manuals and user guides at all-guides.com SM500MK4 Service Manual REMARKS: The small letter only can print at label but cannot print at receipt. 9.4 TERAOKA Code The table shown below is the common use of characters of TERAOKA code in numerical value. Please enter the numerical value when entering commodity name, advertisement, shop name, clerk name, special message, ingredient, text etc.

  • Page 53: Cash Drawer Option (Rj11)

    All manuals and user guides at all-guides.com SM500MK4 Service Manual Cross Cable Connection Straight Cable Connection SCALE SCALE / HUB SCALE / HUB SIGNAL SIGNAL SIGNAL SIGNAL 5,7,8 N.A. N.A. 5,7,8 5,7,8 N.A. N.A. 5,7,8 9.5.2 Cash Drawer Option (RJ11) SM-500MK4 SCLAE SIDE (Interface Board) 4 5 6 1 2 3...

  • Page 54: Ps2 Keyboard Option

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 9.5.3 PS2 Keyboard Option PS2 IBM Keyboard Connector (Main Board Side) Signal DATA 9.5.4 RS232C and Multi-Drop (4 Line, RS485) Wire Connector Type 9 Pin D-Sub Connector 25 Pin D-Sub Connector Female (Back View) Female (Back View) 9 Pin D-Sub Connector...
  • Page 55 All manuals and user guides at all-guides.com SM500MK4 Service Manual PC (9 PIN) TO LCU 401 (FOR PC to LCU 401 communication) 9 Pin D-Sub (Female) 25 Pin D-Sub (Male) Signal Signal PC (25 PIN) TO LCU 401 (For PC to LCU 401 communication) 25 Pin D-Sub (Female) 25 Pin D-Sub (Male) Signal...
  • Page 56 All manuals and user guides at all-guides.com SM500MK4 Service Manual SCALE TO SCALE (For LCU 401 to scale and scale-to-scale communication) SM300 / SM80SX / SM90 / SM500 / SM500MK4 SM300 / SM80SX / SM90 / SM500 / SM500MK4 9 Pin D-Sub (Male) 9 Pin D-Sub (Male) Signal Signal...
  • Page 57 All manuals and user guides at all-guides.com SM500MK4 Service Manual PC (9 PIN) TO SCALE RS232C PORT (For PC and PC FL-1 communication) SM300 / SM80SX / SM90 / SM500 / SM500V2 / SM500MK4 RS232 Port 9 Pin D-Sub (Female) 8 Pin DIN plug (Male) Signal Signal...

  • Page 58: Appendix

    All manuals and user guides at all-guides.com 10. APPENDIX 10.1 Block Diagram 10.1.1 Bench Type...

  • Page 59: Touch Screen Pole Type

    All manuals and user guides at all-guides.com 10.1.2 Touch Screen Pole Type...

  • Page 60: Elevated Type

    All manuals and user guides at all-guides.com 10.1.3 Elevated Type...

  • Page 61: Specification List

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 10.2 Specification List 10.2.1 User Specification [REZERO] + [1][4][1] SPEC 0: SELECTION OF ITEM BARCODE 0: F1F2 CCCCC XCD XXXX (13 DIGIT NON-PLU) 1: F2 CCCCCC XCD XXXX (13 DIGIT NON-PLU) 2: F1F2 CCCCC O XXXX (13 DIGIT NON-PLU) 3: F1F2 CCCCCC XXXX CD (13 DIGIT NON-PLU)
  • Page 62 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 7: SELECTION OF TOTAL BARCODE 0: F1F2 CCCCC XCD XXXX (13 DIGIT NON-PLU) 1: F2 CCCCCC XCD XXXX (13 DIGIT NON-PLU) 2: F1F2 CCCCC O XXXX (13 DIGIT NON-PLU) 3: F1F2 CCCCCC XXXX CD (13 DIGIT NON-PLU) 4: F1F2 CCCCC XXXXX CD (13 DIGIT NON-PLU) 5: F2 CCCCCC XXXXX CD (13 DIGIT NON-PLU)
  • Page 63 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 15: SELECTION OF TURN OVER PRINTING FOR ADV MESSAGE 0: NO 1: YES SPEC 16: EXIT FROM ' CHANGE ' MODE WITHIN SPECIFIED INTERVAL 0: NO 1: 3 SECOND 2: 6 SECOND 3: 10 SECOND 4: 15 SECOND...
  • Page 64 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 25: SELECTION OF DEFAULT LABEL FORMAT FOR TOTAL PRINTING STANDARD U1,CA STANDARD U1,CA SPEC 26: SELECTION OF SHOP NAME PRINTING ON LABEL 0: NO PRINT 1: PRINT SPEC 27: FORCED TARE FUNCTION 0: DISABLE 1: ENABLE SPEC 28: SELECTION OF PEEL SENSOR FUNCTION IN PREPACK MODE...
  • Page 65 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 38: SELECTION OF RECEIPT PRINT DENSITY 0: LOW 1: MID 2: H. MID 3: HIGH SPEC 39: SELECTION OF PLU CALLING 0: MANUAL 1: AUTO 2: TIME-OUT SPEC 40: SELECTION OF PLU DIGITS FOR AUTO PLU TIME OUT CALLING 3 DIGITS/0.5 SEC 4 DIGITS/1.0 SEC 5 DIGITS/1.5 SEC...
  • Page 66 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 52: SELECTION OF DATA LENGTH ( SIO ) 0: 7 BIT 1: 8 BIT SPEC 53: SELECTION OF PARITY ( SIO ) 0: NONE 1: ODD 2: EVEN SPEC 54: SELECTION OF STOP BIT ( SIO ) 0: 1 BIT 1: 2 BIT SPEC 55: SELECTION OF BAUD RATES FOR MULTI-DROP SIO...
  • Page 67 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 65: REPORT PRINTING IN DAILY AND TERM TRANSACTION CLEAR 0: INHIBIT 1: ALLOW SPEC 66: PACK QUANTITY FUNCTION KEY ENABLE 0: ALLOW 1: INHIBIT SPEC 67: ADVERTISEMENT FUNCTION KEY ENABLE 0: ALLOW 1: INHIBIT SPEC 68: FIXED TOTAL PRICE DISCOUNT FUNCTION KEY ENABLE...
  • Page 68 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 81: PRINT SELECT FUNCTION KEY ENABLE 0: ALLOW 1: INHIBIT SPEC 82: PRINT OF PLACE OF PRODUCTION ON LABEL 0: INHIBIT 1: ALLOW SPEC 83: SELECTION OF MARKDOWN 0: NO MARKDOWN 1: UNIT PRICE MARKDOWN 2: TOTAL PRICE MARKDOWN 3: UNIT AND TOTAL PRICE MARKDOWN...
  • Page 69 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 96: SELECTION OF ADVERTISEMENT MESSAGE ON ALL LABELS 0: INHIBIT 1: ALLOW SPEC 97: SELECTION OF MANUAL PRINT IN PREPACK MODE FOR WEIGH ITEM 0: INHIBIT 1: ALLOW SPEC 98: SELECTION OF QUANTITY AND UNIT PRINTOUT FOR NON-WEIGH ITEM IN MANUAL MODE 0: ALLOW 1: INHIBIT SPEC 99: SELECTION OF UNIT PRINTOUT FOR NON-WEIGH ITEM IN MANUAL MODE...
  • Page 70 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 111: SELECTION OF PRICE SYMBOL ON RECEIPT (FOR AA ONLY) 0: NO PRINT 1: KANJI YEN 2: YEN SPEC 112: DEFAULT DATA OF PRINTING SPECIAL MESSAGE NUMBER FOR RECEIPT (0 - 16) SPEC 113: SELECTION OF LABEL LOGO PRINTING STATUS 0: NO PRINT...
  • Page 71 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 125: POSITION OF SPECIAL MESSAGE ON RECEIPT 0: BOTTOM OF RECEIPT 1: TOP OF RECEIPT SPEC 126: SELECTION OF FUNCTION KEYS PROTECTION FOR DENMARK SELF -SERVICE 0: NO PROTECTION 1: PROTECTION 2: PARTIAL PROTECTION SPEC 127: SELECTION OF PRINTING OF CHECKSUM FOR ITEM BARCODE...
  • Page 72 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 141: SELECTION OF YEAR FORMAT 0: YY 1: YYYY SPEC 142: SELECTION OF DAY DISPLAY FOR SELL-BY-DATE 0: DISABLE 1: ENABLE SPEC 143: PEEL SENSOR TRIGGER VOLTAGE 0: HIGH 1: LOW SPEC 144: DISPLAY PREPACKS QUANTITY BALANCE 0: ENABLE...
  • Page 73 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 157: TRAINING MODE 0: DISABLE 1: ENABLE SPEC 158: FSD PRICE AND IMAGES 0: DISABLE 1: ENABLE SPEC 159: ½ AND ¼ KEY ENABLE 0: DISABLE 1: ENABLE SPEC 160: TWISTED PAIR CABLE FOR ETHERNET 0: SHIELDED 1: UNSHIELDED SPEC 161: DISCOUNT LABEL FORMAT (SWEDEN)
  • Page 74 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 173: MASK 7 SEGMENT DISPLAY IN X, S, and Z MODE 0: NO 1: YES SPEC 174: FIXED CLERK ASSIGN TO PRESET KEYS 8/ 16/ 24/ 32 (BENCH TYPE ONLY) 0: CLERK KEYS 1: FUNCTION KEYS SPEC 175: 30LB →...
  • Page 75 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 189: PLU AUTO DELETE 0: NO DELETE 1: 15 DAYS 2: 30 DAYS 3: 90 DAYS SPEC 190: SWAP WEIGHT AND UNIT PRICE ON RECEIPT 0: NO 1: YES SPEC 191: DEFAULT ITEM CODE EQUALS TO PLU NUMBER 0: NO 1: YES...
  • Page 76 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 204: REFERENCE PLU FUNCTION KEY ENABLE 0: DISABLE 1: ENABLE SPEC 205: PRINT FUNCTION KEY ENABLE 0: DISABLE 1: ENABLE SPEC 206: PRINT BARCODE WHEN RIGHT SIDE WEIGHT DATA OVERFLOW 0: NO PRINT 1: PRINT BARCODE DIGITS SPEC 207: SELECTION OF WEIGHT DECIMAL POINT POSITION FOR BARCODE AND LABEL PRINTING...
  • Page 77 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 218: ZERO UNIT PRICE FOR UNIT PRICE CHANGE FUNCTION KEY 0: DISABLE 1: ENABLE SPEC 219: NUMERIC KEY ENTRY RESET (AA) 0: 3 SECONDS 1: 5 SECONDS 2: DISABLE SPEC 220: ITEM BARCODE RIGHT SIDE DATA DEPENDENT ON UNIT 0: DISABLE 1: ENABLE...
  • Page 78 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 234: SUB-TOTAL AND GRAND TOTAL BARCODE 0: BASED ON ITEM BARCODE 1: BASED ON TOTAL BARCODE SPEC 235: MASK BARCODE LAST HUMAN READABLE CHECK DIGIT 0: NO 1: YES SPEC 236: CHARACTER GENERATOR FOR KOREA 0: OLD 1: NEW...
  • Page 79 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 249: PRINT USED BY DATE 0: MANUAL AND PREPACK MODE 1: MANUAL MODE 2: PREPACK MODE 3: NO PRINT SPEC 250: CENTERING SHOP NAME ON LABEL 0: NO CENTERING 1: CENTERING SPEC 251: SHOP NAME ON RECEIPT 0: TOP...
  • Page 80 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 263: FSD NET VALUE MINIMUM 0: OFF 1: ON SPEC 264: PRINT INGREDIENT DATA ON THE NEXT LABEL 0: DISABLE 1: ENABLE SPEC 265: CLIENT USING LOCAL FREE FORMAT LABEL 0: NO 1: YES SPEC 266 : FSD WEIGHT...
  • Page 81 All manuals and user guides at all-guides.com SM500MK4 Service Manual 4: 5 DAYS BUFFER 5: 6 DAYS BUFFER 6: 7 DAYS BUFFER UNLIMITED BUFFER SPEC 278: TRACEABILITY REPORT 0: DISABLE 4: BY REFERENCE NUMBER 5: BY PLU NUMBER 6: BY DATE & REF NUMBER 7: BY DATE &...
  • Page 82 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 293: SM200 POWER SAVE TIMEOUT 0: 3 MINUTES 1: 5 MINUTES 2: 10 MINUTES 3: 2 MINUTES SPEC 294: SM200 BATTERY OPTION 0: YES 1: NO SPEC 295: SM300 SCROLLING MSG UPDATE RATE 0: 6 LINE 1: 12 LINES SPEC 296: INGREDIENT FILE-SIZE EXPANSION...
  • Page 83 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 310: RSS14 BARCODE (AI 01 ONLY) 0: DISABLE 1: ENABLE SPEC 311: OPERATOR LOGGING FUNCTION 0: DISABLE 1: ENABLE SPEC 312: CLERK ID/ PASSWORD (KE ONLY) / CHANGED PASSWORD (STANDARD) 0: DISABLE 1: ENABLE SPEC 313: UPDATE LOG FILE...
  • Page 84 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 326: ON/OFF KEY 0: DISABLE 1: ENABLE SPEC 327: SM300 PRINT CONTROL 0: DISABLE 1: ENABLE SPEC 328: TU 9 DIG TOTAL PRICE 0: DISABLE 1: ENABLE SPEC 329: PLU TARE CALLS UP 0: ALLOW 1: INHIBIT SPEC 330: INDIVIDUAL SCALE STORE TOTAL REPORT...
  • Page 85 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 339: TRACEABILITY NO C/D CHECK 0: NO 1: YES SPEC 340: ENFORCE SCAN 0: NO 1: YES SPEC 341: TVP2000 0: NOT SEND T10 1: SEND T10 LABEL FORMAT SPEC 342: LCD 1 LINE SCROLL 0: DISABLE 1: ENABLE...

  • Page 86: Weigh & Measure Specification [Rezero] + [1][4][2]

    All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 355: CALL PLU FROM PC 0: DISABLE 1: ENABLE SPEC 356: EXPAND RECORD # FOR IMAGE 0: DISABLE 1: ENABLE SPEC 357: MULTI BARCODE FOR ITEM & TOTAL LBL 0: DISABLE 1: ENABLE SPEC 358: AUTO PRINT PER PLU...
  • Page 87 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 605: SELECTION OF MANUAL SCALE START 0: AUTO START 1: MANUAL START SPEC 606: SELECTION OF ZERO LAMP LIGHTING POSITION 0: LIGHT ON AT GROSS ZERO ± 1 / 4 DIGIT 1: LIGHT ON AT NET ZERO ±1/4 DIGIT SPEC 607: SELECTION OF DECIMAL POINT POSITION FOR WEIGHT 0: NONE...
  • Page 88 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 617: NEW AD 0: NO 1: YES SPEC 618: SELECTION OF NET / GROSS DUAL RANGE 0: GROSS DUAL RANGE METHOD 1: NET DUAL RANGE METHOD SPEC 619: SELECTION OF PLU WEIGHT ITEM COMMODITY NAME DISPLAY (BENCH TYPE) 0: FULL DISPLAY 1: HALF DISPLAY 2: NO DISPLAY...
  • Page 89 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 632: SELECTION OF TARE VALUE EXCHANGE 0: ALLOW 1: INHIBIT SPEC 633: SELECTION OF AUTO CLEAR OF TARE 0: INHIBIT 1: ALLOW SPEC 634: SELECTION OF AUTO TARE CLEARS WHEN REZERO 0: INHIBIT 1: ALLOW SPEC 635: SELECTION OF TRIGGER POINT OF TARE / UNIT PRICE AUTO CLEAR...
  • Page 90 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 646: SELECTION OF WEIGHT RANGE FOR PREPACK 0: OVER NET 5d & OVER GROSS 21d & WEIGHT STABILITY 1: OVER NET 1d AND WEIGHT STABILITY 2: OVER NET 19d AND WEIGHT STABILITY 3: OVER NET 20d AND WEIGHT STABILITY SPEC 647: SELECTION OF PLU TARE 0: ALLOW...
  • Page 91 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 661: SELECTION OF ADDITIONAL PRICE ROUNDING METHOD FOR TOTAL 0: NO ADDITIONAL ROUNDING 1: 1 / 4 ROUNDING 2: SPECIAL ROUNDING 3: ROUNDING FOR 1 ST DIGIT 4: CUT OFF 5: CUT UP 6: Υ5 CUT OFF AND Υ10 CUT OFF 7: DENMARK ROUNDING...
  • Page 92 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 674: SELECTION OF MASKING LAST DIGIT OVER 15LB 0: NO 1: YES SPEC 675: AUTO ZERO ADJUSTMENT RANGE 0: ± 5d 1: 2% OF CAPACITY SPEC 676: SELECTION OF RIGHT SIDE BARCODE DATA RIGHT SHIFT FOR ITEM AND TOTAL BARCODE 0: NO RIGHT SHIFT 1: RIGHT SHIFT...
  • Page 93 All manuals and user guides at all-guides.com SM500MK4 Service Manual SPEC 687: PROPORTIONAL TARE 0: NO 1: YES SPEC 688: SM500 SELF-SERVICE 0: NO 1: YES SPEC 689: CONSECUTIVE COMMODITY NAME DISPLAY INTERVAL 0: 1 SEC 1: 2 SEC 2: 4 SEC 3: 6 SEC SPEC 690: TEST PROGRAM 0: DISABLE...

  • Page 94: Weigh & Measure Specification [Rezero] + [1][4][1] (For Sm90Ts, Sm500Ts And Sm500Mk4Ts)

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 10.2.3 Weigh & Measure Specification [REZERO] + [1][4][1] (For SM90TS, SM500TS and SM500MK4TS) SPEC 195: NUMBER OF CHARACTER PAGES 0: 3 PAGES 1: 4 PAGES 2: 5 PAGES 3: 6 PAGES SPEC 258: SLT PRESET NAME PROGRAMMING 0: PLU PROGRAMMING 1: KEY ASSIGNMENT...

  • Page 95: Revision Records

    All manuals and user guides at all-guides.com SM500MK4 Service Manual 11. REVISION RECORDS REVISION RECORDS Rev. Serial Software Date Description of Changes Remarks Statu Version Aug ‘06 V29.246 Edition 1...
