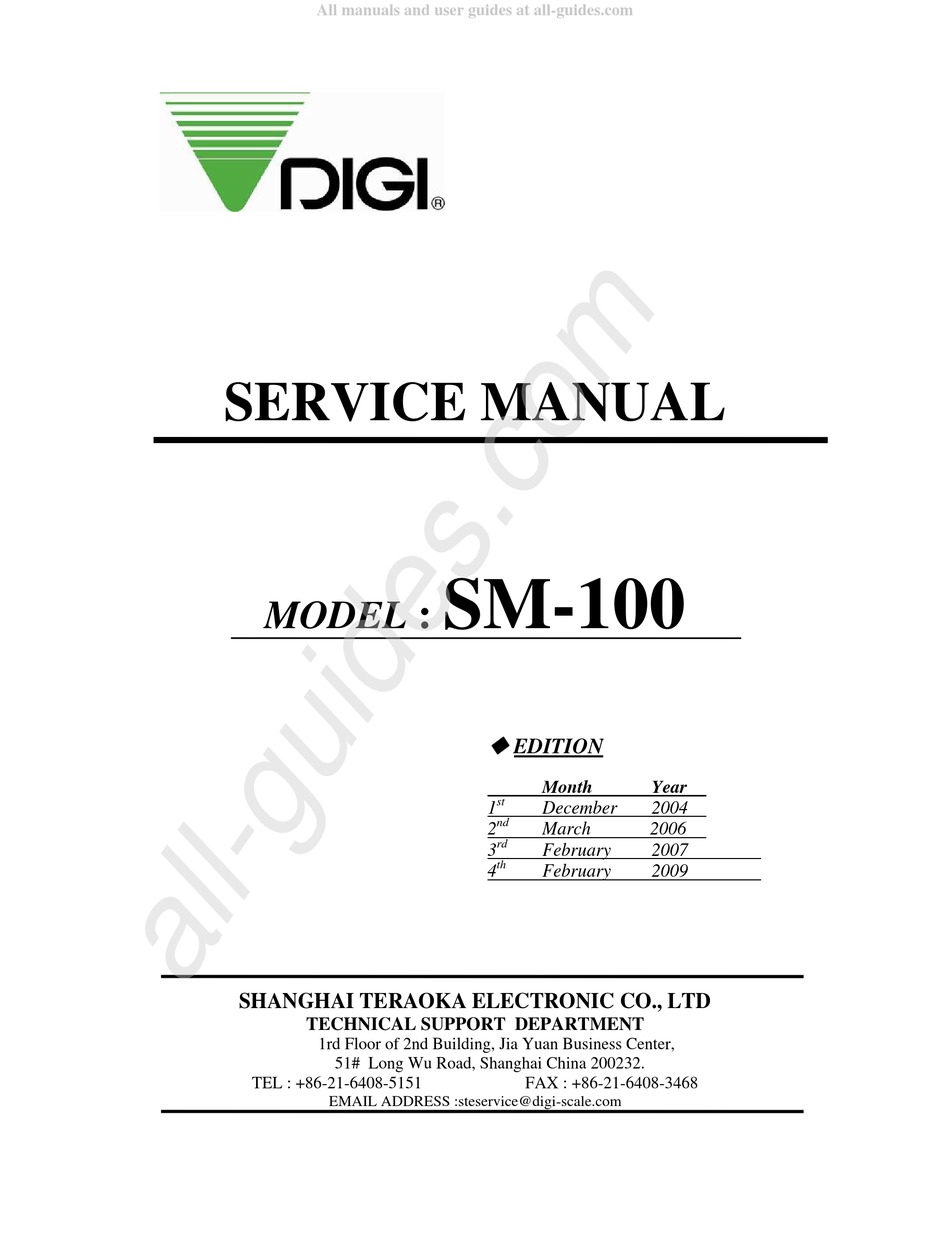

SERVICE MANUAL
MODEL
SHANGHAI TERAOKA ELECTRONIC CO., LTD
TECHNICAL SUPPORT DEPARTMENT
1rd Floor of 2nd Building, Jia Yuan Business Center,
51# Long Wu Road, Shanghai China 200232.
TEL : +86-21-6408-5151
EMAIL ADDRESS :steservice@digi-scale.com
SM-100
:
Æ
EDITION
Month
st
1
December
nd
2
March
rd
3
February
th
4
February
FAX : +86-21-6408-3468
Year
2004
2006
2007
2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-100 and is the answer not in the manual?

Questions and answers

Ajith
April 7, 2025

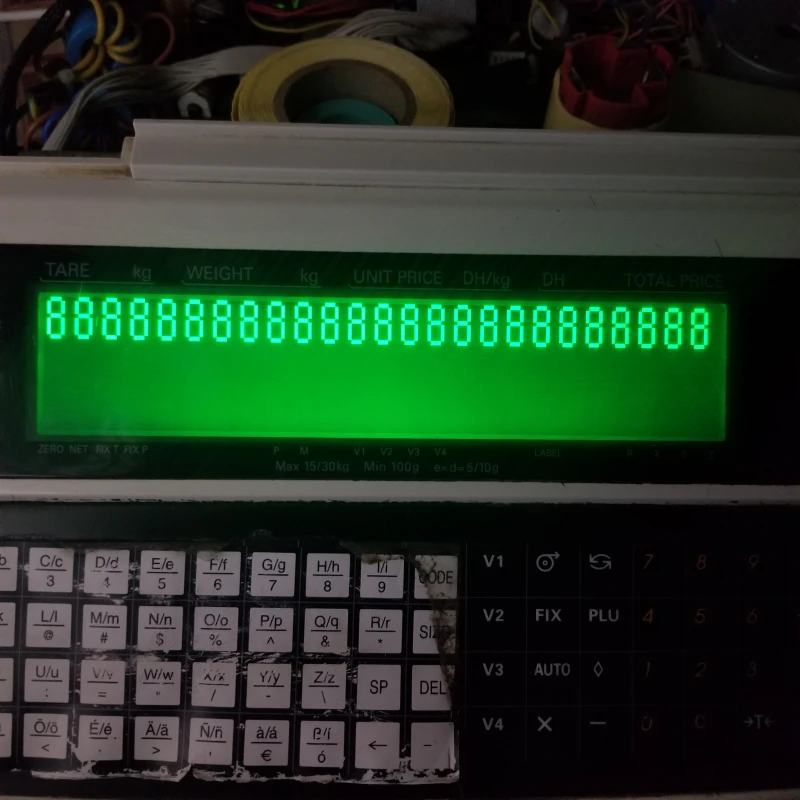

Display shows 24 zeros, no weighing scale readings

User image 67f3b5a89b6a8
0
1 comments:
Mr. Anderson
April 9, 2025

The Digi SM-100 may display 24 zeros and not provide weighing scale readings if the span switch is not enabled. The span switch must be enabled to access weight and measurement specifications, which are necessary for proper scale operation. If it is disabled, the scale may not function correctly.

This answer is automatically generated

0
محمد قديري
February 21, 2025

عند مشكل في اضافة منتج توقف الميزان عند عدد150 اريد زيادة منتجات اخري هل من مساعدة

0
1 comments:
Mr. Anderson
May 14, 2025

To add more products to the Digi SM-100 scale when it is stuck at 150, you need to delete unnecessary PLU (Product Look-Up) data to free up memory. The message "16 FILE MEMORY FULL" indicates that the memory is full. Deleting unused or unnecessary PLUs will allow space for new product entries.

This answer is automatically generated

0
Marie
April 16, 2025

Comment ajuster la date et l'heure sur la balance SM-100?

0

Related Manuals for Digi SM-100

Summary of Contents for Digi SM-100

  • Page 1 2004 March 2006 February 2007 February 2009 SHANGHAI TERAOKA ELECTRONIC CO., LTD TECHNICAL SUPPORT DEPARTMENT 1rd Floor of 2nd Building, Jia Yuan Business Center, 51# Long Wu Road, Shanghai China 200232. TEL : +86-21-6408-5151 FAX : +86-21-6408-3468 EMAIL ADDRESS :steservice@digi-scale.com...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Content 1. GENERAL INFORMATION ................ 1 1.1 Overall View ..............................1 1.2 Display Panel ..............................3 1.3 Key Panel ................................3 1.4 Thermal Printer Head ..........................9 1.5 Features ................................10 1.6 Specification ..............................

  • Page 3: General Information

    All manuals and user guides at all-guides.com 4. Software Setting ....................... 20 4.1 Software Version Upgrade ......................20 4.2 Specification Setting ..........................32 5. Adjustment ........................34 5.1. Peer Sensor Voltage and Label Sensor Sensitivity Adjustment ....34 5.2. Adjustment of Printing Position ....................
  • Page 4 All manuals and user guides at all-guides.com 7.6. SERVER IP ADDRESS ........................47 7.7. SUBNET MASK ............................ 47 7.8. MAC ADDRESS ............................ 48 7.9. SERIAL NO ............................... 48 8.0. ASCII CHARACTER ........................49 8. Appendix ........................... A. SpecificationList_V200 B. FlexibleL Barcode Setting Guide C.

  • Page 5: Overall View

    All manuals and user guides at all-guides.com SM 100 GENERAL GENERAL 1.1 OVERALL VIEW ” Bench Type ” Pole Type ” Elevated Type...
  • Page 6 All manuals and user guides at all-guides.com SM 100 GENERAL ” Bench-CS Type ” Pole-CS Type ” Hand Type...

  • Page 7: Display Panel

    All manuals and user guides at all-guides.com SM 100 GENERAL 1.2 DISPLAY PANEL ” 25 digits 19 segments TN type LCD ” 202 full dot Matrix Green LCD KEY PANEL ” Preset Keys Type ------ B/P 32 Preset keys: 40Preset Keys:...
  • Page 8 All manuals and user guides at all-guides.com SM 100 GENERAL ” 56 Preset Keys Type ------ PCS(New), PCS+ (New) ” 74 Preset Keys Type ------ EV, PCS(Old) ” 76 Preset Keys Type (Hanging)
  • Page 9 All manuals and user guides at all-guides.com SM 100 GENERAL ON/OFF KEY ¬ Turn display "ON" or "OFF". PRESET KEY P1 ~ P40 (B/P) P1 ~ P74 (EV) ¬ Set up or call either unit price and tare value. P1~P32(BCS) P1~P56(PCS) P1~P76(H) NUMERIC KEYS...
  • Page 10 All manuals and user guides at all-guides.com SM 100 GENERAL MULTIPLLE KEY ¬ Register the number of Non-Weight products. ¬ Select programming item such as PLU data, Shop Name in S Mode. ¬ Select Report Type in X Mode. ¬ Select Data Transaction Type in Z Mode. CLERK KEY V1~V4 ¬...

  • Page 11: Thermal Printer Head

    All manuals and user guides at all-guides.com SM 100 GENERAL MODE SELECT KEY ¬ Five Modes can be selected using this key. Indicator R - REGISTRATION MODE (All the sales transactions are performed.) Indicator X - CHECK MODE (Printing out and sales report.) Indicator S - PROGRAM MODE (Programming preset data, such as products, data, shop name, etc.) Indicator Z - TOTAL MODE (Clear sales data stored.)

  • Page 12: Features

    „ Calibrating by software. „ Customer and operator display (optional customer pole display). SM-100: 25 digits x 19 segments TN type LCD with back-light for numeric digit and character display. SM-100+: 32 x 202 full dot Martix Green LCD display.

  • Page 13: Specification

    All manuals and user guides at all-guides.com SM 100 GENERAL SPECIFICATION 1.6.1 Display SM-100 25 digits 19 segment TN type LCD with back-light for numeric digit and character display. „ Tare weight display : 4 digits. „ Weight display : 5 digits.

  • Page 14: Label Type

    All manuals and user guides at all-guides.com SM 100 GENERAL LABEL TYPE The label diameter range is from 40 to 105 mm. Note: Labels must be winding outwards (on top backing paper) and not inwards (under backing paper) within the core (see diagram above).

  • Page 15: Initial Setup

    All manuals and user guides at all-guides.com SM 100 INITIAL SETUP INITIAL SETUP SETUP Ü Indication of Assemble...
  • Page 16 All manuals and user guides at all-guides.com SM 100 INITIAL SETUP Ü Bubble Adjustment Bubble Place the scale on the flat surface and adjust the four legs until the bubble on the level is in the centre as shown above.

  • Page 17: Location Of Switches And Connectors

    All manuals and user guides at all-guides.com SM 100 INITIAL SETUP 2.2 LOCATION OF SWITCHES AND CONNECTORS Power Switch Cash Drawer Port Fuse Holder RS232 Port Ethernet Port Span Switch MEMORY INITIALISATION To clear all memory. DISPLAY OPERATION REMARK Z mode. Z1.0 RESET SALES...

  • Page 18: Default Specification Setting

    SALES DAILY Return to Z mode. Note 1: For the first using of SM-100,Please take this operation for initialization. Enter a number that represent a country in the country list (refer to the table below) to Note 2: initialise and country set.
  • Page 19 All manuals and user guides at all-guides.com SM 100 INITIAL SETUP COUNTRY LIST No. Country Code Country No. Country Code Country Japan Saudi Arabs U.S.A. Iceland Standard Indonesia China Cuba Hong Kong Kenya Taiwan Israel Export Slovenia Korea Malaysia Australia And New Zealand Spain South Africa Venezuela...

  • Page 20: Calibration

    All manuals and user guides at all-guides.com SM100 CALIBRATION CALIBRATION Prior to Calibration, please refer that the specification indicating weight capacity, minimum graduation, and load cell sensitivity are correctly set. Caution: ” It can only work when SPAN SWITCH is on (ENABLE). Before Calibrating, please enter Z mode.

  • Page 21: Exit Calibration

    All manuals and user guides at all-guides.com SM100 CALIBRATION 3.2 EXIT CALIBRATION DISPLAY OPERATION REMARK SPAN SWITCH Press SPAN SWITCH Z1.0 RESET SALES DAILY on(ENABLE). Enter [8][7][1][5] while [Rezero]+[8][7][1][5] CAL 00 depressing [Rezero]. Escape to Z mode. Lamp Z Z1.0 RESET SALES DAILY...

  • Page 22: Software Setting

    SOFTWARE VERSION UPGRADE Æ Update Method Introduction SM-100 use flash RAM instead of EPROM for the main program storage of the scale. Before the boot program Version 1.10, we just have one method to update the scale’s software: PC to scale via RS232 interface.
  • Page 23 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING These two twisted cable obey the EIT/TIA 568 standard. T568B line series T568A line series Orange & White Green &White Orange Green Green &White Orange & White Blue Blue Blue &...
  • Page 24 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING 3) How to upload the scale by Mini Programmer? A. Select SM-100 and press “ok” B. Set the port Select “ethernet” and press “OK”...
  • Page 25 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING C. Download boot program and update the scale Select menu “File->Load File To Programmer Buffer” Open the source file of boot program (e.g. sm100bv100.hex) You can see a speed mode select window here. Select menu “Flash->Program”...
  • Page 26 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING After the transmission has completed, select menu “File->Clear Buffer”. Notice: 1.If the boot program of this version is already in the scale, you don’t need to upload it again, skip it and upload the main program. 2.If the scale is updated from 1.xx to 2.xx,firstly you must update the boot program of the version.
  • Page 27 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING E. Download word-stock file The steps of uploading the word-stock file is also like uploading the boot program file. The file you need to open is like Pic. 3 Pic.
  • Page 28 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING RS232C Method 4. Cable Connection 3 Pins are used for data transmission between PC and SM-100 9 Pin D-Sub Female Connectors for this cable: PC Serial Port SM-100 RS-232C 9 Pin D-Sub (Female)
  • Page 29 Ü If the boot version is older than 1.10, the scale will not display the choice. Then the Scale will display “PROGRAM”. You can’t stop it, unless you press Tare or On/Off Key. 2) Start Mini Programmer Select SM-100 and press “Ok” Set the Port: Select RS232 and press “OK”...
  • Page 30 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING Download the boot program and update the scale Select menu “File->Load File To Programmer Buffer” Open the source file of the boot program (e.g. sm100bv100.hex)
  • Page 31 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING Select menu “Flash->Program” Notice: The message “001 scale ready update” must be displayed on the scale before pressing the “run” button. After the transmission has completed, select menu “File->Clear Buffer”. Notice: If the boot program of this version is already in the scale, you don’t need to upload it again, skip it and upload the main program.
  • Page 32 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING Download main program file You must power off the scale and start the ethernet upload method again when you have finished a program uploading. The steps of uploading the main program file is also like uploading the boot program file.
  • Page 33 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING Pic. 4 Exit Mini Programmer...

  • Page 34: Specification Setting

    All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING SPECIFICATION SETTING Before Specification setting, please press the mode button to enter Z mode. The detail specification list , please see the appendix. 4.2.1 Customer SPEC Setting To change setting of the Customer SPEC if there are some SPEC setting in it need to be alter. DISPLAY OPERATION REMARK...
  • Page 35 All manuals and user guides at all-guides.com SM 100 SOFTWARE SETTING To change the setting of the Weight & Measurement SPEC if there are some SPEC need to alter. (Please turn on the span switch when using this process) DISPLAY OPERATION REMARK Press SPAN...

  • Page 36: Adjustment

    All manuals and user guides at all-guides.com SM100 ADJUSTMENT ADJUSTMENT PEEL SENSOR VOLTAGE AND LABEL SENSOR SENSITIVITY ADJUSTMENT Label Sensor LOCATION OF PEEL AND LABEL SENSOR...
  • Page 37 All manuals and user guides at all-guides.com SM100 ADJUSTMENT 5.1.1 Peel Sensor Voltage To set the peel sensor voltage if the peel sensor is not working normally in some situations like temperature and humidity change. DISPLAY OPERATION REMARK Z mode. Z1.0 RESET SALES...
  • Page 38 All manuals and user guides at all-guides.com SM100 ADJUSTMENT DISPLAY OPERATION REMARK Z mode. Z1.0 RESET SALES DAILY Lamp Z turns on. Enter [5][1][6] while depressing [Rezero]. /kg window displays [Rezero]+[5][1][6] label paper gap sensor voltage, window displays new setting value.

  • Page 39: Adjustment Of Printing Position

    All manuals and user guides at all-guides.com SM100 ADJUSTMENT ADJUSTMENT OF PRINTING POSITION This function is used to adjust the print position on label. DISPLAY OPERATION REMARK Z mode. Z1.0 RESET SALES DAILY Lamp Z turns on. Enter [5][1][4] while depressing [Rezero].

  • Page 40: Voltage Checkpoint

    All manuals and user guides at all-guides.com SM100 ADJUSTMENT VOLTAGE CHECKPOINT There are several voltage checkpoints on the PCB boards. Below are some reference voltage points that are commonly use. VOLTAGE POINT VOLTAGE PURPOSE 3.3 V Provide voltage for most of the IC 24 V Provide voltage mainly to the thermal head Provide backup voltage for the RAM IC...

  • Page 41: Interface

    All manuals and user guides at all-guides.com SM100 INTERFACE INTERFACE PC INTERFACE SM 100 can be connect to PC through Ethernet interface and RS232C. See below for the connection method. CONFIGURATION OF PC ETHERNET CARD Window version client driver Any Ethernet cards can be used for PC running the Window version client driver Windows 98 My Computer Control Panel...

  • Page 42: Scale Ethernet Address

    All manuals and user guides at all-guides.com SM100 INTERFACE Before setting the SPEC setting of the scale, please check below. SCALE ETHERNET ADDRESS The main board have a Scale Ethernet Address that is set during production. This address is a hardware setting for Ethernet communication.

  • Page 43: Scale Ip Address

    All manuals and user guides at all-guides.com SM100 INTERFACE This is to set the IP address for PC communication using Ethernet for specific IP address. It should not be confused with the Scale Ethernet Address as above. The Scale Ethernet Address is mainly for hardware and Scale IP Address is for software.

  • Page 44: Connection Method

    All manuals and user guides at all-guides.com SM100 INTERFACE CONNECTION METHOD 6.4.1 RS232C Interface with PC Scale Com 1 / Com 2 RS232C Port * Note : Only 1 scale can be connect in this method. SPEC setting on scale : SPEC 48 Scale number (For 4 line / RS232C port) Enter number between 1 to 999,999...
  • Page 45 All manuals and user guides at all-guides.com SM100 INTERFACE Scale #1 Scale #2 Scale #3 Scale #4 Scale #5 SPEC setting on scale : SPEC 49 CLIENT / SERVER INTERFACE No interface Not used Ethernet - Coaxial Cable 4 lines, RS485 (For future use) Ethernet - Twisted Cable SPEC 50 CLIENT / SERVER...

  • Page 46: Wire Configuration

    All manuals and user guides at all-guides.com SM100 INTERFACE WIRE CONFIGURATION 6.5.1 Ethernet Wire - Straight Cable and Crossover Cable Straight cable is for Client / Server connection. Crossover cable is for Hub to Hub connection. (Some models of the hub do not need crossover cable for hub to hub connection. Please refer to the hub operation manual if in doubt) Telephone Modular Plug (Category 5) - Preferable type :...
  • Page 47 Not used Not used Not used Not used Not used 6.5.3 Cash Drawer Connector SM-100 uses normal phone mike plug to connect cash drawer and the scale. 1 pin 1 pin 4 pin 4 pin Plug in the scale Connector of Cash Drawer...

  • Page 48: Miscellaneous

    All manuals and user guides at all-guides.com SM 100 MISCELLANEOUS MISCELLANEOUS MODE CHANGE To toggle between R, X, S, Z and Password mode. DISPLAY OPERATION REMARK 0.000 0.000 0.00 0.00 Weight mode.Lamp R turns on. [MODE],[MODE] Enter X mode.Lamp X turns on. XMODE (within 3 seconds) Enter S mode.Lamp S turns on.

  • Page 49: Thermal Head Usage

    All manuals and user guides at all-guides.com SM 100 MISCELLANEOUS To check how many time the thermal head had been printing. DISPLAY OPERATION REMARK Z mode. Go to Z mode Z1.0 RESET SALES DAILY Lamp Z turns on. Display thermal printer usage [Rezero]+[0][8][2][3] PRINTER USAGE...
  • Page 50 Press [T] key to exit. ASCII CHARACTER Below are the common use of characters of ASCII code in HEX value. Please enter the hex value when entering commodity name, advertisement, shop name, clerk name, special message, ingredient, text etc. when using the SM-100.
  • Page 51 All manuals and user guides at all-guides.com SM 100 MISCELLANEOUS " & < · Space >...
  • Page 52 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 TITLE SM-100 SPECIFICATION LIST REVISION NO. ISSUED DATE 17 August, 2004 Rev. Software Modification Details Version First Release 1.00 R&D Dept, SHANGHAI TERAOKA ELECTRONIC CO., LTD.
  • Page 53 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 CUSTOMER SPECIFICATION [REZERO] + [1][4][1] Item Barcode F1F2 CCCCC XCD XXXX CD F1X2 CCCCCC XXXX CD All are 13 digits non-PLU barcode unless...
  • Page 54 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Right Side Data of Total Barcode Quantity Weight Price Total Barcode Print on Receipt Print Readable Character of F1 for Item and Total Barcode...
  • Page 55 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Default Label Format for Total Printing Formats in ( ) are for U1 (T7) and CA only. (T8) (T9) F1 to F8 are Free...
  • Page 56 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Unit Price of Weigh PLU Can Use for Price of Non-weigh PLU and Vice Versa Effective when SPEC643 Allow Inhibit = 0.
  • Page 57 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Parity Bit of Multi-drop SIO (RS-485 / 4-Lines Port) None Even Stop Bit of Multi-drop SIO (RS-485 / 4-Lines Port) 1 Bit...
  • Page 58 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Quantity Set Function Key Enable Allow Inhibit Price Change Function Key Enable Allow Inhibit Refund Item Function Key Enable Allow Inhibit Shop Name Function Key Enable...
  • Page 59 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Receipt Printing with Dual Copy Inhibit Allow Advertisement Message on All Label Inhibit Allow Manual Print in Prepack Mode for Weigh Item...
  • Page 60 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Receipt Logo Printing Status No Print Logo 3 Logo 1 Logo 4 Logo 2 Logo 1, 2, 3 and 4 Logo 1 and 2...
  • Page 61 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Change All PLU Default Format when Default SPEC Change Host Communication No Operation Enable Host Communication RS-232C RS-485 Port Number Enter value from range 1 to 254...
  • Page 62 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Keysheet Letter Size For FL & AS only. Small Letter Capital Letter Test Print on Receipt No Print Print For SD only.
  • Page 63 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 30 lb to 15 kg Conversion For UK only. Disable Enable Discount Time on Daily Basis Weight Check Function Unit Price Override per PLU...
  • Page 64 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Weight Print for Non-weigh Item Scale File Disable Enable Print Format of Month Number 3 Alphabetic 2 Alphabetic FSD Saving Calculation Net Value Cent Off For U1 only.
  • Page 65 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Centering of Special Message JIS Code Table For AA only. Default Label Format 2 for Item Printing Not Used Zero Unit Price for Unit Price Change Function Key...
  • Page 66 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Sub-total and Grand Total Barcode Based on Item Barcode Based on Total Barcode Mask Barcode Last Human Readable Check Digit Character Generator for Korea For KE only.
  • Page 67 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Client Auto PLU Update Update / Delete Existing PLU Update All Server PLU Update / Delete All Sever PLU Disable Update Existing PLU...
  • Page 68 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Beef Reference Number Code Date Item Code Follow PLU Number Bench Key Pad Taiwan Receipt Printer For TW only. Disable Enable Apply for POS1 FLEX PP2000 srs.
  • Page 69 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Gap Value In-feed Operation Re-adjustable No Change SM-200 Power Save Back Light Off Power Off SM-200 Power Save Timeout 3 Min 10 Min...
  • Page 70 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Multi Barcode Type For AI 01 only. EAN128 CODE128 Operator Logging Function Disable Enable Price Change Password For CA only. Disable Enable...
  • Page 71 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Default ITF for Barcode Disable Enable ITEM Text (5-16) Print on Total Label Disable Enable Image at Top Receipt Enter range from 0 to 99...
  • Page 72 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Additional Rounding In Receipt Print No Print Gratuitous ARP Disable Enable R&D Dept, SHANGHAI TERAOKA ELECTRONIC CO., LTD. 21 of 32...
  • Page 73 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Auto Power-Off Function Inhibit 30 Minutes 3 Minutes 1 Hour 10 Minutes 3 Hours RTS/CTS Handshaking of RS-232C Reset Receipt consecutive Number after Reset Report...
  • Page 74 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Weight Data Synchronization Function Allow Inhibit Open Cash Drawer when Issue Label Allow Inhibit Print Grand Total on Sales Report Allow Inhibit...
  • Page 75 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Print Sub-Total on Receipt Allow Inhibit Pulse width for Opening Cash Drawer 20ms (Default Value) 200ms 50ms 300ms 100ms 400ms R Mode Password Function Inhibit Power On &...
  • Page 76 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Forced Tare when Tare Value in PLU is 9999 Inhibit Allow For CA only. Printing of Servings Fact SS Top & SC Bottom SS Print Only For CA only.
  • Page 77 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 [REZERO] + [1][4][2] WEIGHT AND MEASUREMENT SPECIFICATION (Span Switch must be ENABLE when accessing this mode.) SPEC SPECIFICATION DESCRIPTION SM-100 Price Base for Price Calculation for Weighed Items...
  • Page 78 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Selection of Resolution 1/3000 1/7500 1/6000 New A/D Weight Single Interval or Multi-Interval Single Interval Multi-Interval PLU Weight Item Commodity Name Display For EB and EP type.
  • Page 79 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Auto Tare Clear when Rezero Effective when SPEC623 Inhibit Allow = 0. Trigger Point of Tare / Unit Price Auto Clear Effective when SPEC633 Over Net 5d and Gross 21d and >= Net 1d and Price >...
  • Page 80 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Angle Rotation for Certain Items Printing Anti-clockwise Clockwise Total Price Discount Allow Inhibit Packed Date Function in Manual Mode Inhibit Allow Prepack Mode...
  • Page 81 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Commodity Name Display Interval For EB and EP type. 0.5 Sec 1.5 Sec # Effective when 1.0 Sec 2.0 Sec SPEC619 = 0.
  • Page 82 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Calibration at 1/5 of the Capacity Not effective when Disable Enable SPEC615 = 0. Auto Selection Between Two Label Format Inhibit Allow...
  • Page 83 All manuals and user guides at all-guides.com Specification List SM-100 V2.00 26 December, 2006 SPEC SPECIFICATION DESCRIPTION SM-100 Version Display When Power On Allow Inhibit Re-Zero Function Allow Inhibit Total Price Display Allow Inhibit Tax Rounding Method for Tax Value Excluded in Price...
  • Page 84 All manuals and user guides at all-guides.com SM-100 Flexible Barcode Setting Guide Display Operation Remark tare weight Unit price/kg price Press [mode] third -- --> PLU FILE Enter programmer. times Enter Flexible Barcode Press numeric 4 and 6 -- -->...
  • Page 85 Press [ ] to swith ITF and EAN Press [*] S46.1 F BAR ITF BARCODE barcode. Press [#] -- --> FLEXI BARCODE Save the flexible barcode 1. Note: See the Flexible Barcode Usage Note at 3.6.1 PLU programming in SM-100 Operation manual.
  • Page 86 All manuals and user guides at all-guides.com SM-100 Traceability Setting Guide Prepare Ü Set SPEC258 to “1” Traceability Programming Display Operation Remark tare weight Unit price/kg price å [Mode] [Mode] [Mode] PLU FILE Enter S mode å [3] [4] COUNTRY FILE...
  • Page 87 All manuals and user guides at all-guides.com Display Operation Remark tare weight Unit price/kg price Enter slaughter house å [3][6] SLAUGHTER HOUSE programming [*][1] S36.0 HOUSE NO SET Program slaughter house No. 1 Program slaughter house country [*][1] S36.1 HOUSE COUNTRY No.1 Program slaughter house name...
  • Page 88 All manuals and user guides at all-guides.com Display Operation Remark tare weight Unit price/kg price å [4][9] BREED FILE Enter breed file programming [*][1] S49.0 BREED NO SET Program breed file No. 1 [*][B][U][L][L] S49.1 BREED BULL NAME 4 Program breed name “BULL” å...
  • Page 89 All manuals and user guides at all-guides.com Display Operation Remark tare weight Unit price/kg price [*][R][C][D] S37.8 R-CD NAME 3 Program R-CD content “RCD” [*][G][T][I][N] S37.9 GTIN GTIN NAME 4 Program GTIN content “GTIN” [*][L][O][T] S37.10 NAME 3 Program LOT content “LOT” [*][1] S37.11 TRACE...
  • Page 90 All manuals and user guides at all-guides.com Free Format Programming Ü Enter “S12 å FREE FORMAT”, press [*] Ü Edit the correlative items for traceability in free format PLU ITEM Programming Ü Enter “S19 å PLU ITEM”, press [*] Ü Set “...
  • Page 91 All manuals and user guides at all-guides.com SM-100 Nutrition Fact Setting Guide Concept Nutrition uses fix template to print. Totally It has 12 fix templates(No. 70 ~ No. 81). Setting Method 1. Enter S mode 2. Enter “S19 --- PLU ITEM” and set “IMAGE” and “NUTRI” to “PROGRAM”...
  • Page 92 Shanghai TERAOKA Electronic Co., Ltd. --- Technical Support Dept. Tel: +86-21-6408-5151 Fax: +86-21-6408-3468 E-Mail: steservice@digi-scale.com Note: this guide is available just for SM series expect the SM-100. The link of the hardware Link the PC with scale via RS232C. Operation 1. The Spec setting in the scale 3 for SPEC51 (The SIO baud rate is 9600.
  • Page 93 PCFL-1 Operation Guide Shanghai TERAOKA Electronic Co., Ltd. --- Technical Support Dept. Tel: +86-21-6408-5151 Fax: +86-21-6408-3468 E-Mail: steservice@digi-scale.com 2) the com port setting Please note: a) The com port should be the same as the one used in your computer.
  • Page 94 PCFL-1 Operation Guide Shanghai TERAOKA Electronic Co., Ltd. --- Technical Support Dept. Tel: +86-21-6408-5151 Fax: +86-21-6408-3468 E-Mail: steservice@digi-scale.com Note: You could set the default folder for save the data received from the scale. 3. Operation 1) receive the data from the scale...
  • Page 95 PCFL-1 Operation Guide Shanghai TERAOKA Electronic Co., Ltd. --- Technical Support Dept. Tel: +86-21-6408-5151 Fax: +86-21-6408-3468 E-Mail: steservice@digi-scale.com Note: You could press the key to receive the data from scale. 2) send the data to scale Note: You could press the key to send the data to scale.
  • Page 96 All manuals and user guides at all-guides.com PCFL-1 Operation Guide Shanghai TERAOKA Electronic Co., Ltd. --- Technical Support Dept. Tel: +86-21-6408-5151 Fax: +86-21-6408-3468 E-Mail: steservice@digi-scale.com Press preset key [7]or [8] to select SA TO FL-1 the transmit method: save data to Preset key [8]...
  • Page 97 All manuals and user guides at all-guides.com SM100 ERROR MESSAGE 9. SM100 ERROR MESSAGE ERROR MESSAGE The machine beeps and following error messages appear on display, if incorrect operation is performed. Error Message Causes Label sensor sense no label. No more labels. Replace PAPER END label roll FEED PAPER FIRST...
  • Page 98 All manuals and user guides at all-guides.com SM100 ERROR MESSAGE FATAL MESSAGE Fatal Error Message F002 External flash memory erase error F003 External flash memory program error F004 External flash memory program error F005 Internal RAM read/write error F006 External RAM read/write error F007 External ethernet IC read/write error...
