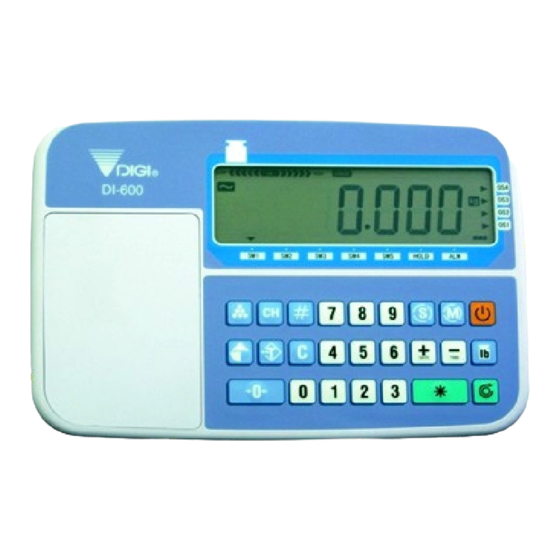

OPERATION MANUAL
Model
DI-600
:
Edition
Month
Year
1st
August
2002
2nd
3rd
4th
5th
SHANGHAI TERAOKA ELECTRONIC Co., Ltd.
--- Technical Support Dept.
A/18F East Tower, New Hua Lian Building,755# Huai Hai Zhong Road, Shanghai China 200020
Tel: +86-21-64739918 Fax: +86-21-54901934 E-mail:
steservice@digi-scale.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-600 and is the answer not in the manual?

Questions and answers

Pieter van der Walt
January 21, 2025

The Digi keeps giving a Err01 code, what should I do?

0
1 comments:
Mr. Anderson
February 4, 2025

The Err01 code for the Digi DI-600 indicates "Over Flow," meaning the weight on the platform exceeds the full capacity. To resolve this, remove some weight from the platform.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Digi DI-600

Summary of Contents for Digi DI-600

  • Page 1 All manuals and user guides at all-guides.com OPERATION MANUAL Model DI-600 Edition Month Year August 2002 SHANGHAI TERAOKA ELECTRONIC Co., Ltd. --- Technical Support Dept. A/18F East Tower, New Hua Lian Building,755# Huai Hai Zhong Road, Shanghai China 200020 Tel: +86-21-64739918 Fax: +86-21-54901934 E-mail:...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com DI-600 Operation Manual CONTENTS 1. General Specification 1.1. Specifications -------------------------------------------------------------------------------------------------- 1 1.2. Features -------------------------------------------------------------------------------------------------------- 1 1.2.1. Indicators -------------------------------------------------------------------------------------------------- 1 1.2.2. Battery Indicator ----------------------------------------------------------------------------------------- 1 1.2.3. Interface --------------------------------------------------------------------------------------------------- 1 1.2.4. Printer ------------------------------------------------------------------------------------------------------ 1 1.2.5. Load Cell -------------------------------------------------------------------------------------------------- 2 1.2.6.
  • Page 3 All manuals and user guides at all-guides.com 2.12. Counting Mode ----------------------------------------------------------------------------------------------- 11 2.12.1. Key Entry Quantity ------------------------------------------------------------------------------------ 11 2.12.2. Sample Quantity Setting ----------------------------------------------------------------------------- 11 2.12.3. Sample Quantity Modification and Print Receipt ---------------------------------------------- 11 2.13. Accumulation Operation ----------------------------------------------------------------------------------- 12 2.13.1. Weight Accumulation --------------------------------------------------------------------------------- 12 2.13.2.

  • Page 4: General Specification

    All manuals and user guides at all-guides.com DI-600 Operation Manual 1. General Specification 1.1. Specifications Model Name : DI-600 Display Resolution : 1/1,000, 1/1,500, 1/2,000, 1/2,500, 1/3,000, 1/4,000, 1/5,000, 1/6,000, 1/7,500, 1/10,000, 1/15,000, 1/20,000, 1/25,000, 1/30,000 Internal Resolution : 1/1,000,000 (Max) Non-linearity : <0.008% FS ( Just only include the indicator)

  • Page 5: Load Cell

    All manuals and user guides at all-guides.com DI-600 Operation Manual 1.2.5. Load Cell: Exiting Voltage : 12V (DC) Sensitivity (Selectable) : 0.4mV/V ~3.5mV/V Input impedance : 350 Ohm Maximum number of L/C : Max. 8 pcs L/C connected in parallel (350 Ohm only) 1.2.6.
  • Page 6 All manuals and user guides at all-guides.com DI-600 Operation Manual LO W HIGH CHECK COUNT SET CAL SP1 SP2 SP3 SP4 TO TAL DI-600 1 2 3 Page No. 3...

  • Page 7: Display Panel

    All manuals and user guides at all-guides.com DI-600 Operation Manual 1.4.2. Display Panel CHECK COUNT SET SP3 SP4 TOTAL HIGH DI-600 HOLD 1.5. Keyboard & Display Layout and Function 1.5.1. Indicators ⑹ ⑴ ⑵ HIGH CHECK COUNT SET SP3 SP4 TOTAL ⑶...

  • Page 8: Keyboard

    All manuals and user guides at all-guides.com DI-600 Operation Manual 1.5.2. Keyboard Function Switch the display On/Off [ On/Off] Set the weight to zero [ Re-Zero ] Set tare value or escape form program mode [ Tare ] Set point setting Mode → Weighing Mode change [ Mode] (1) Sent the data to PC.

  • Page 9: Main Operation

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2. Main Operation 2.1. Power On INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2...

  • Page 10: Tare Clear

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.5. Tare Clear INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2 (9) OS3...

  • Page 11: Grand Total Data Clear

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.8. Grand Total Data Clear 3.8.1. Weight Grand Total Clear INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2...

  • Page 12: Weight Unit Conversion

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.10. Weight Unit Conversion INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2 (9) OS3...

  • Page 13: Set-Point Check And Alarm Mode Select

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.11.2. Set Point Memory Recall INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2...

  • Page 14: Weight Check Bar Of Set-Point

    All manuals and user guides at all-guides.com DI-600 Operation Manual Indicators Operation Weight Remarks 9 10 11 12 Weighing mode 0.000 kg ▼ ▼ ▼ Press [ CH ] [ CH ] ALA. FIL ▼ ▼ Press [ CH ] [ CH ] ALA.

  • Page 15: Counting Mode

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.12. Counting Mode DI-600 has counting function. It can set the sample quantity. The default sample quantity is 10, or you can set the certain quantity as you need. 2.12.1. Key Entry Quantity INDICATION FLAG : ( ▼...

  • Page 16: Accumulation Operation

    All manuals and user guides at all-guides.com DI-600 Operation Manual Same of Printed Receipt: 02 06-18 15:21 CODE: 123456 PIECES: 2000 ------------------------------ 2.13. Accumulation Operation 2.13.1. Weight Accumulation INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net...

  • Page 17: Quantity Accumulation

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.13.2. Quantity Accumulation INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2 (9) OS3...

  • Page 18: Grand Total Check And Print

    All manuals and user guides at all-guides.com DI-600 Operation Manual 2.14. Grand Total Check and Print INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING ) (1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2...

  • Page 19: Error Message

    All manuals and user guides at all-guides.com DI-600 Operation Manual 3. Error Message 3.1. Error Message List & Solution DI-600 will display error message if improper operation is performed or system defect. Display Contents Solution Over Flow, weight is over full Remove some weight form platform.

  • Page 20: Interface & Protocol

    All manuals and user guides at all-guides.com DI-600 Service Manual 4. Interface & Protocol 4.1. Load Cell Connecter DDK-14PIN connector. Allows to parallel connected 8 load cells with 350 Ohm impedance for each. Regulated 6 wire connection with power feedback signal.

  • Page 21: Rs-232 Protocol

    All manuals and user guides at all-guides.com DI-600 Service Manual 4.2.2. RS-232 Protocol 4.2.2.1. Text Command Data Type Code Contents Hex Data End of data Terminal Code End of Text 0 ~ 9 Numeric data (30H~39H) - (Minus) Minus sign Data .
  • Page 22 All manuals and user guides at all-guides.com DI-600 Service Manual 4.2.2.3. Communication Method Communication method can be selected as Stream (continuous), Manual and Command by specification settings. a) Stream (continuous output) Data will transmit to PC side continuously, and the function of SPEC 03 bit 0 is disabled.
  • Page 23 Data will be sent out after received command (ACK 06H) form external device (Ex. PC). If PC required data from DI-600 side, PC should transmit an ACK signal to DI-600 , after DI-600 received the ACK signal, DI-600 would transmit the weight data to PC SPEC setting can define the data It is alter to send the weight data right away or to hold the command unit weight.

  • Page 24: Set-Point Connector

    All manuals and user guides at all-guides.com DI-600 Service Manual 4.3. Set-Point Connector Max. 4 points can be programmed for one item code. 4.3.1. Set-Point Control Cable Specification DI-600 Set-Point Output Pin No Signal Set-Point 1 Control out Set-Point 2 Control out...

  • Page 25: Set-Point Output Control

    All manuals and user guides at all-guides.com DI-600 Service Manual 4.3.4. Set-Point Output Control Combine with the external devices, the set-point port can realize the control function according to the weight changing. Following is a sample circuitry diagram for out devices control: Note: This Circuit Diagram is for Referenced only.
