3.5

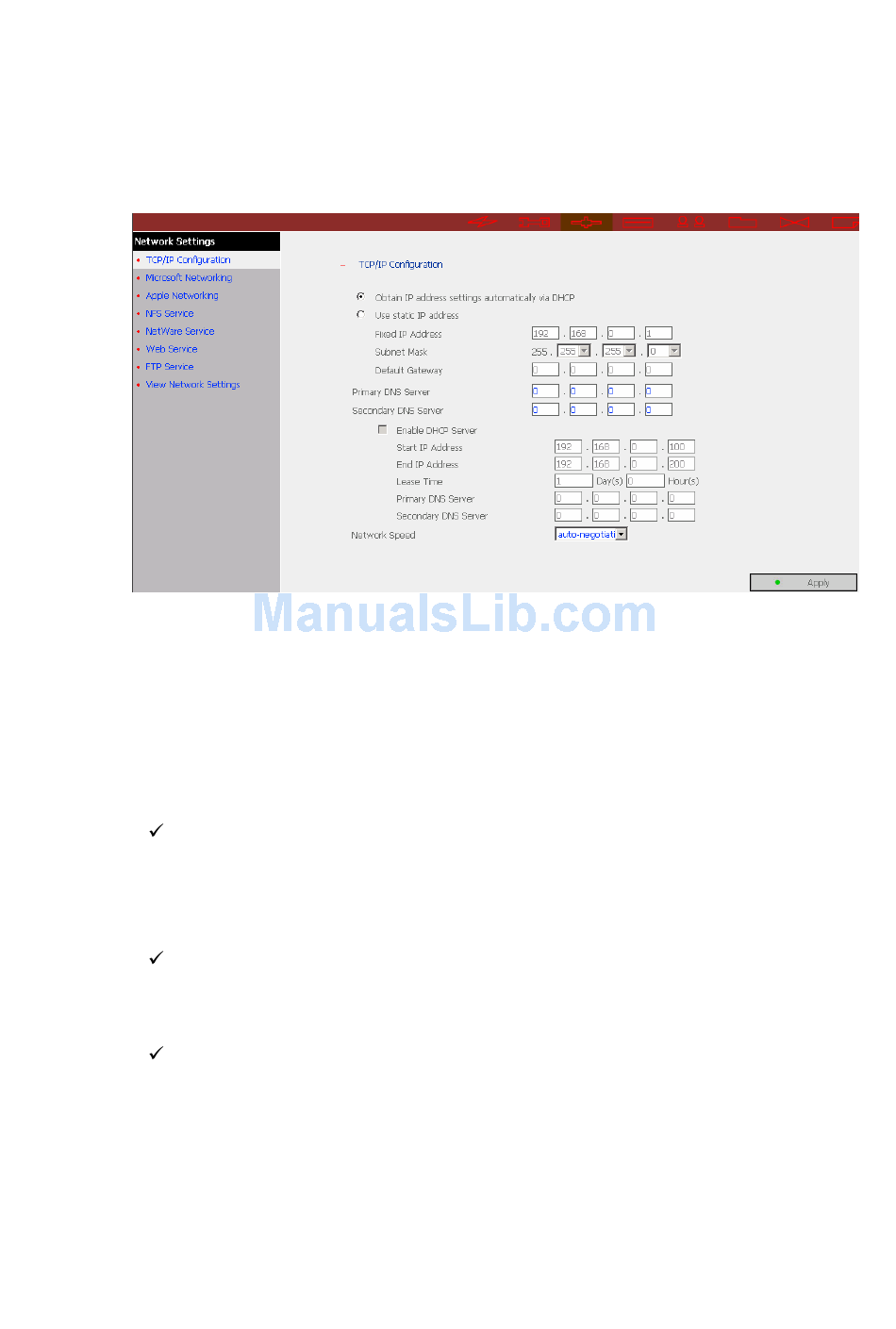

Network Settings
1.
TCP/IP Configuration
•
Obtain IP address settings automatically via DHCP
If your network supports DHCP, Disk On-line Server will automatically use
DHCP protocol to retrieve the IP address and related information.
•
Use static IP address
To use fixed IP address for network connection, enter the following
information:
Fixed IP Address
IP address is a 32-bit digit used to differentiate each single entity on a
network. IP address is divided into four groups of eight bits separated
by dots, e.g. 192.168.0.1.
Subnet Mask
Subnet mask defines computers within the same local network. It is a
32-bit digit, e.g. 255.xxx.xxx.xxx.
Default Gateway
Gateway is generally referred to an interchange point that connects
two networks, such as LAN and WAN.
21
