WS-411U Turbo Server
WS-411U Turbo Server
Q u i ck I n s t a l l at i o n G u i d e
快速安裝指引 /

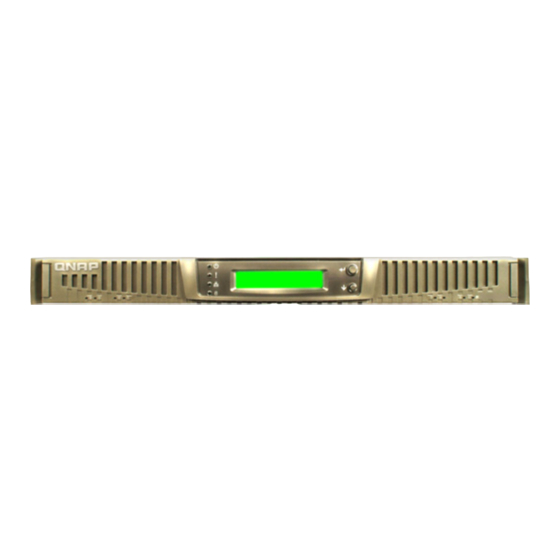

Front View /
正面圖
LED indicators: Power, Error, Network and Disk
指示燈：電源、錯誤、網路及硬碟
指示灯：电源、错误、网络及硬盘
Rear View /
背面圖
Power connector
電源接頭
SCSI tape drive connector
SCSI 磁帶機接頭
SCSI 磁带机接头
Always remember to back up your system to avoid
any potential data loss. QNAP disclaims any
responsibility of all sorts of data loss or recovery.
請務必定期備份系統資料以避免任何可能發生的資
料遺失。威聯通不負責任何資料遺失或回復。
请务必定期备份系统数据以避免任何可能发生的数
据遗失。威联通不负责任何资料遗失或回复。
R
快速安装指引
/
正面图
LCD panel
LCD面板
/
背面图
ATX Power Supply
/
电源接头
電源供應器
/
USB ports
/
USB埠
Important Notice 重要提示
R
Enter button
/
LCD面板
確定鍵
Down button
選擇鍵
电源供应器
Gigabit LAN 1 Gigabit LAN 2
/
USB端口
VGA port
VGA埠
/
VGA端口
For the most updated product information and software
available, please visit us at www.qnap.com.tw.
要知道更新產品資訊及軟體，請至威聯通網站
www.qnap.com.tw
要知道更新产品信息及软件，请至威联通网站：
www.qnap.com.tw。
http//:www.qnap.com.tw
E-mail: sales@qnap.com.tw
Technical Support: support@qnap.com.tw
/
确定键
/
选择键
Power button
電源按鈕
/
电源按钮
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for QNAP WS-411U
Summary of Contents for QNAP WS-411U
- Page 1 Important Notice 重要提示 Always remember to back up your system to avoid For the most updated product information and software any potential data loss. QNAP disclaims any available, please visit us at www.qnap.com.tw. responsibility of all sorts of data loss or recovery.
- Page 2 圆头螺丝 x 35 Install Hard Disk / 安裝硬碟 / 安装硬盘 Please prepare the following items and follow the steps below to install hard disk to WS-411U. You can skip these steps if you have purchased WS-411U package with hard disks installed already.
- Page 3 Fasten the disk with four flat head screws. 反轉抽取盒，確定硬碟的鎖孔對準抽取盒底部的螺絲孔，再使用四顆平頭螺絲 Base 鎖緊硬碟。 反转抽取盒，确定硬盘的锁孔对准抽取盒底部的螺丝孔，再使用四颗平头螺丝 锁紧硬盘。 Insert the hard disk tray to WS-411U. Then lock the tray with the hard disk lock. (You should install 4 disks) 將硬碟抽取盒放回WS-411U，然後用硬碟鎖鎖好抽取盒。 (您必須安裝四個硬碟) HDD4 将硬盘抽取盒放回WS-411U，然后用硬盘锁锁好抽取盒。...
- Page 4 Check System Status / 檢查系統狀態 / 检查系统状态 WS-411U provides a user-friendly LCD panel for you to easily check the system status and basic system information. When WS-411U is turned on, check the following items to make sure system status is normal.
- Page 5 When the system shows serial number blank of Windows Storage Server 2003 R2: a. Input the serial number provided by QNAP. User can find the serial number in the inner side of the LCD panel of WS-411U. b. Default login name/ password: Administrator/ admin 當系統出現Windows Storage Server 2003 R2序號輸入欄位時：...
- Page 6 威联通提供防毒软件「Trend Micro Server Protect」 防毒软件路径为C://ServerProtect NT/Setup.exe，请执行Setup.exe并输入60天试用期的序号： SPTM-9994-8850-5153-9543 Access Network Share on WS-411U/ 連接WS-411U的網路磁碟/连接WS-411U的网络磁盘 Run Quick Install Wizard to find WS-411U on your Select a network share and click Map Network Drive. network. Select WS-411U and click Map Drive. 選擇網路磁碟並按快速精靈上的磁碟機。 執行快速安裝精靈尋找WS-411U。...
- Page 7 Redundant operation system: WS-411U has default redundant operation system separated in Disk 1 and Disk 2. If either Disk 1 or Disk 2 is damaged, the operation system will continue to run properly. User simply has to remove the failed disk and replace it with a new one.
- Page 8 Self status monitoring and warning mechanism: WS-411U embedded monitoring program will send alert messages to user upon any exceptional status like one power failure, system fan failure, CPU fan failure, or system overheat. The system will show an alert message on the LCD monitor, make a beep sound, and send an e-mail* to administrators.
