- Page 1 TS-i410X User Guide Document Version: 2 29/09/2022...
-
Page 2: Table Of Contents
TS-i410X User Guide Contents 1. Preface About This Guide................................3 Audience..................................3 Document Conventions.............................3 2. Product Overview About the TS-i410X..............................4 Hardware Specifications............................4 Package Contents..............................6 Components................................6 Front Panel................................6 Rear Panel................................7 Drive Numbering..............................8 Safety Information..............................8 Installation Requirements............................9 Setting Up the NAS..............................9 3. - Page 3 Qfinder Pro................................33 QNAP ID..................................33 QTS.....................................33 8. Notices Limited Warranty..............................34 Disclaimer................................. 34 Copyright and Trademarks............................. 34 GNU Public License..............................35 CE Notice...................................42 UKCA Notice................................42 FCC Notice.................................42 VCCI Notice................................43 BSMI Notice................................43 SJ/T 11364-2006................................44...
-
Page 4: Preface
TS-i410X User Guide 1. Preface About This Guide This guide provides information about the device and step-by-step instructions on installing the hardware. It also provides instructions on basic operations and troubleshooting information. Audience This document is intended for consumers and storage administrators. This guide assumes that the user has a basic understanding of storage and backup concepts. -
Page 5: Product Overview
Hardware Specifications Warning • If your QNAP product has hardware defects, return the product to QNAP or a QNAP- authorized service center for maintenance or replacement. Any attempt to repair or perform maintenance procedures on the product by you or an unauthorized third party invalidates the warranty. - Page 6 TS-i410X User Guide Component TS-i410X-8G Drive compatibility 2.5-inch bays: • 2.5-inch SATA solid-state drives Note For the list of compatible drive models and expansion cards, go to https://www.qnap.com/compatibility. SSD cache acceleration This device supports SSD cache acceleration for all drives.
-
Page 7: Package Contents
TS-i410X User Guide Component TS-i410X-8G Relative humidity • Non-condensing relative humidity: 5% to 95% • Wet-bulb temperature: 27˚C (80.6˚F) Mount support • VESA mount: 75 x 75 mm (2.95 x 2.95 in) • Load bearing: > 15 kg (33.07 lbs) •... -
Page 8: Rear Panel

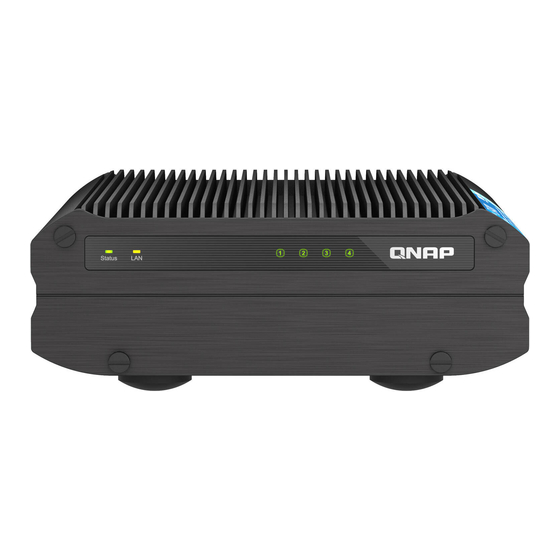

TS-i410X User Guide Component Component Status LED Drive 2 LED LAN LED Drive 3 LED Drive 1 LED Drive 4 LED Rear Panel Component Component Reset button Power input: DC 12V HDMI 1.4b port Kensington security slot 10G BASE-T RJ45 port 1 10 Gigabit Ethernet activity LED USB 3.2 Gen 2 (10Gbps) Type-A ports... -
Page 9: Drive Numbering
TS-i410X User Guide Drive Numbering Note This image shows the device with the front cover removed. Safety Information The following instructions help ensure personal safety and environmental safety. Read these instructions carefully before performing any operation. General Instructions • The device should be stored in a secure location with restricted access, controlled through the use of a tool, lock and key, or any means of security. -
Page 10: Installation Requirements
TS-i410X User Guide • Dispose of used batteries properly according to local regulations or the instructions of the battery manufacturer. Installation Requirements Category Item Environment • Room temperature: -40˚C to 70˚C (-40˚F to 158˚F) • Non-condensing relative humidity: 5% to 95% •... - Page 11 TS-i410X User Guide Warning To avoid potential personal injury or component damage, do not plug in two power inputs at the same time. 5. Power on the NAS. 6. Install QTS. For details, see Installation. 7. Log on to QTS.
-
Page 12: Installation And Configuration
TS-i410X User Guide 3. Installation and Configuration This chapter provides specific hardware and firmware installation and configuration steps. Hardware Installation This section provides information on installing drives and connecting expansion units. Installing 2.5-inch Solid-state Drives on 2.5-inch Trays Warning • Installing a drive deletes all data on the drive. - Page 13 TS-i410X User Guide 4. Install a drive on the tray. a. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray. b. Attach the screws.
-
Page 14: Connecting Usb Expansion Units
6. Attach the front cover. 7. Power on the NAS. Connecting USB Expansion Units The TS-i410X supports connecting a maximum of two USB expansion units. For details, please see table below. You can purchase storage expansion accessories from QNAP or an authorized reseller. - Page 15 TS-i410X User Guide Expansion Unit Model Description Required Accessories TR-002 • Uses a USB 3.2 Gen 1 Type-C • USB 3.2 Gen 2 Type-A to Type- interface C cable • Supports SATA HDD/SDD • USB 3.2 Gen 2 Type-C to Type-...
-
Page 16: Qts Installation
Go to Main Menu > Storage & Snapshots > Overview > System . c. Verify that the expansion units are listed. QTS Installation The TS-i410X uses the QNAP QTS operating system. You can install QTS using any of the following methods. Method Description... - Page 17 The Set the date and time screen appears. 10. Specify the time zone, date, and time using any of the following methods: QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard.
-
Page 18: Installing Qts Using The Cloud Key
To protect your NAS from brute force attacks, create a new system administrator account during QTS installation to disable the default "admin" account. 1. Power on the NAS. 2. Connect the NAS to the internet. 3. Go to the QNAP Cloud Installation page using one of the following methods: Installation and Configuration... - Page 19 • Global: https://install.qnap.com • Scan the QR code on the NAS using a mobile device. The web page lists all the uninitialized QNAP NAS devices on the local network. 4. Find your NAS from the list and then click Initialize. Note If your NAS is not listed, follow the instructions on the web page to specify the Cloud Key on the NAS.
- Page 20 The Set the date and time screen appears. 12. Specify the time zone, date, and time using any of the following methods: QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard.
- Page 21 TS-i410X User Guide Note This page only appears if your device supports Thunderbolt. You will need to connect your device to a computer using a Thunderbolt cable. 16. Click Next. The Summary screen appears. 17. Review the settings. 18. Click Apply.
-
Page 22: Basic Operations
TS-i410X User Guide 4. Basic Operations This chapter describes basic NAS operations. Power Button Operation User Action Result Power on Press the button once. The device powers on. Power off Press and hold the button for 1.5 The device powers off. -
Page 23: Leds
TS-i410X User Guide LEDs LEDs indicate the system status and related information when the device is powered on. The following LED information applies only when the drive is correctly installed and when the device is connected to the network or to a host. -
Page 24: Audio Alert
TS-i410X User Guide Status Description Orange The network connection is operating. Flashes orange The device is being accessed from the network. The device is not connected to a network. 10 Gigabit Green A 10 GbE network connection has been established. - Page 25 TS-i410X User Guide Duration Frequency Description Long beep (1.5 seconds) 3 (every 5 minutes) • A power error occurred. • The system fan is not functioning. • The fan module has been removed. • The NAS data cannot be copied to the external storage device connected to the front USB port.
-
Page 26: Nas Migration
NAS Migration Requirements You can only migrate drives to specific NAS models, depending on your source NAS. For the list of NAS models compatible with direct NAS migration, see https://www.qnap.com/go/nas-migration. Your device must meet the following requirements: • QTS NAS supports several types of NAS migration: •... -
Page 27: Migrating A Nas
1. Power off the source NAS and the destination NAS. 2. Remove the drives. Important QNAP recommends following the source NAS drive order when installing the drives. Take note of the drive tray order when removing the drives. NAS Migration... -
Page 28: Migrating Nas Data Using Hbs 3
TS-i410X User Guide a. Remove the drives from the source NAS. b. Remove the drive trays from the destination NAS. 3. Install the drives. a. Install source NAS drives onto the destination NAS drive trays. b. Insert the drive trays into the destination NAS. -
Page 29: Creating A One-Way Sync Job
TS-i410X User Guide Setting Description Password Specify a password that contains 1 to 16 characters from any of the following groups: • Letters: A to Z, a to z • Numbers: 0 to 9 • Special characters: . - _ ~ ! @ # $ % ^ & ( ) { } •... -
Page 30: Importing Local Users Or Group Settings To The Destination Nas
TS-i410X User Guide 10. Select the paired folders. Important • All subfolders and files in the selected folder are selected. • You can only sync up to 16 paired folders per job. a. Under the source, click A dialog box opens. - Page 31 TS-i410X User Guide d. Select Export user and user group settings. e. Click Next. The NAS user and user group settings are exported as a file and downloaded onto your computer. 3. Import user settings on the source NAS to the destination NAS.
-
Page 32: Troubleshooting
TS-i410X User Guide 6. Troubleshooting This chapter describes basic troubleshooting information. Forcing Qfinder Pro or myQNAPcloud to Locate the NAS If Qfinder Pro or myQNAPcloud is unable to locate the NAS during QTS installation, the drives or data may be faulty. -
Page 33: Recovering Unintentionally Removed Healthy Drives
RAID 5 ≥ 4 RAID 6 ≥ 4 (Must be an even RAID 10 One disk per subgroup fails. number) Support and Other Resources QNAP provides the following resources: Resource Documentation https://download.qnap.com Compatibility List https://www.qnap.com/compatibility NAS Migration Compatibility https://www.qnap.com/go/nas-migration Expansion Unit Compatibility https://www.qnap.com/go/compatibility-expansion... -
Page 34: Glossary
Enables you to access QNAP devices over the internet without configuring complex port forwarding settings Qfinder Pro QNAP utility that lets you locate and access QNAP NAS devices in your local area network QNAP ID User account that enables you to use myQNAPcloud remote access and other QNAP services... -
Page 35: Notices
No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. - Page 36 TS-i410X User Guide Other company names and products mentioned herein are trademarks or registered trademarks of their respective holders. GNU Public License Version 3, 29 June 2007 Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
- Page 37 TS-i410X User Guide “Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks. “The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees” and “recipients” may be individuals or organizations.
- Page 38 TS-i410X User Guide for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.
- Page 39 TS-i410X User Guide a. Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange. b. Convey the object code in, or embodied in, a physical product (including a physical distribution...
- Page 40 TS-i410X User Guide Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.
- Page 41 TS-i410X User Guide your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently if the copyright...
- Page 42 TS-i410X User Guide have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.
-
Page 43: Ce Notice
TS-i410X User Guide PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. -
Page 44: Vcci Notice
• Consult the dealer or an experienced radio/television technician for help. Important Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment. - Page 45 TS-i410X User Guide SJ/T 11364-2006 本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能 包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 0 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
