Ag Pro Silage Special
Owner's Manual & Parts Book
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: 1-800-747-6182
Fax: 1-701-282-8131
E-mail: grouser@grouser.com
Website: www.grouser.com
PN: 19460-R2
Serial Number: 10206243 & 10206258-Current
Purchase Date
Serial Number
Model Number
Tractor Model
Dealer
Date 3-19-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ag Pro Silage Special and is the answer not in the manual?

Questions and answers

Summary of Contents for Grouser Products Ag Pro Silage Special

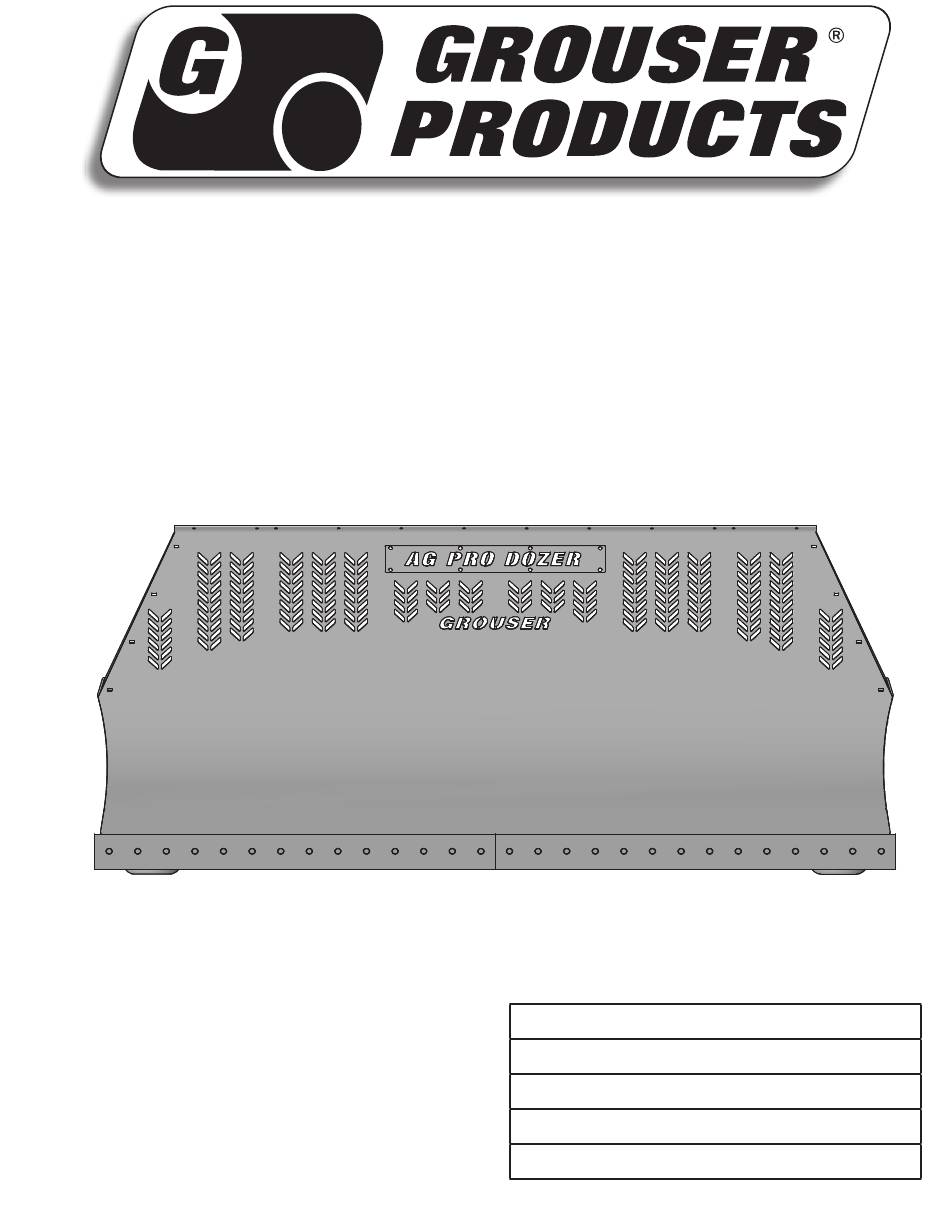

  • Page 1 Ag Pro Silage Special Owner’s Manual & Parts Book Purchase Date Grouser Products Serial Number 755 2nd Ave NW - West Fargo, ND 58078 Model Number Phone: 1-800-747-6182 Fax: 1-701-282-8131 Tractor Model E-mail: grouser@grouser.com Dealer Website: www.grouser.com PN: 19460-R2 Serial Number: 10206243 & 10206258-Current...
  • Page 2 Contact Us, Improvements, & Warranty Thank you for your recent purchase of a Grouser Ag Pro Silage Special Dozer. Welcome to the family of satisfied Grouser blade owners. Grouser Products is committed to offering quality products to help professionals in their daily jobs. We are also committed to providing you the highest level of customer satisfaction possible.
  • Page 3 The Ag Pro Silage Special Dozer: 1. The Ag Pro Silage Special Dozer should be operated only by those who are responsible and instructed to do so. 2. Read the owner’s manual carefully before using this equipment. Lack of operating knowledge can lead to accidents.
  • Page 4 AG PRO PN: 27-14845 PN: 27-14842-XX SILAGE SPECIAL XX = Length of Blade PN: 27-40956 PN: 27-2409 Left and Right Side WARNING Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov 27-40962 PN: 27-40962 STOP PN: 27-9504 PROPER RATCHET STORAGE Handle Ratchet Ratchet...
  • Page 5 Due to the harsh environment this equipment operates in, the following tasks should be performed every 10 hours or less. • Inspect all equipment before operation for existing or potential damage. • Lubricate all joints with high quality grease. See below for grease locations. •...
  • Page 6 Some assembly of Lift System components is necessary. Follow the steps listed below. See diagram below for the correct hardware and orientation of parts. 1. Remove all pins and fasteners on each side of the undercarriage and set aside for later installation. 2.
  • Page 7 * Quantity May Vary Note: The cylinder part number is stamped on the base ITEM NO. QTY. PART NO. DESCRIPTION end of the cylinder opposite of the hydraulic ports. 11-19035-L Nested Top Arm Weld Cylinder Part No. Description 11-19035-R Nested Top Arm Weld 26-34745 49-12278 Seal Kit 4.5 x 18 Nitrided Rod 16-20004 1/4"...
  • Page 8 ITEM HAHT HANT NAHT NANT PART NO. DESCRIPTION QTY. QTY. QTY. QTY. 16-20124 1/2" x 1" Hex Bolt Gr 5 NC 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9 18-19995-L Multi-Coupler Mount 25-19864 Multi-Coupling Plate - 4 Port Fixed 25-19867 Multi-Coupling Plate - 4 Port - Cap 19868...
  • Page 9 ITEM HAHT HANT NAHT NANT PART NO. QTY. DESCRIPTION QTY. QTY. QTY. 34-12932 Cylinder Saddle 34-16578 Hose Clamp (worm drive - 4.5) 34-18888-GR -12 Green - Spiral Band 34-18888-OR -12 Orange - Spiral Band 34-18888-RD -12 Red - Spiral Band 35-12633-0535 53.5”...
  • Page 10 ITEM HANT NAHT PART NO. DESCRIPTION QTY. QTY. 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9 25-19868 Multi-Coupling Plate - 2 Port - Fixed 25-19871 Multi-Coupling Plate - 2 Port - Cap 57-20740 1/4" Flat Washer HANT Angle Rod A Red Spiral Band (X1) Angle Base...
  • Page 11: Tilt Function

    16. Cycle the left cylinder in and out 5 more times and then the right cylinder in and out 5 more times. 16. Check tractor oil level and fill if necessary. Run the blade through all the functions. If any function does not operate correctly, refer to corresponding section above and re- bleed. If problem still persists, call Grouser Products.
  • Page 12 To Connect: Note: If necessary, use a spotter to help center the blade on the lift system. 1. If necessary, lift the locking latch and push the quick attach lock handle on the left side of the lift system to open the quick attach system.
  • Page 13: Skid Shoe Adjustment

    Skid Shoe Adjustment: 1. Remove handle from ratchet keeper by pulling hitch clip pin and insert it into handle receiver on ratchet jack. 2. Loosen locking nut on ratchet jack. 3. Hold body of ratchet jack and rotate ratchet jack handle to raise or lower skid shoes.
  • Page 14 ITEM NO. PART NO. 12'/QTY. 14'/QTY. 16'/QTY. 18'/QTY. DESCRIPTION 15-19250-12 Ag Pro SS Blade - 12' 15-19250-14 Ag Pro SS Blade - 14' 15-19250-16 Ag Pro SS Blade - 16' 15-19250-18 Ag Pro SS Blade - 18' 16-18945 1" x 3" Hex Bolt Gr 5 NC - Short Thread 16-20558 1"...
  • Page 15 Item #A for Ag Pro Dozer Name Plate and #B for Custom Name Plate ITEM NO. PART NO. 12'/QTY. 14'/QTY. 16'/QTY. 18'/QTY. DESCRIPTION 27-14842-12 12' Decal 27-14842-14 14' Decal 27-14842-16 16' Decal 27-14842-18 18' Decal 27-14845 Ag Pro Blade Decal 27-40917 Ratchet Holder Storage Decal 27-40956...
  • Page 16 ITEM NO. QTY. PART NO. DESCRIPTION 11-18495 Blade Stand 16-20011 1/4" x 2-3/4" Hex Bolt Gr 5 NC 16-20130 1/2" x 2-1/2" Hex Bolt Gr 5 NC 16-20560 1" x 2-1/2" Hex Bolt Gr 8 NC 16-20561 1" x 2-3/4" Hex Bolt Gr 8 NC 16-21065 3/8"...
  • Page 17 ITEM NO. QTY. PART NO. DESCRIPTION 43-18486 Ag Pro SS QA Lock Pin 43-18491 Angle Pin Weld 44-8490 Spacer 57-16928 Plate, Washer 57-20742 3/8" Flat Washer 57-20744 1/2" Washer 57-40408 3/8" Flat Nylon Washer 70-20604 1/2" Center Lock Hex Nut 70-20607 3/4"...
  • Page 18 ITEM NO. QTY. PART NO. DESCRIPTION 16-20038 5/16" x 2" Hex Bolt Gr 5 NC 16-20040 5/16" x 2-1/2" Hex Bolt Gr 5 NC 16-20134 1/2" x 3-1/2" Hex Bolt Gr 5 NC 16-20219 3/4" x 2-1/4" Hex Bolt Gr 5 NC 16-35C612 3/8"...
  • Page 19 ITEM NO. QTY. PART NO. DESCRIPTION 31-13933-2-2 1/8” NPT Street Elbow 34-12932 Cylinder Saddle 34-12933 Hose Clamp (worm drive - 5.0) 34-18888-RD -12 Red - Spiral Band 34-18888-GR -12 Green - Spiral Band 34-19217 Rubber Seal 35-12931 Formed Steel Line 35-19355 75.5"...
  • Page 20 ITEM NO. QTY. PART NO. DESCRIPTION 14-9366 Ag Pro Non Tilt Bar 16-20038 5/16" x 2" Hex Bolt Gr 5 NC 16-20040 5/16" x 2-1/2" Hex Bolt Gr 5 NC 16-20134 1/2" x 3-1/2" Hex Bolt Gr 5 NC 16-20219 3/4"...
  • Page 21 ITEM NO. QTY. PART NO. DESCRIPTION 43-18487 Angle Cylinder Base Pin 43-18490 Angle Cylinder Rod Pin Weld 44-19218 Seal Clamp Plate 44-19219 Cover Plate 56-7772 Valve 57-20744 1/2" Washer 57-20747 3/4" Flat Washer Right Angle Base C 57-20749 1" Flat Washer Red Spiral Band X2 70-20581 5/16"...
  • Page 22 ITEM NO. QTY. PART NO. DESCRIPTION 11-18495 Blade Stand 16-20011 1/4" x 2-3/4" Hex Bolt Gr 5 NC 16-20036 5/16" x 1-1/2" Hex Bolt Gr 5 NC 16-20065 3/8" x 1-1/4" Hex Cap Screw Gr 5 NC 16-20128 1/2" x 2" NC Hex Bolt Gr. 5" 16-20130 1/2"...
  • Page 23 ITEM NO. QTY. PART NO. DESCRIPTION 25-19657 Multi-Coupling Plate - 2 Port Parking Station 25-19865 Multi-Coupling Plate - Female Coupler 25-19869 Multi-Coupling Plate - 2 Port - Mobile 25-40407 Multi-Coupling Plate - Snap Ring 26-34747 4 x 8 Cylinder w/ Clevis Ends 27-2409 Pinch Decal (Hand) 27-9503...
  • Page 24 ITEM NO. PART NO. 12' QTY. 14' QTY. 16' QTY. 18' QTY. DESCRIPTION 15-19560-12 Ag Pro SS Blade - 12' 15-19560-14 Ag Pro SS Blade - 14' 15-19560-16 Ag Pro SS Blade - 16' 15-19560-18 Ag Pro SS Blade - 18' 16-20125 1/2"...
  • Page 25 ITEM NO. Qty. PART NO. DESCRIPTION 16-20011 1/4" x 2-3/4" Hex Bolt Gr 5 NC 16-20128 1/2" x 2" NC Hex Bolt Gr. 5" 16-20130 1/2" x 2-1/2" Hex Bolt Gr 5 NC 16-21065 3/8" x 1-1/4" Carriage Bolt Gr 5 NC 16-21126 1/2"...
  • Page 26 ITEM 19265-K 41710-K End Plates PART NO. DESCRIPTION Qty. Qty. 16-20222 3/4" x 3" Hex Bolt Gr.5 NC 16-21124 1/2" x 1" Carriage Bolt Gr 5 NC 16-21126 1/2" x 1-1/2" Carriage Bolt Gr 5 NC 44-19262-L Box End Plate, Top 44-19262-R Box End Plate, Top 44-19265...
  • Page 27 ITEM 40925-1-A 40925-2-A End Extensions PART NO. DESCRIPTION Qty. Qty. 15-17525-R-1 1' End Extensions - Right 15-17525-L-1 1' End Extensions - Left 15-17525-R-2 2' End Extensions - Right 15-17525-L-2 2' End Extensions - Right 15-19305-L 1' End Ext. Top Extensions - Left 15-19305-R 1' End Ext.
  • Page 28 11118-1K 11118-2K 11118-3K 11118-4K 11118-5K 11118-6K 11118-7K 11118-8K ITEM QTY. QTY. QTY. QTY. QTY. QTY. QTY. QTY. PART NO. DESCRIPTION 16-21748 3/4" x 2" Plow Bolt Gr 8 NC 29-11118-1 1' - 3/4" x 8" Cutting Edge 29-11118-2 2' - 3/4" x 8" Cutting Edge 29-11118-3 3' - 3/4"...
  • Page 29 Hydraulic Multi-Couplers Left Right Lift Cylinder Lift Cylinder Tilt Left Tilt Right Right Right Lift Down Lift Up Side Up Side Up Angle Angle Extend Retract Tractor Service Valve...
  • Page 30 Before Each Use: Fixed Half Mobile Half Disconnect the mobile half from the parking station and the cap from the fixed half. Check that there is no contamination (salt, sand, dirt, etc.): On the pins. Inside the cam. In the locking mechanism area. On the face of the plates and couplings.
  • Page 31 Cleaning The Male Interface Seal Cleaning The Female Bushing: Make sure the coupling is securely fastened Make sure the coupling is securely fastened into the plate or place in a vice. into the plate or place in a vice. Using a blunt, non-marring tool, depress the Using a non-marring tool, depress the valve face until the seal is exposed.
  • Page 32: Warranty

    Contact Us As always, if you have any questions about your Ag Pro Silage Special Dozer or other products made by Grouser, feel free to contact us. Grouser Products 755 2nd Ave NW - West Fargo, ND 58078 Phone: 1-800-747-6182 Fax: 1-701-282-8131 E-mail: grouser@grouser.com...
