Owner's Manual & Parts Book
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: 1-800-747-6182
Fax: 1-701-282-8131
E-mail: grouser@grouser.com
Website: www.grouser.com
PN: 63-16504

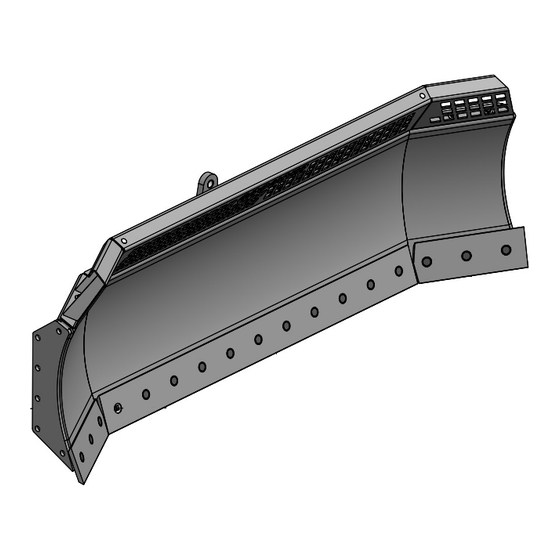

1300 U-Blade
Serial #:200700786-...
Purchase Date
Serial Number
Model Number
Tractor Model
Dealer
Date 10-16-2019
Advertisement
Related Manuals for Grouser Products 1300
Summary of Contents for Grouser Products 1300
- Page 1 1300 U-Blade Owner’s Manual & Parts Book Purchase Date Grouser Products Serial Number 755 2nd Ave NW - West Fargo, ND 58078 Model Number Phone: 1-800-747-6182 Fax: 1-701-282-8131 Tractor Model E-mail: grouser@grouser.com Dealer Website: www.grouser.com PN: 63-16504 Serial #:200700786-... Date 10-16-2019...
- Page 2 Caution: This Is A Non-Trip U-Blade The 1300 Grouser blade is a heavy-duty blade that does not contain a safety trip mechanism found in snow blades. Using this blade as a snow blade could cause serious damage to the blade, the machine, or the operator when you strike an immovable object. Grouser Products will not...
- Page 3 Grouser Products. 6. Lower the blade to the ground when not in use. Servicing the 1300 U-Blade: 1. Read and follow all safety instructions provided by the tractor manufacturer. 2. Always use proper personal safety gear when performing maintenance on equipment.
- Page 4 Item Item Part No. Description Qyt. Qty. Qty. Part No. Description Qyt. Qty. Qty. 15-13850 8' U-Blade Top Ex tension - Center 19-7774 1" x 1" Spring Bushing 15-13855-L 8' U-Blade Top Ex tension - Left 29-7950-6 6' Cutting Edge 15-13855-R 8' U-Blade Top Ex tension -Right 29-7950-7 7' Cutting Edge...
- Page 5 Item Part No. Description Qyt. Qty. Qty. 16-21666 5/8" x 1-3/4" Plow Bolt Gr 5 NC 16-21672 5/8" x 2-1/2" Plow Bolt Gr 5 NC 50-18220 8' U-Blade Skid Shoe - Center 50-18225-R 8' U-Blade Skid Shoe - Right 50-18225-L 8' U-Blade Skid Shoe - Left 50-15905 9' U-Blade Skid Shoe - Center 50-15904-R 9' / 10'' U-Blade Skid Shoe - Right...
- Page 6 ITEM NO. QTY. PART NO. DESCRIPTION 16-21127 1/2" x 1 3/4" Carriage Bolt Gr 5 NC 16-21672 5/8" X 1 3/4" Plow Bolt Gr 5 NC 18-42305-L 9' U Snow Blade Outer Skid Shoe, Extended 18-42305-R 9' U Snow Blade Outer Skid Shoe, Extended 44-42310 Plate, Bolting 50-42300...
- Page 7 Item No. Qty. Part No. Description 16-35C612 3/8" x 3/4" Flanged Bolt 16-20226 3/4" x 4" Hex Bolt Gr 5 NC 19-7774 1" x 1" Spring Bushing 27-2409 Pinch Decal (Hand) 27-9503 Pinch Decal (Foot) 27-9507 Grease Decal 32-8812 Cast Tilt Frame 43-6903 1-15/16"...
- Page 8 Item No. Qty. Part No. Description 16-35C612 3/8" X 3/4" Flanged Bolt 16-20226 3/4" x 1" Hex Bolt Gr 5 NC 19-7774 1" x 1" Spring Bushing 27-2409 Pinch Decal (Hand) 27-9503 Pinch Decal (Foot) 27-9507 Grease Decal 32-8812 Cast Tilt Frame 43-6903 1-15/16"...
- Page 9 Bolt on Bracket Shown on Hydraulic Pages Item No. Qty. Part No. Description 16-20126 1/2" x 1-1/2" Hex Bolt Gr 5 NC 16-20226 3/4" x 1" Hex Bolt Gr 5 NC 19-7774 1" x 1" Spring Bushing 22-17796 Quick Claw Uni Ball - Cat 2 27-2409 Pinch Decal (Hand) 27-9503...
-
Page 10: Operation
Electrical: If your loader is equipped with a 12V/4A OEM attachment control kit you may use that circuit to control the electric solenoid. On loaders without a remote power source, the switching circuit must be installed onto the loader. A power cord and switch are supplied. (See wiring instructions on page 13) Plumbing: The dozer is equipped with angle and tilt;... - Page 11 Item No. Part No. Description Qty. When replacing cylinders that are held in with hitch pin clips, 16-35C612 3/8"-16 x 3/4" Flanged Bolt (Yellow Zinc) order 26-34711-K for a new cylinder and hardware. 19-13577 NR Pin Spacer Clev is End 25-34303 Flush Face Quick Coupler FE Female 25-34304...
- Page 12 Item No. Part No. Description Qty. 16-35C612 3/8"-16 x 3/4" Flanged Bolt (Yellow Zinc) 16-20122 1/2" X 3/4 " Hex Bolt Gr 5 NC 18-16949 Bolt on Bulkhead Tee Bracket 19-13577 NR Pin Spacer Clevis End 25-34303 Flush Face Quick Coupler FE Female 25-34304 Flush Face Quick Coupler FE Male 25-34311...
- Page 13 Item No. Part No. Description Qty. 16-20040 5/16" x 2-1/2" Hex Bolt Gr 5 NC 16-20122 1/2" x 3/4" Hex Bolt Gr 5 NC 16-35C612 3/8"-16 x 3/4" Flanged Bolt (Yellow Zinc) 18-16947 Bolt on Relief Valve Bracket 19-13577 NR Pin Spacer Clevis End 25-34303 Flush Face Quick Coupler FE Female 25-34304...
- Page 14 1: Route And Tie Wire Harness Properly To Avoid Pinching Or Tearing By Boom. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF GROUSER PRODUCTS INC ANY REPRODUCTION IN PART OR WHOLE WITHOUT 2: Attach Switch To Control Handle With Rubber Mounting Strap.
- Page 15 32.07 6.99 13.25 38.97 39.23 10° All Models "G" "F" "E" "D" "A" "B" "C" 30° Dim "A" 15.14" 16.63" 17.42" Dim "B" 32.31" 36.41" 41.62" Dim "C" 49.97" 55.57" 60.77" Dim "D" 82.28" 91.99" 102.39" Dim "E" 87.31" 97.11" 107.52"...
-
Page 16: Warranty
Contact Us As always, if you have any questions about your 1300 U-Blade or other products made by Grouser, feel free to contact us. Grouser Products 755 2nd Ave NW - West Fargo, ND 58078 Phone: 1-800-747-6182 Fax: 1-701-282-8131 E-mail: grouser@grouser.com Website: www.grouser.com...
