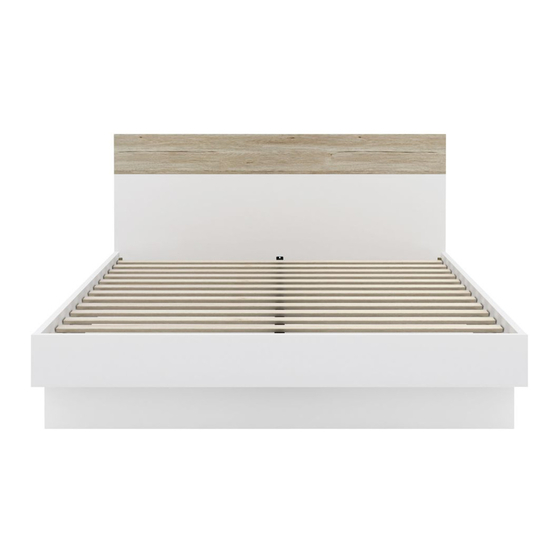

Sadie Queen bed
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
screw
small
x50
Allen Key
x1
F
G
washer
bolt
x12
x12
K
locking
plastic
nut x2
glide x6

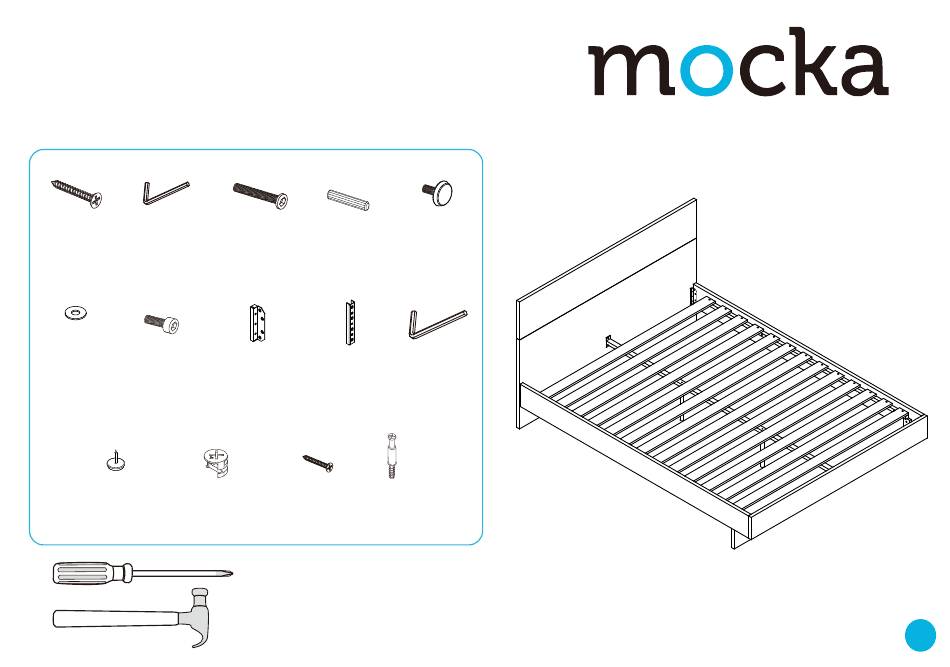

Hardware Supplied
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
long bolt
dowel
x14
x10
H
I
elbow
flat
connector
connector
x4
x4
L
M
N
screw
bolt
x2
x20
Phillips & hammer required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
adjuster
x2
J
large
Allen Key
x1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Sadie Queen bed
Summary of Contents for Mocka Sadie Queen bed
- Page 1 Allen Key screw locking bolt plastic nut x2 glide x6 Hardware Supplied Phillips & hammer required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach panel [1] to panel [2] with 6x dowels (D). Attach panels [3] to panels [1] and [2] and secure with 12x long bolts (C) and 12x washers (F). Tighten with an small Allen Key (B). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Tighten with a screwdriver. Attach 3x plastic glides (K) to panel [1] with 2x elbow connectors (H) to panel [4] and secure with 8x screws (M). a hammer. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach 2x flat connectors (I) to panel [6] and secure Attach 2x elbow connectors (H) to panel [5] and secure with 8x screws (A). Tighten with a screwdriver. with 8x screws (M). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach 4x panels [11] to panels [4] and [5] and secure with 8x screws (A). secure with 2x locking nuts (L). Tighten with a screwdriver. Tighten with a screwdriver. Attach 3x plastic glides (K) to panel [7] with a hammer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [4] and [5] to panel [1] and secure with 6 x Bolts (G). Attach panel [6] to panels [4] and [5] and secure with 6x bolts (G). Tighten with the large Allen Key (J). Tighten with the large Allen Key (J). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 [9] as shown. into place, do not drag. Once in the correct position, rotate the adjusters (E) to the floor level. Ensure the unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Sadie Queen bed Assembly Instructions 3 10 Attach 13x panels [10] to panels [4] and [5] and secure You're done, enjoy! with 26 x Screws (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
