Sadie Console Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
locking
bolt
nut x 25
x25

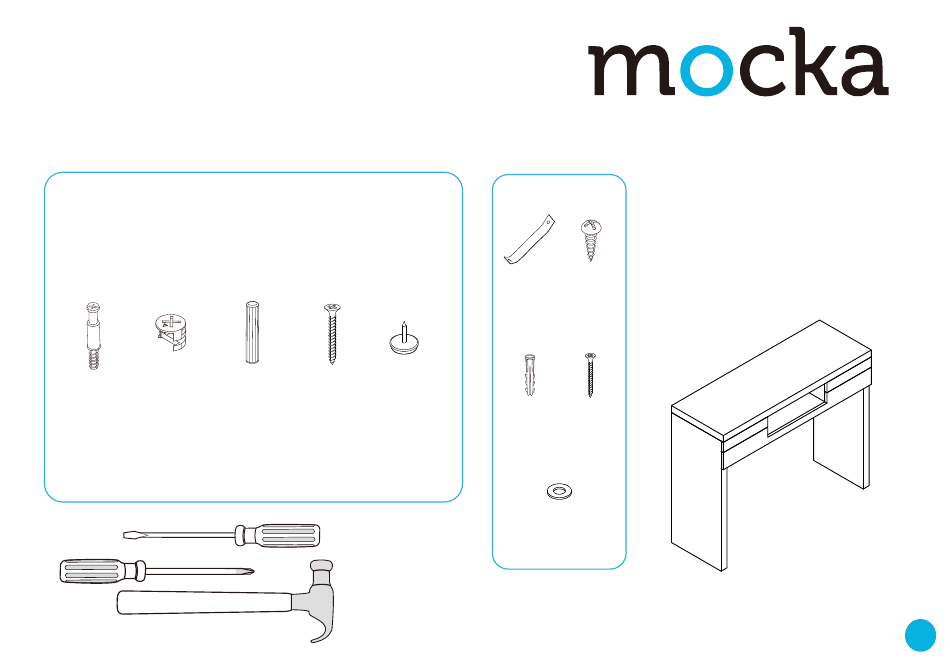

Hardware Supplied

Phillips & Flathead screwdriver required
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
E
dowel
long
plastic
screw x6
glide x4
x12
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
WARNING:
wall has the potential to tip over in certain
W
circumstances, i.e. if a child attempts to climb up on
V
the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but
please note that different wall materials may require
safety
screw
different fixing devices from those supplied.
x1
strap x1
X
Y
wall
wall
anchor
screw
x1
x1
Z
washer
x2
Wall Mount
*We recommend using a Flathead screwdriver to
tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut
holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a
1
