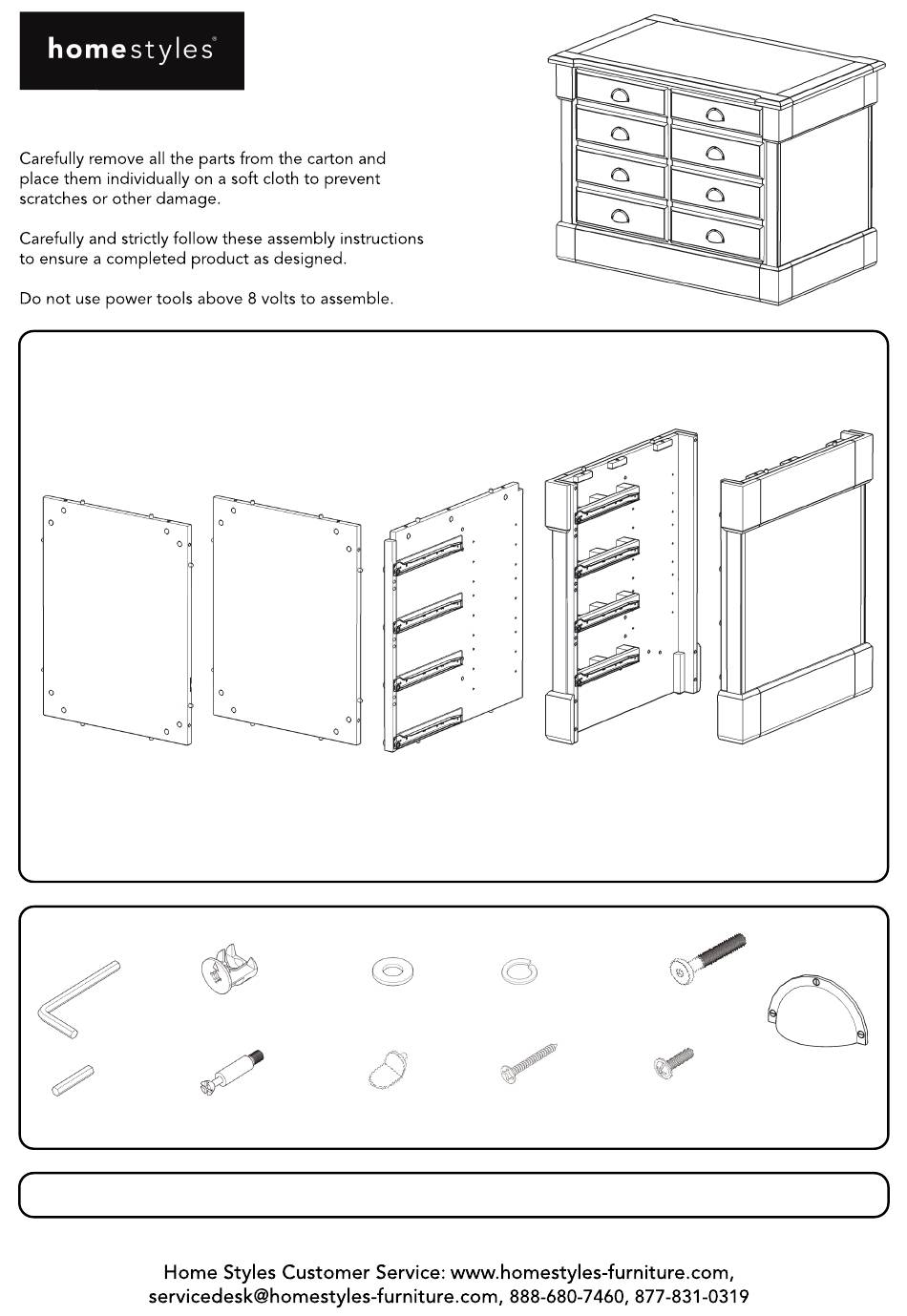

20 05520 0932 Storage Island IMPORTANT Part List Back Panel Back Panel Side Panel Middle Panel Side Panel 1 pc. 1 pc. 1 pc. 1 pc. 1 pc. Hardware List M6x32 Spring Washer Flat Washer Head Cap Bolt Hex Wrench Cam Lock 14 pcs.
Page 2
Assembly Instructions 2/9 IMPORTANT Use a soft cloth between these parts and the floor. Do not use power tools above 8 volts to assemble. Do not tighten all the bolts until each part is properly assembled. The unit must be level to work properly.
Page 3
Assembly Instructions 3/9 Cam Lock STEP 2 Attach Back Panels (D) and (E) to Middle Panel (F) with Cam Locks. (See Figure 2) Figure 2 Head Cap Bolt Spring Washer Flat Washer STEP 3 Attach Bottom (J) to unit with Flat Washers, Spring Washers, Head Cap Bolts and Cam Locks, tightening bolts only halfway.
Page 4
Assembly Instructions 4/9 Cam Lock STEP 4 Attach Plinths (I) to unit with Cam Locks. Flat Washer Spring Washer Head Cap Bolt STEP 5 Attach Rails (C) to Side Panel (H) with Cam Locks. Attach unit from Step 4 to unit with Cam Locks, Flat Washers, Spring Washers and Head Cap Bolts, tightening bolts only halfway.
Page 5
Assembly Instructions 5/9 Wood Screw STEP 6 Attach Rails (C) to unit with Cam Locks. Attach Side Panel (G) to unit with Cam Locks Flat Washers, Spring Washers, Head Cap Bolts and Wood Screws, tightening bolts only halfway. Turn unit to it’s upright position. Flat Washer Spring Washer Head Cap Bolt...
Assembly Instructions 6/9 Drawer (L) STEP 8 Attach Drawer Sides (L3) and (L4) to Drawer Back (L2), then flip Locks. (See Figures 4 and 5) Lock STEP 9 Figure 4 Figure 5 Slide Drawer Bottom (L5) into groove. Attach Drawer Front (L1) to unit, then flip Locks.
Page 7
Assembly Instructions 7/9 Drawer (M) STEP 11 Attach Drawer Sides (M3) and (M4) to Drawer Back (M2), then flip Locks. Lock STEP 12 Slide Drawer Bottom (M5) into groove. Attach Drawer Front (M1) to unit, then flip Locks. Lock Machine Screw STEP 13 Attach Handle with Machine Screw.
Page 8
Assembly Instructions 8/9 STEP 14 Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 6) Note: Unit must be level to work properly. Slide Drawers (L) and (M) into position. Figure 6 Adjustable Pin STEP 15 Insert Adjustable Pins into side panels and middle panel at desired level.
Assembly Instructions 9/9 Per regulatory requirements, a Tip-over Restraint is included. Follow Step 16 to install it. STEP 16 Drill a 3/16” hole 1/2” deep 1” below top of unit in middle of side panel that is Anchor in wall Wall Screw Bracket 3/16”...
Page 10
Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
