615A-61
FOR 2000 SERIES CHERRYLOCK® RIVETS
DESCRIPTION
This is a mechanically shifting offset nose assembly designed for installing Cherrylock® 2000 series rivets up to 1/2" grip length in limited access
areas. There is a separate nose assembly required for each head style (universal and countersunk) and each shank diameter. These nose as-
semblies should not be used on bulbed Cherrylock® rivets larger than 5/32" diameter
These nose assemblies fit directly on the GB715 Installation Tool
GAGE BILT
MADE in USA

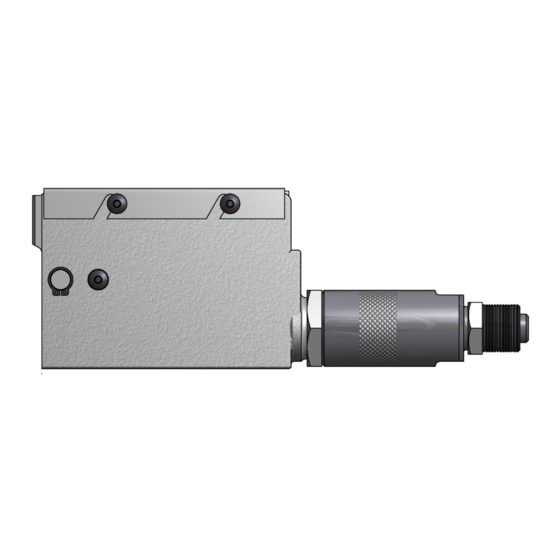

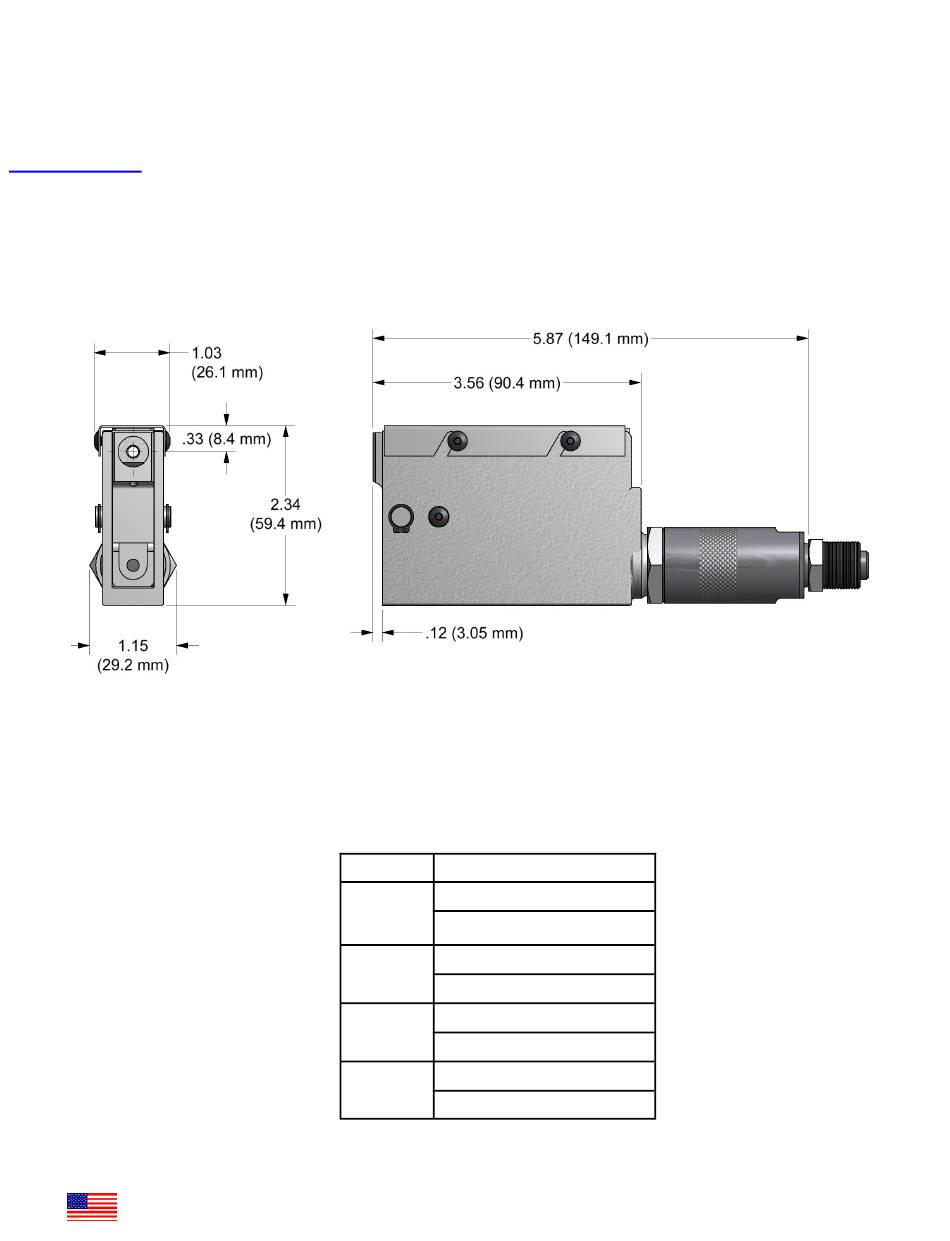

OFFSET NOSE ASSEMBLIES
(See installation instructions for attaching to GB784 Tool on page 4)
*Do NOT use GB784 to install 1/8" CherryLOCK rivets. For 5/32"-1/4" only
DIAMETER
*1/8"
5/32"
3/16"
1/4"
NOSE ASSEMBLY
*4U-615A-61 Universal Head
*4C-615A-61 Countersunk Head
5U-615A-61 Universal Head
5C-615A-61 Countersunk Head
6U-615A-61 Universal Head
6C-615A-61 Countersunk Head
8U-615A-61 Universal Head
8C-615A-61 Countersunk Head
44766 Centre Court Clinton Twp. MI 48038 USA
Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505
solutions@gagebilt.com / www.gagebilt.com
Advertisement
Table of Contents
Related Manuals for Gage Bilt 2000 Series
Summary of Contents for Gage Bilt 2000 Series
- Page 1 DESCRIPTION This is a mechanically shifting offset nose assembly designed for installing Cherrylock® 2000 series rivets up to 1/2" grip length in limited access areas. There is a separate nose assembly required for each head style (universal and countersunk) and each shank diameter. These nose as- semblies should not be used on bulbed Cherrylock®...
- Page 2 PARTS LIST FOR 615A PULLING HEAD Nose Assemblies Ref. Qty. Description 4U-615A-61 4C-615A-61 5U-615A-61 5C-615A-61 6U-615A-61 6C-615A-61 8U-615A-61 8C-615A-61 Cover 60402 60402 60402 60402 60402 60402 60402 60402 Cap Screw 400107 400107 400107 400107 400107 400107 400107 400107 Set Screw S402 S402 S402...
- Page 3 MAINTENANCE, REPAIR AND ADJUSTMENTS ASSEMBLY INSTRUCTIONS ADJUSTING NOSE ASSEMBLY 1. Replace any broken or worn parts. When reassembling drawbolt, These nose assemblies are factory adjusted to properly install rivets press in special washer (16) while inserting retaining ring (17). in the A-Group (shorter lengths). If nose assembly has been disas- When retaining ring is in place turn special washer until its lug is sembled for repair it will be necessary to readjust it.
- Page 4 INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS FOR ATTACHING TO GB784 TOOL cont. FOR ATTACHING TO GB715 TOOL 1. Make sure the head piston of the tools is in its full forward position 2. Connect power tool to air supply before attaching pulling head Adapter 3.
