Crestron HD-DA-2-QUAD Quick Start

HD-DA-2-QUAD
Quad 1-to-2 HDMI® Distribution Amplifier

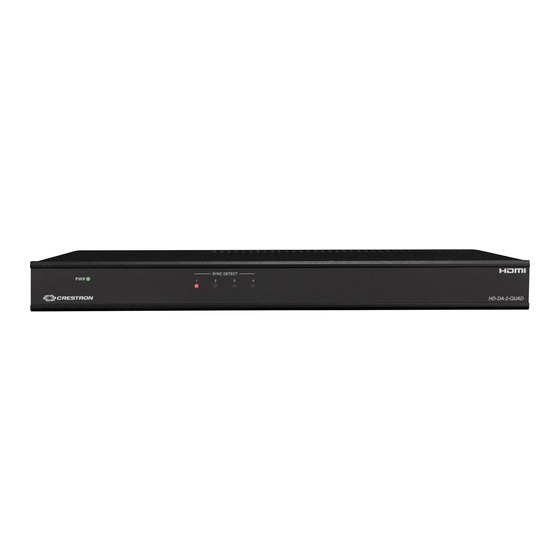

The Crestron® HD-DA-2-QUAD
independent 1-to-2 HDMI® distribution amplifiers. It is designed for
splitting up to four HDMI, DVI, or DisplayPort™ Multimode signals to feed
separate displays or processors, and is ideal for adding "loop-through"
capability to the inputs of a Crestron DVPHD Digital Video Processor. The
HD-DA-2-QUAD supports HDMI with Deep Color and HDCP, handling
1080p60 HDTV and WUXGA computer resolutions, and multichannel HD
lossless audio.
In the Box
1 HD-DA-2-QUAD, Quad 1-to-2 HDMI Distribution Amplifier
Additional Items
2 Bracket, Rack Ear, 1U (2004208)
1 Connector, 2-Pin (2003574)
4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Adhesive (2002389)
1 Cable, Power, 5 ft 10 in. (1.8 m) (2042043)
1 Power Pack, 24 VDC, 2.5 A, 100-240 VAC (2045873)
is a single rack space unit containing four
Install the Device
The HD-DA-2-QUAD can be mounted into a rack or placed on a flat
surface.
Mount into a Rack

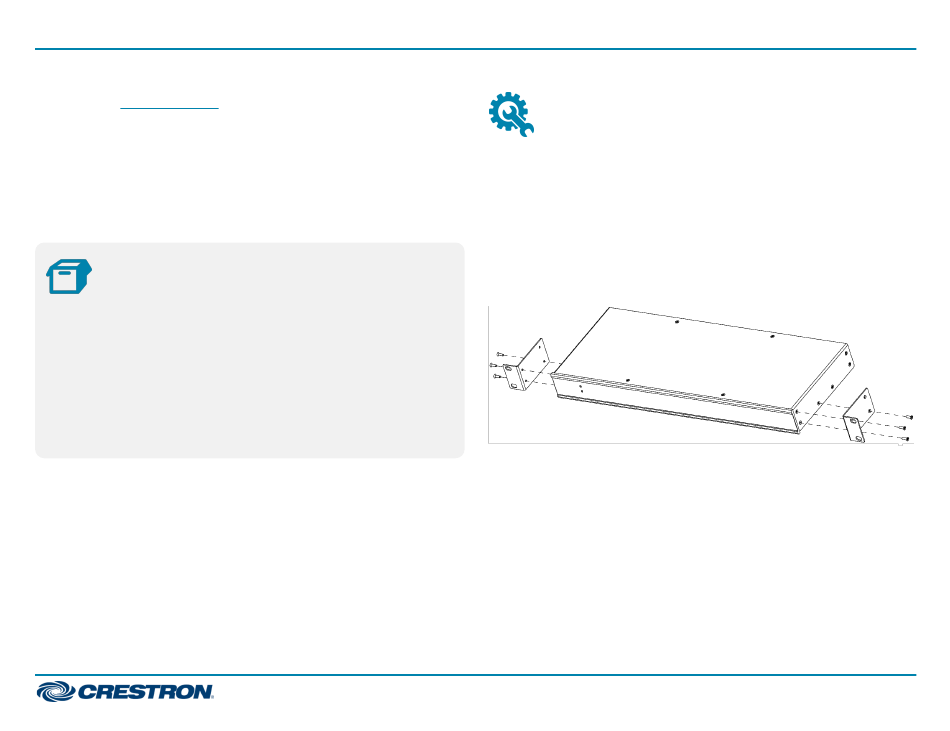

The HD-DA-2-QUAD occupies 1U of rack space. Use the three screws
from the front part of each side panel, and a #1 or #2 Phillips screwdriver
to attach the two included rack ears to the device, as shown in the
following illustration. Then mount the device into the rack using four
mounting screws (not included).
Rack Mounting Safety Precautions
Elevated Operating Ambient Temperature: If installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient temperature. Therefore,
consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
Reduced Airflow: Installation of the equipment in a rack should be such
that the amount of airflow required for safe operation of the equipment
is not compromised.
Quick Start
1
