Summary of Contents for Crestron HD-DA-2-QUAD
- Page 1 Crestron HD-DA-2-QUAD Quad 1-to-2 HDMI™ Distribution Amplifier Operations Guide...
-
Page 2: Regulatory Compliance
Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance As of the date of manufacture, the HD-DA-2-QUAD has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC Rules. -
Page 3: Table Of Contents
Crestron HD-DA-2-QUAD Quad 1-to-2 HDMI™ Distribution Amplifier Contents Quad 1-to-2 HDMI™ Distribution Amplifier: HD-DA-2-QUAD Introduction ..........................1 Features and Functions ....................1 Applications......................... 3 Internal Block Diagram ....................4 Specifications ......................4 Physical Description....................5 Setup ............................7 Installation ........................7 Hardware Hookup ....................... -
Page 5: Quad 1-To-2 Hdmi™ Distribution Amplifier: Hd-Da-2-Quad
Amplifier: HD-DA-2-QUAD Introduction The HD-DA-2-QUAD is a single rack-space unit containing four independent 1-to-2 HDMI distribution amplifiers. It is designed for splitting up to four HDMI, DVI, or DisplayPort Multimode signals to feed separate displays or processors, and is ideal ®... - Page 6 HDCP Key Management By supporting HDCP, the HD-DA-2-QUAD ensures compatibility with all current and future high-definition signals. HDCP (High-bandwidth Digital Content Protection) is the digital rights management method that television and movie studios use to protect their content from unauthorized duplication.
-
Page 7: Applications
Crestron HD-DA-2-QUAD Quad 1-to-2 HDMI™ Distribution Amplifier Applications The following diagram shows an HD-DA-2-QUAD in a residential application. HD-DA-2-QUAD in a Residential Application Quad 1-to-2 HDMI™ Distribution Amplifier: HD-DA-2-QUAD • 3 Operations Guide – DOC. 6713B... -
Page 8: Internal Block Diagram
HDMI OUT 4 HDMI INPUT 4 HDMI OUT 4 HD-DA-2-QUAD Specifications Specifications for the HD-DA-2-QUAD are listed in the following table. HD-DA-2-QUAD Specifications SPECIFICATION DETAILS Video Signal Types HDMI, DVI*, DisplayPort Multimode* Formats HDMI with Deep Color, DVI*, HDCP content... -
Page 9: Physical Description

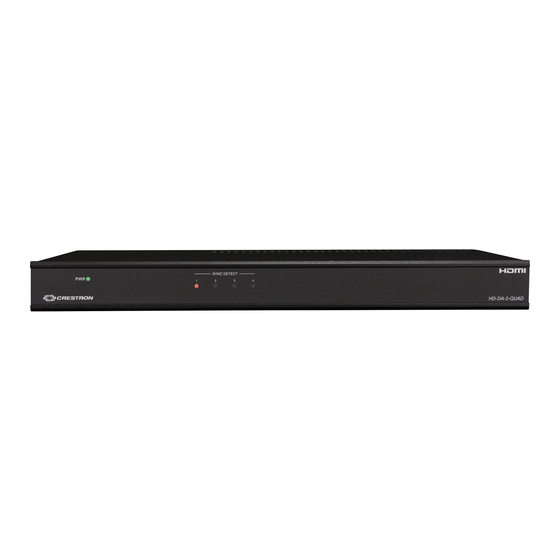

HDMI requires an appropriate adapter to accommodate a DVI or DisplayPort Multimode signal. Adapters not included. Physical Description This section provides information on the connections, controls and indicators available on your HD-DA-2-QUAD. HD-DA-2-QUAD Physical View (Front) Quad 1-to-2 HDMI™ Distribution Amplifier: HD-DA-2-QUAD • 5 Operations Guide – DOC. 6713B... - Page 10 24 Volt DC power input (PW-2420RU power supply included) GROUND (1) 6-32 screw, chassis ground lug Interface connector for the PWR port is provided with the unit. 6 • Quad 1-to-2 HDMI™ Distribution Amplifier: HD-DA-2-QUAD Operations Guide – DOC. 6713B...
-
Page 11: Setup
Rack Mounting The HD-DA-2-QUAD can be mounted in a rack or stacked with other equipment. Two “ears” are provided with the HD-DA-2-QUAD so that the unit can be rack mounted. These ears must be installed prior to mounting. Complete the following procedure to attach the ears to the unit. -
Page 12: Hardware Hookup
Stacking Four “feet” are provided with the HD-DA-2-QUAD so that if the unit is not rack mounted, the rubber feet can provide stability when the unit is placed on a flat surface or stacked. These feet should be attached prior to the hookup procedure. -
Page 13: Hdcp Signal Path
Depth = 2 Depth = 0 Device # 3 Device # 4 HDMI DISPLAY AV Receiver HDMI USING HDMI with HDCP Reported Reported Depth = 0 Depth = 1 Quad 1-to-2 HDMI™ Distribution Amplifier: HD-DA-2-QUAD • 9 Operations Guide – DOC. 6713B... -
Page 14: Edid
Quad 1-to-2 HDMI™ Distribution Amplifier Crestron HD-DA-2-QUAD Using Crestron Toolbox, the HD-DA-2-QUAD can test HDMI sources and displays for limitations due to HDCP keys. The number of HDCP keys specify the number of display devices that can be connected to a source over HDMI using HDCP authentication. - Page 15 AC3, 6ch, 32/44.1/48kHz • DTS, 6ch, 32/44.1/48kHz Under “Best Common”, the same rules apply to audio as video. For more information, refer to the Crestron Toolbox help file. Quad 1-to-2 HDMI™ Distribution Amplifier: HD-DA-2-QUAD • 11 Operations Guide – DOC. 6713B...
-
Page 16: Uploading And Upgrading
HD-DA-2-QUAD CRESTRON TOOLBOX The COMPUTER port on the HD-DA-2-QUAD connects to the USB port on the PC via the included Type A to Type B USB cable: 1. Use the Address Book in Crestron Toolbox to create an entry using the expected communication protocol (USB). -
Page 17: Program Checks
Functions menu to display actions that can be performed on the HD-DA-2-QUAD. DMTool In the Crestron Toolbox Address Book, select the HD-DA-2-QUAD. Then use the DMTool to configure EDID, HDCP or to troubleshoot AV on the HD-DA-2-QUAD. Refer to the help file for additional information. -
Page 18: Problem Solving
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 19: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 20 Crestron Electronics, Inc. Operations Guide – DOC. 6713B 15 Volvo Drive Rockleigh, NJ 07647 (2023604) Tel: 888.CRESTRON 07.10 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
