HD-DA2-4KZ-E, HD-DA4-4KZ-E, and HD-DA8-4KZ-E
Distribution Amplifiers
The HD-DA2-4KZ-E, HD-DA4-4KZ-E, and HD-DA8-4KZ-E distribution amplifiers split a single
HDMI® signal to feed up to two, four, or eight displays and other device types, respectively.
The distribution amplifiers support UHD and DCI 4K60 4:4:4 HDR video, HDCP 1.4 or 2.2 copy
protection, and high-bitrate 7.1 audio. No control system is required for operation.
Check the Box
Item
HD-DA2-4KZ-E, HD-DA4-4KZ-E, or HD-DA8-4KZ-E
Power Pack, 24 Vdc 0.75 A, 100-240 Vac (P/N 2045865)
Install the Device
The distribution amplifiers can be mounted onto drywall or onto a rack rail.

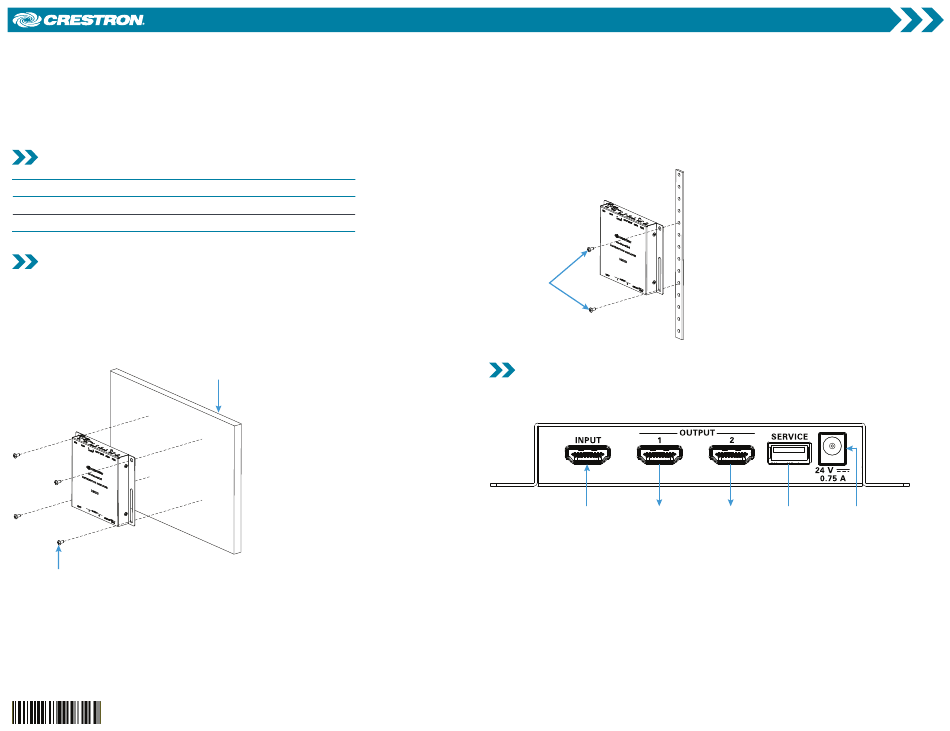

Drywall Mounting
Using four 8-18 x 3/4" modified truss head Phillips steel screws (not included), mount the
device onto drywall.
Drywall Mounting (HD-DA2-4KZ-E Shown)
(4) Screws, 8-18 x 3/4" modified
truss head Phillips, steel (not
included)
Qty
1
1
Drywall
Rack Rail Mounting
Mount the device onto the front or rear rail of a rack. Position either the left or right
mounting flange of the device so that the holes align with the holes in the rack. Then, secure
the device to the rack using two rack mounting screws (not included). For more information,
refer to the mounting instructions of the rack manufacturer.
Rack Rail Mounting (HD-DA2-4KZ-E Shown)
Screws
(not included)
Connect the Device
Connect the rear panel of the device as required for the application.
Rear Panel Connections (HD-DA2-4KZ-E Shown)
INPUT:
OUTPUT 1:
From
HDMI®
To HDMI
audio/video
display
source
Quick Start
OUTPUT 2:
SERVICE:
24 V 0.75 A:
To HDMI
For
From
display
firmware
included
loading
power pack
