Summary of Contents for Southern Enterprises 13224

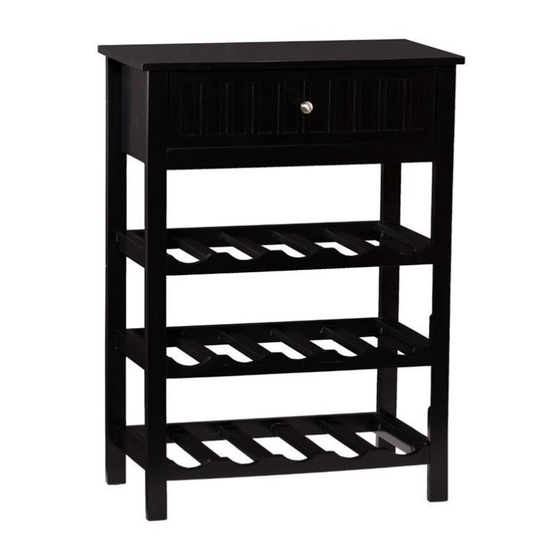

- Page 1 HZ205700TX For assistance with assembly, contact: Emillion Black Wine Table Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com PO# 13224...
- Page 2 HZ205700TX Emillion Black Wine Table Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 HZ205700TX Emillion Black Wine Table Assembly Instructions Step 1: Attach Cam Bolts (3) and Wood Dowels (6) to Left Frame (B). Insert Cam Locks (2) into Back Top Apron (D) and Front Crossbar (E), then attach to Left Frame (B). Secure and tighten Cam Locks (2) by turning clockwise with Phillips Screwdriver.
- Page 4 Step 2: Repeat Step 1 to attach Right Frame (C) to the assembled unit. Tighten Bolts (8) with fingers. Step 3: Attach Cam Bolts (3) to bottom of Top Panel (A). Insert Cam Locks (2) into assembled unit from Step 2. Connect Top Panel (A) to assembled unit.
- Page 5 Step 4: Attach Drawer Left (H) and Drawer Right (I) to Drawer Front (G) using Screws (1). Insert Drawer Bottom (K) into inside grooves of Drawer Right (I) and Drawer Left (H). Attach Drawer Back (J) to Drawer Left (H) and Drawer Right (I) using Screws (1).
-
Page 6: Customer Service
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com.
