MULTISPAN UTC-113P Operating Manual page 2

Key Operation
1) Press Key to go parameter setting.
SET SET
2) Use Or key to change value of parameter.
3) Press + Key to save changes in setting.
SET
4) To start or stop Auto-Tuning press key for 6 sec.
5) Press + key for 3 sec to go to factory setting mode.

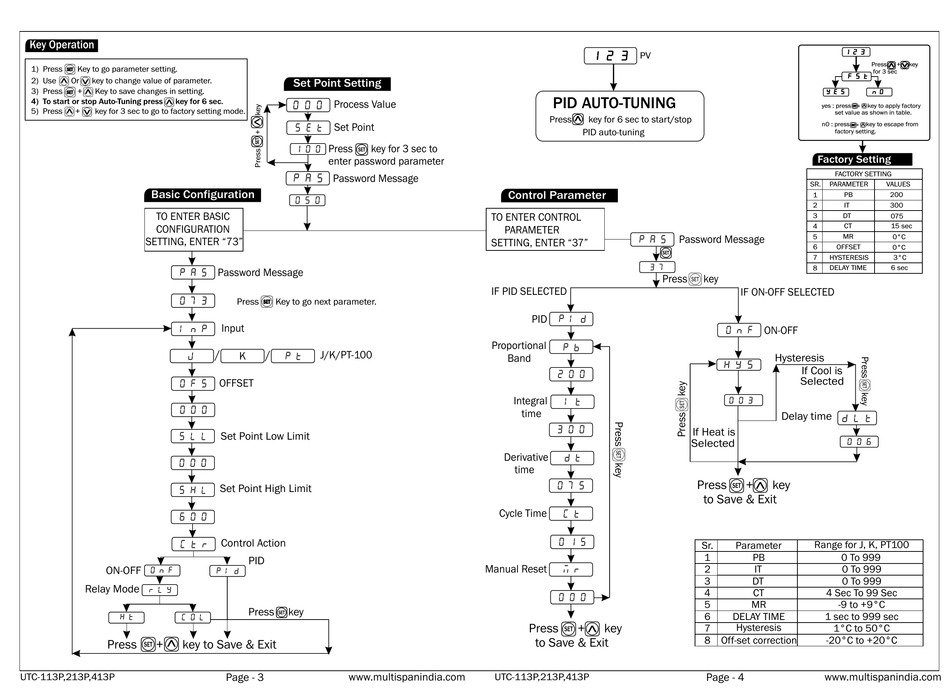

Basic Configuration
TO ENTER BASIC
CONFIGURATION
SETTING, ENTER "73"
P A S
0 7 3
I N P
J
O F S
0 0 0
S L L
0 0 0
S H L
6 0 0
C T R
ON-OFF
O N F
Relay Mode
R L Y
H T
C O L
Press + key to Save & Exit
SET
UTC-113P,213P,413P
Set Point Setting
0 0 0 Process Value
S E T Set Point
Press key for 3 sec to
1 0 0
SET
enter password parameter
P A S
Password Message
0 5 0
Password Message
Press Key to go next parameter.
SET SET
Input
J/K/PT-100
K P T
OFFSET
Set Point Low Limit
Set Point High Limit
Control Action
PID
P I D
Press key
SET
Page - 3 www.multispanindia.com
1 2 3
PV
PID AUTO-TUNING
Press key for 6 sec to start/stop
PID auto-tuning
Control Parameter
TO ENTER CONTROL
PARAMETER
P A s
SETTING, ENTER "37"
SET
3 7
Press
IF PID SELECTED
PID p I d
Proportional
p B
Band
2 0 0
Integral
I T
time
3 0 0
Derivative
D T
time
0 7 5
Cycle Time C T
0 1 5
Manual Reset M R
0 0 0
Press + key
SET
to Save & Exit
UTC-113P,213P,413P
1 2 3
F S T
Y E S
yes : press
+
SET
set value as shown in table.
nO : press
+
SET
factory setting.
Factory Setting
FACTORY SETTING
SR. PARAMETER
1 PB
IT
2
3 DT
4 CT
5 MR
Password Message
6 OFFSET
7 HYSTERESIS
8 DELAY TIME
key
SET
IF ON-OFF SELECTED
O N F ON-OFF
Hysteresis
H Y S
If Cool is
Selected
0 0 3
Delay time D L T
If Heat is
0 0 6
Selected
Press + key
SET
to Save & Exit
Range for J, K, PT100
Sr. Parameter
1 PB 0 To 999
2 IT 0 To 999
3 DT 0 To 999
4 CT 4 Sec To 99 Sec
5 MR -9 to +9°C
6 DELAY TIME 1 sec to 999 sec
Hysteresis
7 1°C to 50°C
8 Off-set correction -20°C to +20°C
Page - 4 www.multispanindia.com
Press + key
for 3 sec
n O
key to apply factory
key to escape from
VALUES
200
300
075
15 sec
0°C
0°C
3°C
6 sec
