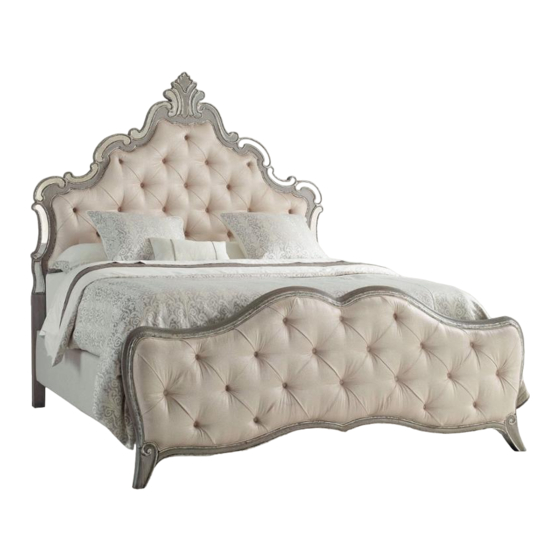

ITEM# 5603-90867-LTBR 6/6 Upholstered Panel Headboard
Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more persons.
ASSEMBLY INSTRUCTION
5603-90868-LTBR6/6 Upholstered Panel Footboard
5603-90853-LTBR6/6 Upholstered Rails
1/3
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5603-90867-LTBR
Summary of Contents for Hooker Furniture 5603-90867-LTBR

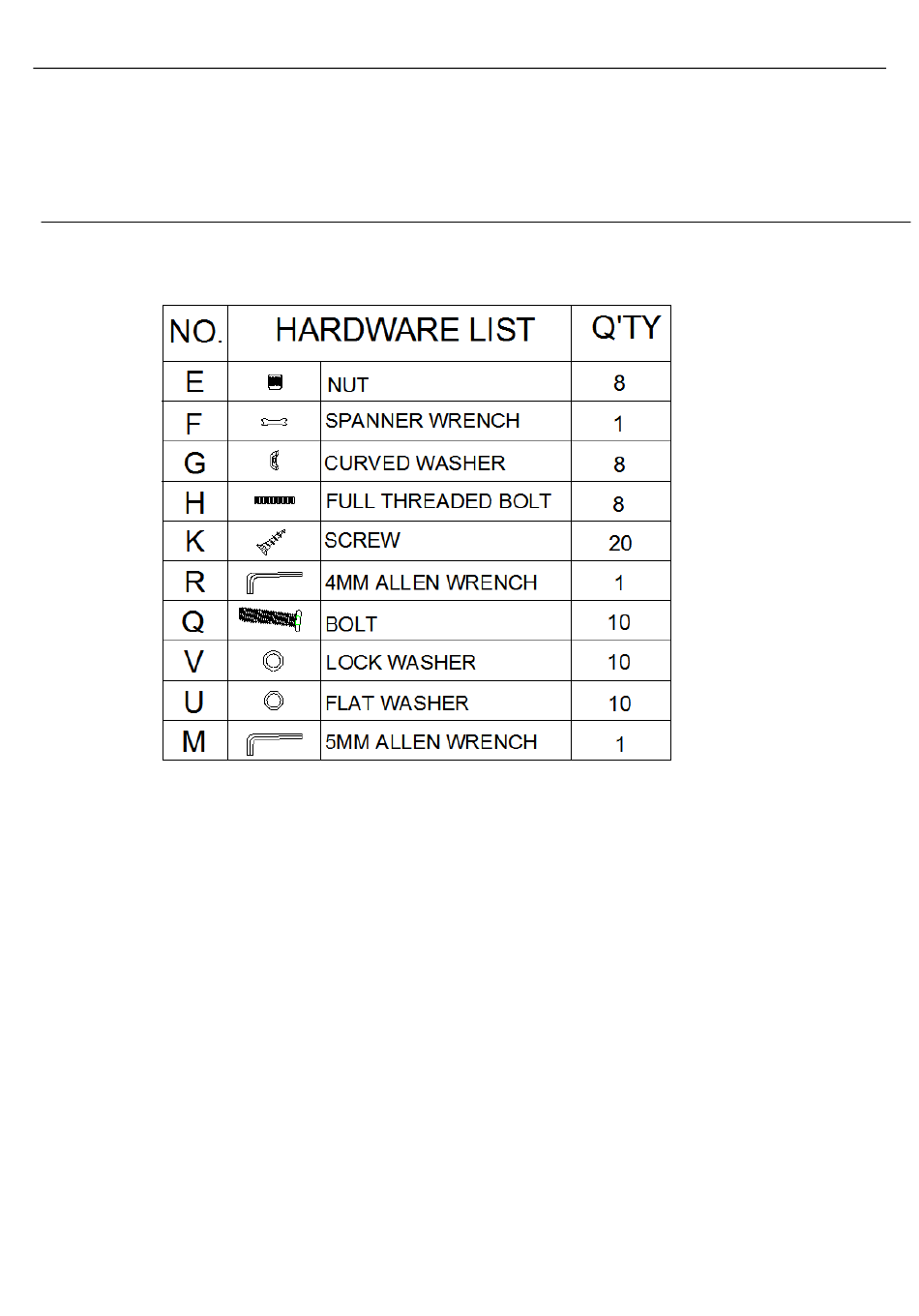

- Page 1 ASSEMBLY INSTRUCTION ITEM# 5603-90867-LTBR 6/6 Upholstered Panel Headboard 5603-90868-LTBR6/6 Upholstered Panel Footboard 5603-90853-LTBR6/6 Upholstered Rails Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more persons.
- Page 2 See Diagram 2 See Diagram 1 See Diagram 5 See Diagram 3 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps: 1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the end of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 Diagram 2 3 Attach slats (D) to side rails (C), align pre-drilled holes on the slat to holes on the cleat of side rail (C), using screws (K) to tighten both. (See diagram 3) Diagram 3 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 4.
- Page 4 You can adjust the height of center supports (L) as shown in Diagram 5 to meet your need by the following steps. 1. Keep center supports(L) as 3pcs of woods if need to adjust the height to align top holes on side rails.
