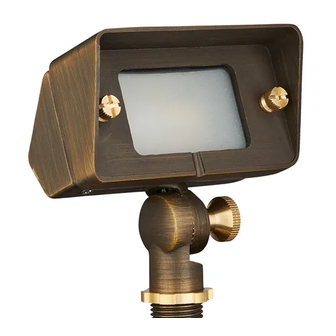

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® DiffusePro Flood Light ® AFL-4010-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE DiffusePro Flood Light ® AFL-4010-4-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Stake B. (1) Luminaire Product Dimensions 4” 2” 1.5” Install Stake Determine the desired location for mounting Board the luminaire. Hammer the stake into the ground until the flange of stake is flush to grade. To avoid damage to the stake, place a board on top of stake while hammering.
- Page 4 INSTALLATION & MAINTENANCE GUIDE DiffusePro Flood Light ® AFL-4010-4-B-BZ Remove Cover and Gasket with Lens Socket Lock Screw Cover Luminaire Gasket with Lens Loosen the lock screws and remove the cover and gasket with the lens from the luminaire to expose the socket.
- Page 5 INSTALLATION & MAINTENANCE GUIDE DiffusePro Flood Light ® AFL-4010-4-B-BZ Install Gasket with Lens and Cover Lock Screw Cover Luminaire Gasket with Lens Decide which lens you would like to use with this fixture. Then install the gasket with your lens of choice back onto the luminaire and secure with the lock screws.
- Page 6 INSTALLATION & MAINTENANCE GUIDE DiffusePro Flood Light ® AFL-4010-4-B-BZ Wire Connections Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 7 customersupport@amplighting.com • 813.978.3900 –7–...
- Page 8 Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AFL-4010-4-B-BZ-ver1.pdf...
