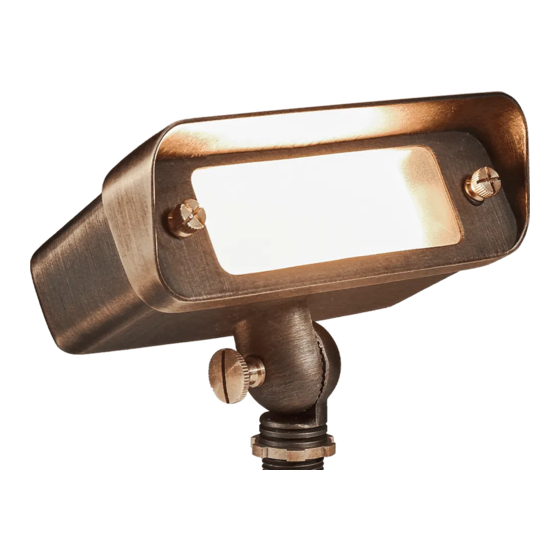

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® SpectrumPro R7S Flood Light ® AFL-4014-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE SpectrumPro R7S Flood Light ® AFL-4014-4-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body Product Dimensions 6.42” 3.75” 2” 3.15” Install Stake Determine the desired location Board for mounting the fixture. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while Stake hammering.
- Page 4 INSTALLATION & MAINTENANCE GUIDE SpectrumPro R7S Flood Light ® AFL-4014-4-B-BZ Install Fixture Body to Stake Fixture Body Clear away an area in the ground at the wireway slot on top of the stake. Lay the supply Wireway Slot wires into the wireway slot and...
- Page 5 Remove Glare Guard Fixture Body Set Screw Glare Guard Loosen the set screws and remove the glare guard from the fixture body. Install R7S Bulb Insert the R7S bulb with the Bulb Base correct wattage and type marked on the fixture label and push into place.
- Page 6 INSTALLATION & MAINTENANCE GUIDE SpectrumPro R7S Flood Light ® AFL-4014-4-B-BZ Install Glare Guard Fixture Body Set Screw Glare Guard Then place the glare guard back onto the fixture body and secure with the previously removed set screws. Hand tighten until snug.
- Page 7 Install/Replace Bulb Remove the glare guard to expose the R7S bulb and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the glare guard. IMPORTANT: R7S bulb must be protected from moisture and dust at all times.
- Page 8 Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AFL-4014-4-B-BZ.ver1...
