Mocka Eclipse Assembly Instructions Manual page 9

Eclipse Buffet
Assembly Instructions
15
Door x 4
F
F
G
Tighten the
screws 90%..
N
N
M

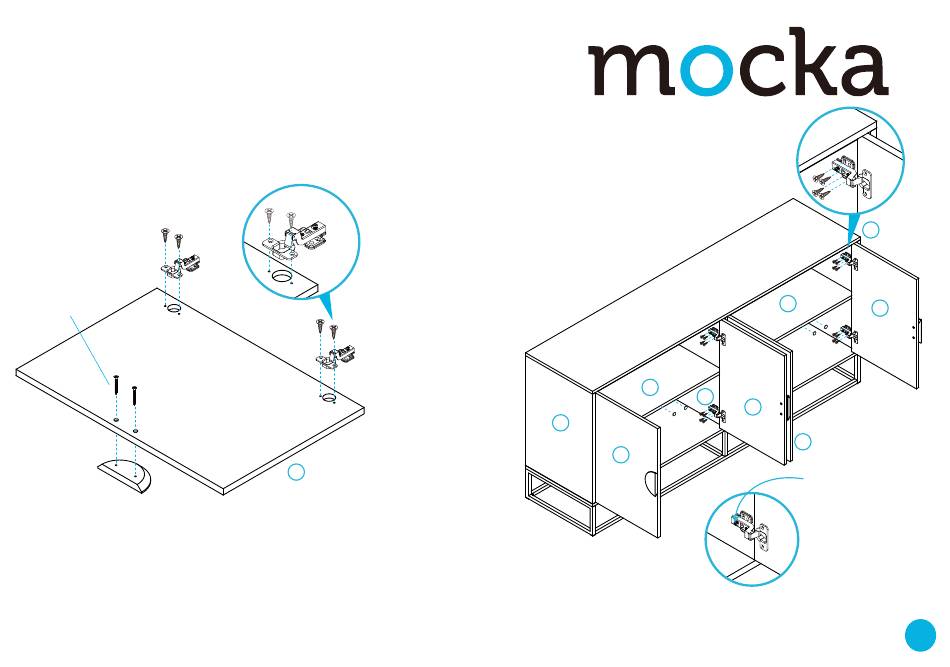

Attach 2x hinges (G) to panel [14] using 4x screws (F), and attach 1x handle (M)
to panel [14] and secure with 2x screw (N). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
F
F
G
F
F
G
14
16
F
6
5
O
3
F
14
Attach hinges on panels [14] to panels [3], [4] and [5] and secure
with 32x screws (F). Tighten with a screwdriver. Attach 4x buffer
plates (O) to panels [6] as shown. Ensure the doors open and
close easily.
F
4
F
6
14
O
F
14
14 14
NOTE: If the doors are
uneven or there is a gap
in the middle, loosen or
tighten the screw on the
door hinge until they are
sitting flush.
9
