Mocka Eclipse Assembly Instructions Manual page 10

Eclipse Buffet
Assembly Instructions
17
V
Z
W
V
7
Z
W
7

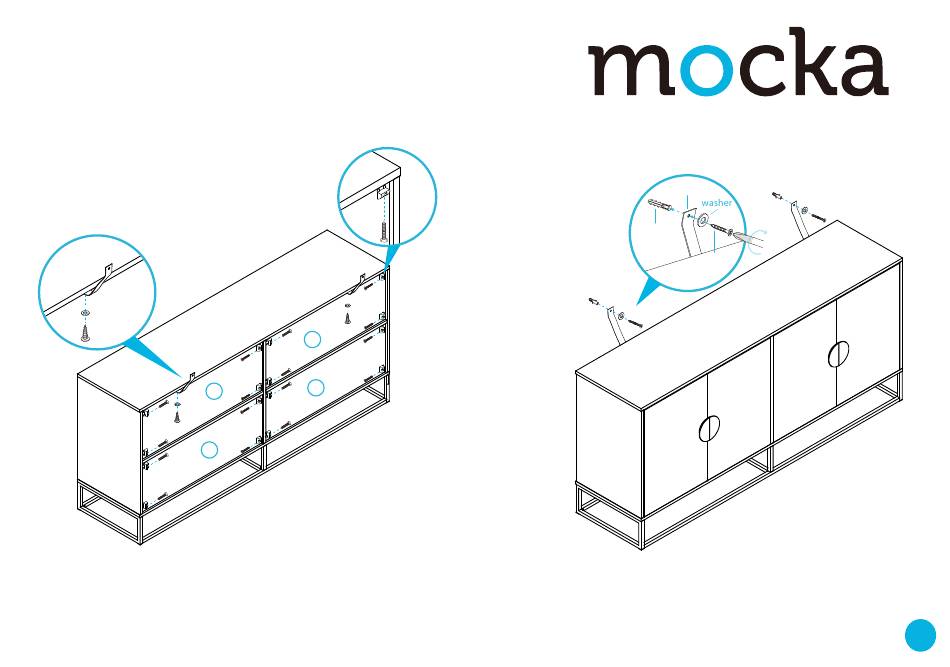

Attach 16x wedges (J) into the corners of the back of the unit and secure
with 16x screws (K). Tighten with a screwdriver. Attach 2x safety straps (V)
to the top of the back side of the unit as shown using 2x washers (Z) and
2x screws (W). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
J
K
V
Z
W
7
7
18
strap
wall
anchor
screw
X
Z
Y
Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V).
Fasten to the wall using 2x washers (Z), 2x wall anchors (X) and
2x wall screws (Y). Ensure unit is balanced and steady before
use. You're done, enjoy!
X
Z
Y
10
