Mocka Essentials Small Bookcase
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
x18
nut x18
x16
H
F
G
screw
screw
stopper
x8
x8
x2

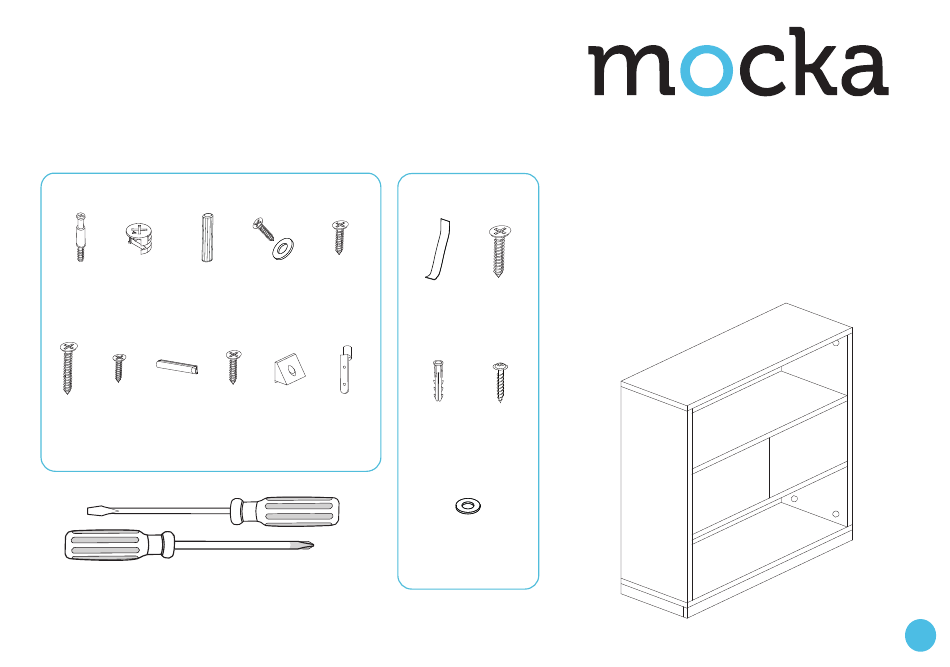

Hardware Supplied
Phillips & Flathead screwdrivers required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
D
E
screw
washer
set x2
x4
I
J
K
screw
wedge
hinge
x10
x10
x4
WARNING:
W
to tip over in certain circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake. Accordingly, we recommend
that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your
product tipping. The fixing device provided should fit most wall types, but
please note that different wall materials may require different fixing
devices from those supplied.
safety
screw
strap x2
x2
Y
X
wall
r/washer
anchor
screw
x2
x2
Z
washer
x2
Wall Strap
Any furniture that is not anchored to a wall has the potential
1
Advertisement
Table of Contents
Related Manuals for Mocka Essentials Small Bookcase
Summary of Contents for Mocka Essentials Small Bookcase
- Page 1 Mocka Essentials Small Bookcase Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Mocka Essentials Small Bookcase Assembly Instructions Separate the 2x stoppers (H) as shown and attach the bracket parts to Attach panel [3] and [4] to panel [6] using 4x dowels (C), 4x bolts (A) and panel [3] using 4x screws (E). Tighten with a screwdriver. Cover each secure with 4x locking nuts (B).
- Page 3 Mocka Essentials Small Bookcase Assembly Instructions Slide panel [5] down along the grooves between panels [3] and [4]. Attach panel [6] to panels [3] and [4] using 4x dowels (C), 4x bolts (A) and secure with 4x locking nuts (B). Tighten with a screwdriver.
- Page 4 Mocka Essentials Small Bookcase Assembly Instructions Attach 2x safety straps (W) to panel [1] using 2x r/washer screws (Y). Attach panel [8] to panels [7] and [9] using 2x bolts (A) and secure with Tighten with a screwdriver. 2x locking nuts (B). Now attach panels [7], [8] and [9] to panel [2] as shown, using 8x screws (F).
- Page 5 Mocka Essentials Small Bookcase Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panel [1] to panels [6] using 4x dowels (C), 4x bolts (A) and Attach 10x wedges (J) to panel [5] using 10x screws (I) as shown. secure with 4x locking nuts (B). Attach panel [2] to panels [6] using 4x Tighten with a screwdriver.
- Page 6 Mocka Essentials Small Bookcase Assembly Instructions Cupboard Doors Attach 1x hinge (K) to each door panel [10] and [11] and secure with 2x Insert 2x hinges (K) into shelf panel [4]. screws (G). Attach 1x washer set (D) to each door and tighten with a screwdriver.
- Page 7 Mocka Essentials Small Bookcase Assembly Instructions strap wall plug screw Once assembled lift furniture into place, do not drag. Use a drill to create Slip the doors [10] and [11] into place on the upper hinges (K). Attach a small hole lining up with the top of the safety strap (W). Fasten to wall the lower hinges (K) to the doors using 4x screws (G).
