Silhouette SPX Motion Adjustment Instructions

SPX Motion

Adjustment Instructions

HOW TO ADJUST BRIDGE:

• Use air heater with small cone

• Fix trim with assembly pliers (pic 1)

NOTE: do not overheat plastic parts!

• Use air heater with small cone

• Warm bridge carefully until SPX loses tension

NOTE: do not overheat plastic parts or ophthalmic lenses!

(approx 176

• Form it at room temperature

• Warm up carefully until SPX loses tension

(approx 176

• Keep position until bridge has cooled down

• Form manually when SPX component becomes soft (pic 2)

• Keep in position until trim has cooled down

• Position round stick (1.5-2 mm diameter) close to the hinge

• Fold the temple and press together with thumb

Table of Contents

Do you have a question about the SPX Motion and is the answer not in the manual?

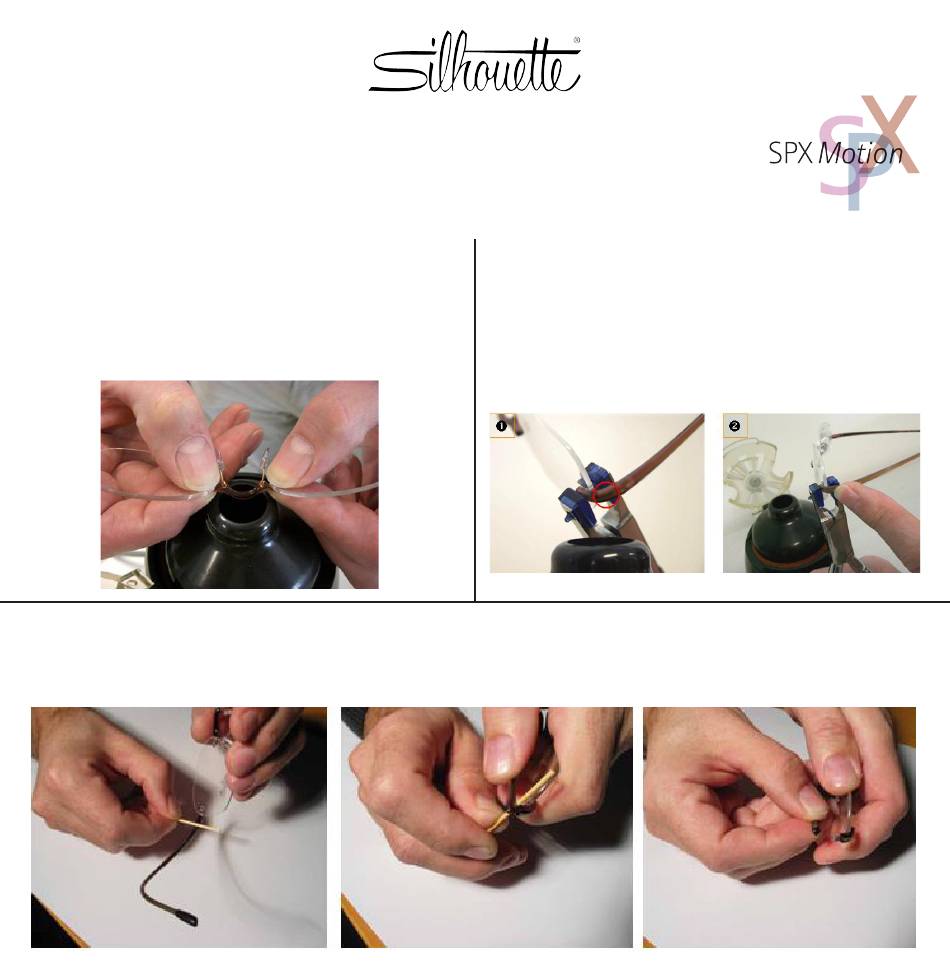

Page 1 SPX Motion Adjustment Instructions HOW TO ADJUST BRIDGE: HOW TO ADJUST TRIM: • Use air heater with small cone • Fix trim with assembly pliers (pic 1) NOTE: do not overheat plastic parts! • Use air heater with small cone •...
