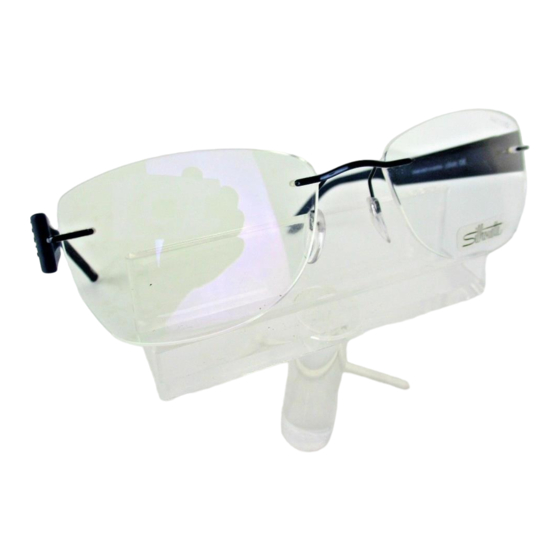

Silhouette SPX Compose Technical Instructions

Silhouette SPX Compose Technical Instructions

Advertisement

Quick Links

SPX Compose
Technical Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPX Compose and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silhouette SPX Compose

  • Page 1 SPX Compose Technical Instructions...
  • Page 2 Inclination 1. Hold lens fixation firmly with 3. Enclose temple edge firmly and mounting pliers. adjust inclination on titanium side part in direction shown. 2. Open temple completely.
  • Page 3 Adjusting Temple Opening Enlarge Reduce...
  • Page 4: Temple Disassembly

    Temple Disassembly 1. Place disassembly tool 2. Close temple and 3. Temple will loosen at hinge to stop. Select press behind round with a click. diameter of round stick stick. closest to the distance between temple and lens.
  • Page 5 Hinge Greasing with Teflon After cleaning, grease inside loop of hinge with Teflon high precision lubricant from mounting box P 0033. Ready to mount temple.
  • Page 6: Temple Assembly

    Temple Assembly PRESS 1. Place side part exactly at holes of 2. Apply counter pressure on frame the SPX temple. side part. 3. Press SPX temple into titanium side part.
  • Page 7 Adjusting Temple 1. Warm up SPX temple with heater 2. Shape ergonomics of temple and to maximum 70°C (158°F) for hold at room temperature until approx. 2 minutes. temple has cooled down.
  • Page 8 Adjusting Temple End Behind Ear − Titanium inlay inside temple end enables cold adjustment. − Curve temple in large movements. − If necessary only slight heating to a maximum of 70°C. − Do not bend!
