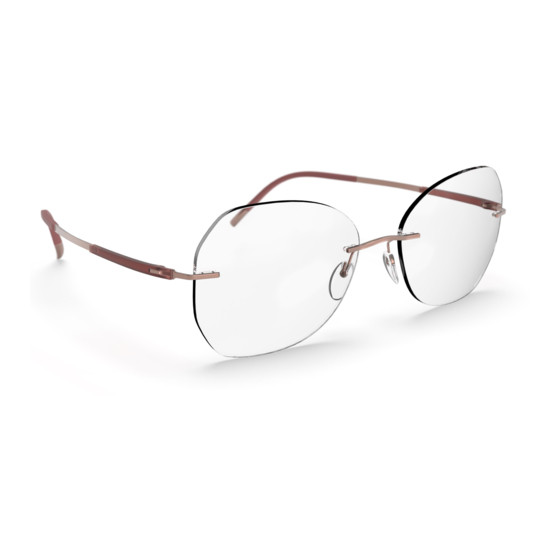

- Page 1 Titan Contour Technical Instructions...
- Page 2 Inclination 1. Hold lens fixation firmly with 3. Enclose temple edge tightly and mounting pliers. adjust inclination on titanium side part in direction shown. 2. Open temple completely.
- Page 3 Adjust Temple Opening Enlarge Reduce...
- Page 4 Temple Disassembly 1. Place disassembly tool at hinge. 2. Close temple and press behind round Select correct diameter of round stick. stick according to distance 3. Temple will loosen with a click. between temple and lens.
- Page 5 Grease hinge with Teflon After cleaning grease inside loop of hinge with Teflon high precision lubricant out of mounting box (P 0033), then mount lenses.
- Page 6 Temple Assembly PRESS 1. Place side part at temple holes. 2. Apply counter pressure on side part. 3. Press temple into side part.
- Page 7 Adjust Temple End 55 mm − Curve temple end in large movements to adjust behind the ear. − Do not over bend.
