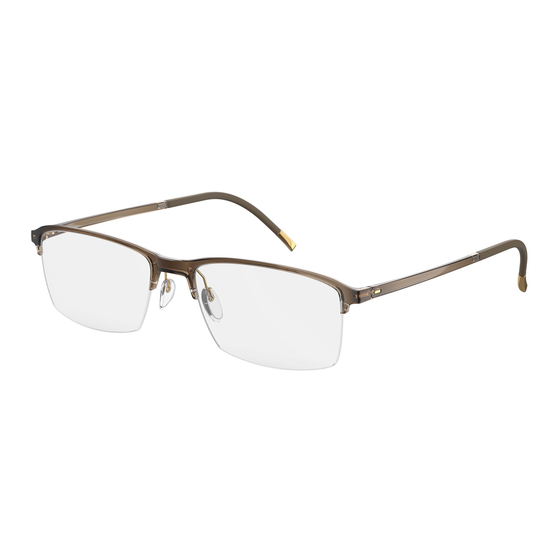

- Page 1 SPX Illusion Nylor Technical Instructions 26 March 2019...
- Page 2 SPX Illusion Nylor — General Information Silhouette Nylor Mounting Tool Note groove width and depth Part number: VGLH3 • easy to handle • smooth surface • thinner than other nylor tools • 1 end is tapered • foldable material 26 March 2019...
- Page 3 SPX Illusion Nylor — General Information Part number: NY 2 – nylor thread Part number: AP 11 – nylor thread fixation plate 26 March 2019...
- Page 4 Nylor Thread Exchange — SPX Illusion Nylor 2. Insert the nylor thread through 1. Use a lighter to melt a small ball the nasal hole making sure the at the end of the nylor thread melted ball fits in the frame...
- Page 5 Nylor Thread Exchange — SPX Illusion Nylor 3. Insert the nylor thread through 4. Insert the nylor thread from the one hole of the AP 11 fixation outside of the frame back plate and the lower frame hole through the frame and the...
- Page 6 Nylor Thread Exchange — SPX Illusion Nylor 5. Verify that the fixation plate is 6. Size the nylor thread to hold seated in frame recess lens tight and trim excess 26 March 2019...
- Page 7 Nylor Thread Length Change — SPX Illusion Nylor 1. Push nylor thread through lower temporal hole 2. The loop will increase and fixation plate may loosen 3. Adjust the length of nylor thread 4. Once length is determined, verify the fixation plate is in recess of frame 5.
- Page 8 Inclination — SPX Illusion Nylor 1. Open the temple 2. Support the frame at the hinge area with your thumb and index finger 3. Incline the temple at the hinge 26 March 2019...
- Page 9 Temple Disassembly — SPX Illusion Nylor 1. Close temple and grab it with your 2. Using pressure on your index finger, thumb and index finger press the temple out of the frame 26 March 2019...
- Page 10 Temple Assembly — SPX Illusion Nylor Align the temple opening with the hinge and press it on hinge 26 March 2019...
- Page 11 Temple Shortening, Glued Temple — SPX Illusion Nylor 1. Squeeze the most forward part of the 3. Shorten titanium wire with temple cover with a plastic-tip plier metal-diagonal cutter to break the glue bond 4. File down sharp edges and burrs 2.
- Page 12 Temple Shortening Glued Temple — SPX Illusion Nylor 5. Carefully remove remaining glue 6. Trim temple cover to desired length with sharp blade to match the original angle 26 March 2019...
- Page 13 Temple-End Gluing — SPX Illusion Nylor 1. Apply a small amount of glue (ex: Loctite 406) on the inside of the titanium wire as shown above 2. Slide the temple cover back onto the titanium wire and wipe off excess glue...
- Page 14 Adjusting Temple End — SPX Illusion Nylor 1. Adjust the temple to the ear shape with large curves 2. During temple adjusting do not put pressure on the temple tip 26 March 2019...
- Page 15 26 March 2019...
