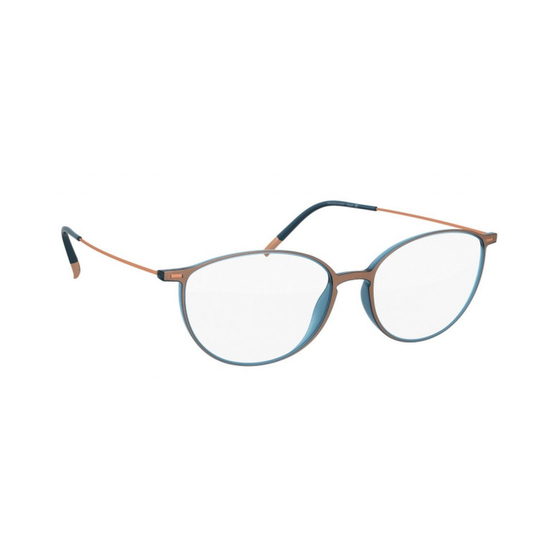

- Page 1 Urban NEO Technical Information Mod. 1580, 2907, 2908, 2909...
-
Page 2: Urban Neo Fullrim | Glazing
Urban NEO Fullrim | Glazing Recommendation for Optical Lenses Frame is designed with 5.0 base curve Other base curves are possible Groove should be cut to a 5.0 curve on lenses that have flatter front curves Plastic spectacle lens index 1.6, 1.67, Trivex or polycarbonate ... -
Page 3: Urban Neo | Grooving
Urban Neo | Grooving Groove depth and width for inline glazing: Do not heat eyewire to insert lenses! Cold insert only!! If the lens is large, it must be resized! -
Page 4: Urban Neo | Inserting Lens
Urban Neo | Inserting lens 1. Insert the lens from the rear, starting with the nasal corner. . 2. Continue inserting the lens along the top to the temporal corner, then around the lens circumference until the lens snaps into place. -
Page 5: Urban Neo | Removing Lens
Urban Neo | Removing lens Partially push back and separate the SPX Frame from the lens – separating the SPX edge from the lens groove, allowing the removal of the lens. - Page 6 Urban Neo | Inclination 1. Open the temple. 2. Hold the frame at the hinge area with your thumb and index finger. 3. Incline the temple at the hinge...
- Page 7 Urban Neo | Enlarge temple opening 1. Open the temple. 2. Hold the frame at the end piece with your thumb and index finger. 3. Press the temple outward with your thumb.
- Page 8 Urban Neo | Reducing temple opening 1. Open the temple. 2. Hold the frame at the hinge area with your thumb and indexfinger. 3. Press the temple inward with your index finger.
- Page 9 Urban Neo | Temple contouring Use large curves to adjust the temple to fit the head...
- Page 10 Urban Neo | Temple end adjustment Adjust the temple to the ear shape with large curves. During temple- end adjusting do not put pressure on the temple tip.
- Page 11 Urban Neo | Temple shortening Pull off temple end.
- Page 12 Urban Neo | Temple shortening 1. Shorten titanium wire with metal-diagonal cutter. 2. File down sharp edges and burrs.
- Page 13 Urban Neo | Temple shortening Squeeze titanium wire with round pliers at the very end. The notch you just created at the end of the temple prevents the temple end from slipping off...
- Page 14 Urban Neo | Temple demounting Bring the temple in a closed position and grab it with your thumb and index finger. With pressure on your index finger the temple will click out.
- Page 15 Urban Neo | Temple mounting Align the temple with the hinge and press it in with your thumb.
- Page 16 Urban Neo | Teflon After cleaning the frame in an ultrasonic bath relubricate the hinge with Teflon...
