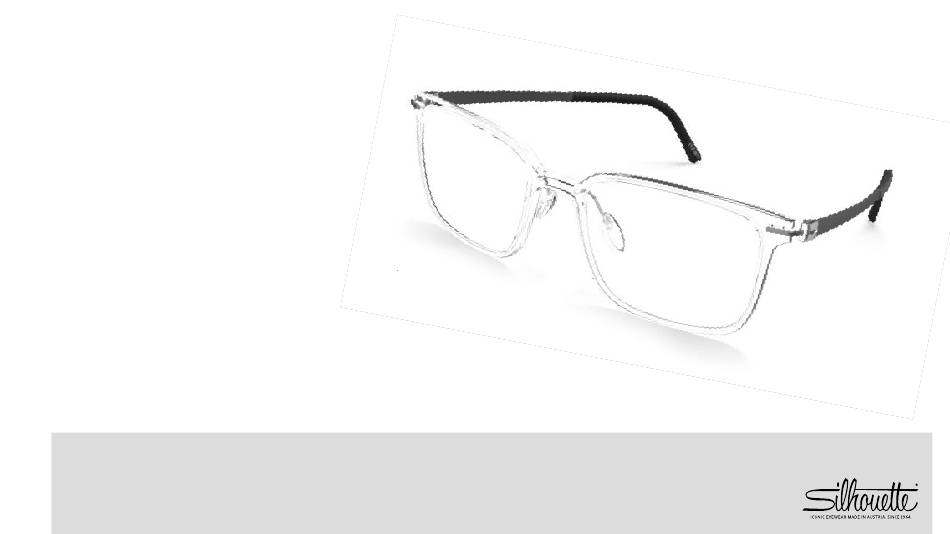

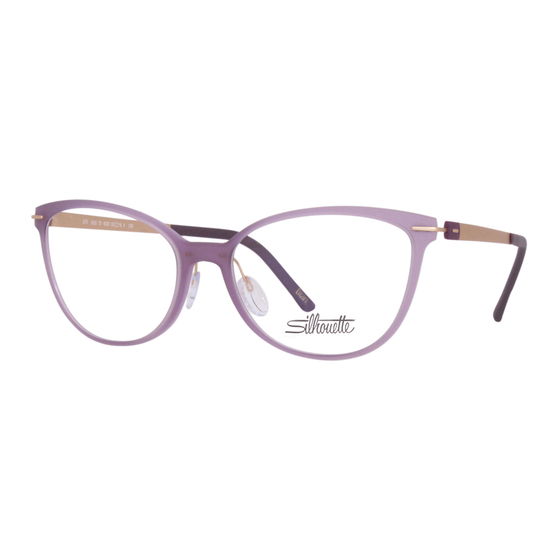

- Page 1 Infinity View Technical Instructions Models 1600, 2937, 2938, 2939 V-Bevel Edging...
- Page 2 Silhouette Vision Sensation ® ® lenses perfectly match the curve of every Silhouette frame. This results in a 100% Silhouette eyewear solution that offers the wearer exceptional visual comfort and edge to edge clarity. For more information visit: https://www.silhouette.com/us/us/vision-sensation...
- Page 3 Infinity View | Temple Mounting Mount temples on frame front using BLS 58 sleeve and Silhouette mounting plier with turquoise or blue tip.
- Page 4 Frame is designed with a 5.0 base curve, however other base curves will work Lenses with base curves flatter than 5.0 should have V-bevel cut to match 5.0 base curve Recommended lenses are High Index 1.6, 1.67, Polycarbonate and Trivex OMA shape files available at https://portal.silhouette.com www.silhouettelab.com...
- Page 5 Infinity View | Cold Glazing Cold insert lenses in all Infinity View frames! Do not heat the frame under any circumstance! Lenses that are too large will need to be resized! Always insert lenses from the back of the frame! TECHNICAL INFORMATION INFINITY VIEW...
- Page 6 Infinity View| Lens Insertion V-Bevel Fullrim 1. Insert the lens from the rear, starting with the nasal corner. 2. Continue inserting the lens along the top to the temporal corner. 3. Continue around the lens circumference until the lens snaps into place.
- Page 7 Infinity View | Lens Removal 1. At the bottom of the frame, partially push frame back and separate the frame from the lens 2. Push lens out of frame toward the front TECHNICAL INFORMATION INFINITY VIEW...
- Page 8 Inclination | Infinity View 1. Open the temple. 2. Support the temple mount with the Silhouette mounting pliers. 3. Incline the temple at the endpiece in the desired direction. TECHNICAL INFORMATION INFINITY VIEW...
- Page 9 Infintity View | Temple Opening Increase 1. Open the temple. 2. Support the temple mounting with Silhouette mounting pliers. 3. Press the temple out at the endpiece with thumb or index finger. TECHNICAL INFORMATION INFINITY VIEW...
- Page 10 Infinity View | Temple Opening Decrease 1. Open the temple. 2. Support the temple mounting with Silhouette mounting pliers. 3. Press the temple in at the endpiece with thumb or index finger.. TECHNICAL INFORMATION INFINITY VIEW...
- Page 11 Infinity View | Temple Bend Adjustment 1. Adjust the temple to the ear shape with large curves. 2. Temple can be heated to aid adjustment. 3. During temple-end adjusting do not put pressure on the temple tip. TECHNICAL INFORMATION INFINITY VIEW...
- Page 12 Infinity View| Temple Shortening - Glued 1. Straighten the end of the temple. 4. Shorten titanium wire with metal- diagonal cutter. 2. Break the adhesive bond by squeezing with with double-jaw padded pliers. 5. File down sharp edges and burrs. 3.
- Page 13 Infinity View| Temple Shortening - Glued 6. Gently remove 7. Cut plastic temple end to required remaining glue. length with sharp blade in the original angle. TECHNICAL INFORMATION INFINITY VIEW...
- Page 14 Infinity View| Temple Shortening - Glued 8. Reinstall temple cover. 9. Apply a small amount of glue on the inside of the titanium wire as shown. 10.Slide the temple cover fully onto the titanium wire, wipe off excess glue. TECHNICAL INFORMATION INFINITY VIEW...
- Page 15 Infinity View | Temple Removal 1. Close the temple and hold the lens mount with your thumb and index finger. 2. Using other hand, pull the temple off from the endpiece in direction shown by red arrow. TECHNICAL INFORMATION INFINITY VIEW...
- Page 16 Infinity View | Temple Install 1. Support the frame front as shown. 2. With the temple in the closed position, align the temple to the hinge elements on the endpiece with the temple slots 3. Press temple onto the endpiece TECHNICAL INFORMATION INFINITY VIEW...
- Page 17 Infinity View | Teflon Lubricant After cleaning the frame in an ultrasonic bath, relubricate the hinge with Teflon. TECHNICAL INFORMATION INFINITY VIEW...
- Page 18 Additional information | Infinity View Cleaning in an ultrasonic bath or with ethanol is possible. Avoid high temperatures such as the dashboard in the car or the sauna. Always use the supplied case for storage. TECHNICAL INFORMATION INFINITY VIEW...
