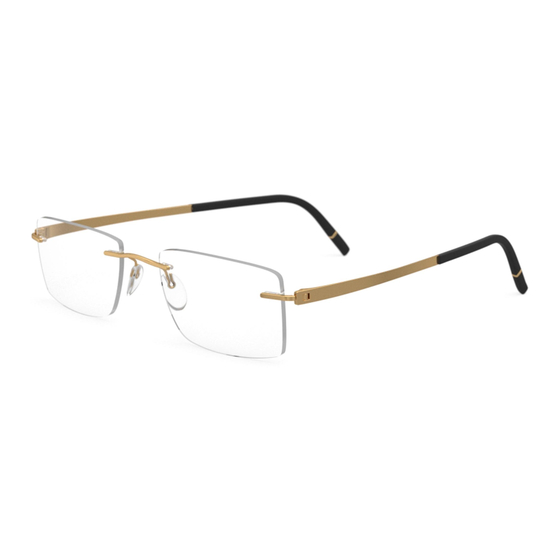

Silhouette Momentum Series Technical Instructions

Silhouette Momentum Series Technical Instructions

Chassis 5529

Advertisement

Quick Links

Momentum Collection
Chassis 5529
Technical Instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Momentum Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silhouette Momentum Series

  • Page 1 Momentum Collection Chassis 5529 Technical Instructions...
  • Page 2 Glazing | Momentum Optimal prescription base curve of 5.0 Silhouette plier with turquoise or purple tip. BLS 58/97/98 for glazing...
  • Page 3 Inclination | Momentum 2. Holding endpiece at the Support lens mounting with mounting hinge, bend the endpiece in pliers. This will prevent stress on the the required direction to lens mounting. achieve proper inclination.
  • Page 4 Temple opening | Momentum 1. Support lens mounting with mounting pliers. 2. Apply pressure on hinge area with your thumb from inside.
  • Page 5 Temple closing | Momentum 1. Support lens mounting with mounting pliers. 2. Apply pressure at hinge area from the outside...
  • Page 6 Temple removal | Momentum 1. Use Silhouette demounting tool 3. Carefully remove the inner plastic from below to partially remove the part with a 1mm drill by carefully pin from the pin-cision hinge. rotating the drill by hand. 2. Remove the pin with tweezer or 4.
  • Page 7 Temple mounting | Momentum 1. Partially insert the plastic sleeve 2. Bring the temple and the hinge into the temple from the top together and align holes. Gently press the sleeve through with double padded flat pliers...
  • Page 8 Temple mounting | Momentum 1. Use tweezers or pliers to partially 2. Press the pin into the hinge with insert the titan pin into the sleeve double padded flat pliers from above.
  • Page 9 Temple shortening glued temple I Momentum 1. Gently squeeze the forward part of the 3. Shorten titanium wire with temple cover with a plastic tip plier to metal-diagonal cutter. break the glue bond 4. File down sharp edges and burrs. 2.
  • Page 10 Temple shortening glued temple I Momentum 5. Remove remaining glue. 6. Cut plastic temple cover to desired length with sharp blade to match the original angle...
  • Page 11 Temple end gluing I Momentum 1. Test fit the temple cover on the shortened temple tip. 2. Apply a small amount of glue ( e.g. Loctite 406) on the inside of the titanium wire. 3. Slide the temple cover back onto the titanium wire and wipe off excess glue.
  • Page 12 Adjusting temple end | Momentum 1. Adjust the temple to the ear shape with large curves. 2. During temple end adjusting, do not put pressure on the temple tip.
  • Page 13 Additional Information | Momentum Clean frame with ultrasonic bath for a maximum of 3 minutes per operation or with ethanol/ethyl alcohol. These methods will not damage the frame. Avoid high temperatures like the car dashboard or saunas. Always store your frame in the supplied case. DO NOT USE TEFLON OR LUBRICANT AT THE HINGE...
