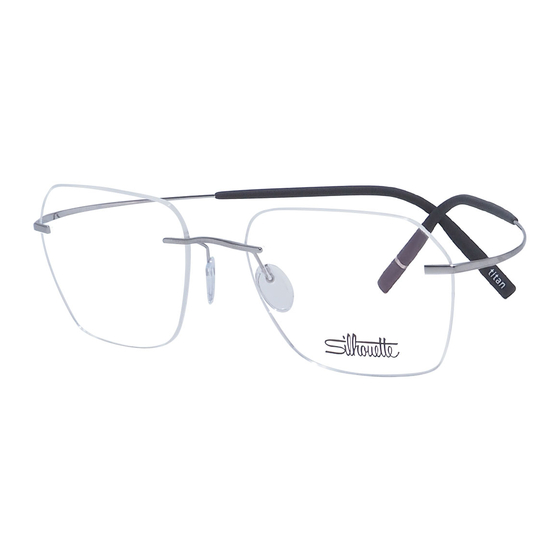

TMA – The Icon Technical Instructions
Model 5541

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5541 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silhouette 5541

  • Page 1 TMA – The Icon Technical Instructions Model 5541...
  • Page 2 Other lens base curves can be used and will require bridge adjustment Recommended lenses are High Index 1.6, 1.67, Polycarbonate and Trivex Use Silhouette pliers with gray or purple tip and BLS 58 sleeve for mounting OMA shape files and drill coordinates are available at: https://portal.silhouette.com www.silhouettelab.com...
  • Page 3 Inclination | TMA – The Icon Support temple and lens 2. Bend the temple in the mounting with mounting pliers to required direction prevent stress on lens mounting...
  • Page 4 Temple opening | TMA – The Icon Hold lens fixation firmly with your fingers and use the Blue multi-tool to enlarge the temple opening...
  • Page 5 Temple closing | TMA – The Icon Hold lens fixation firmly with your fingers and use the Blue multi-tool to reduce the temple opening...
  • Page 6 Temple shortening non-glued | TMA – The Icon Pull off temple end...
  • Page 7 Temple shortening non-glued | TMA – The Icon 1. Shorten titanium wire with metal-diagonal cutter 2. File down sharp edges and burrs...
  • Page 8 Temple shortening non-glued temple I TMA – The Icon Squeeze titanium wire with round pliers at the very end to ensure the stability of the temple end and reinstall temple cover...
  • Page 9 Adjusting temple end | TMA – The Icon Adjust the temple to the ear shape with large curves. During temple-end adjusting do not put pressure on the temple tip...
  • Page 10 Additional Information | TMA – The Icon Clean with ultrasonic bath or with ethanol/ethyl alcohol. These methods will not damage the frame. Lenses with AR coatings could be damaged in ultrasound bath. Use caution with these lenses. Always store your frame in the supplied case.
