Summary of Contents for Silhouette Titan Harmony

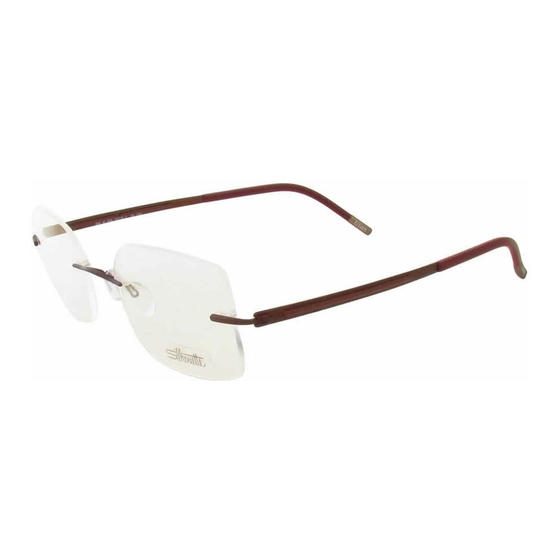

- Page 1 Titan Harmony Titan Sculpture Technical Instructions...
- Page 2 Inclination Inclination groove 1. Inclinate at the groove of the titanium side part. Hold lens fixation 2. Hold temple edge on both sides in the firmly. hinge area and adjust inclination angle.
-
Page 3: Temple Disassembly
Temple Disassembly 1. Hold lens fixation firmly. 2. Bend temple slightly and pull it out of the BLS. Hinge should be totally straight. Do not fold temple. -
Page 4: Greasing The Hinge
Greasing the Hinge P0030 Grease inside loop of the hinge with a high precision lubricant. If necessary clean hinge beforehand. Mount disc hinge and assemble temple. -
Page 5: Fixing The Disc Hinge
Fixing the Disc Hinge BLS 89 Place the disc hinge form fit on both sides of the hinge loop. NOTE: The oval shape of the plug system ensures correct positioning. -
Page 6: Temple Assembly
Temple Assembly Place temple aligned at the slot of the hinge and click it in carefully until it stops. -
Page 7: Temple Opening
Temple Opening Enlarge Reduce 1. Hold lens fixation with pliers. 3. Hold lens fixation with pliers. 2. Press side parts firmly but controlled 4. Apply pressure on hinge from inside. against the safe edge of a table. Thumb should prevent pliers from slipping into the lens. - Page 8 Disassembly of the Temple End 1. Loosen the glue with small back and forth movements at the edge of the temple end. 2. Pull temple end off. 3. Shortening of the temple end is not possible due to the form fit construction of the temple end.
-
Page 9: Temple Curving - Adjustment
Temple Curving – Adjustment Adjust temple curve behind the ear by bending temple ends . Due to the metal needle inside the temple heating is not necessary.
