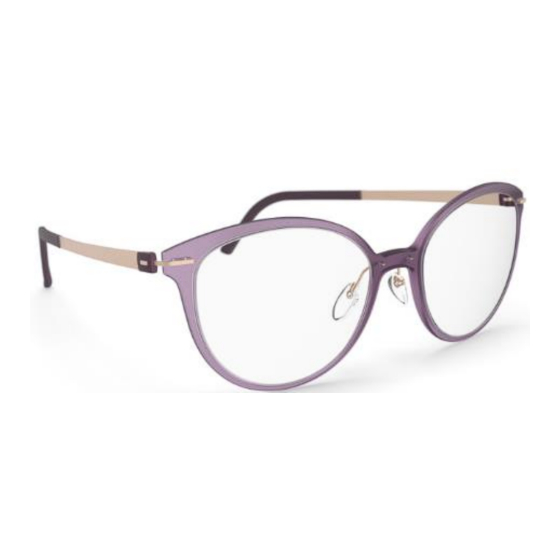

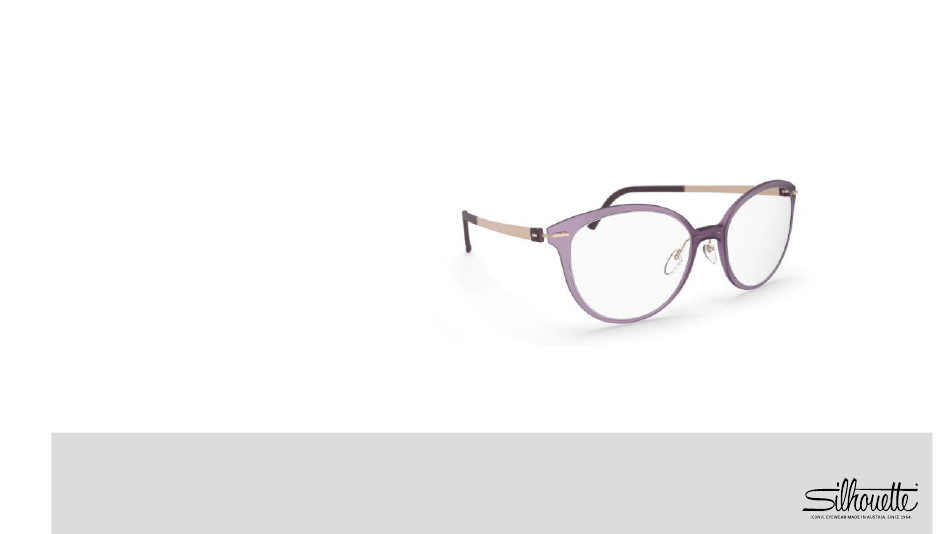

- Page 1 Infinity View Technical Instructions Models 1594, 1595, 2922, 2923...
- Page 2 Infinity View | Glazing with Silhouette Vision Sensation ® Lenses Silhouette now offers premium prescription lenses for all Silhouette frames. Expertly crafted in Austria using our exclusive Panorama ® lens designs, Silhouette Vision Sensation ® lenses perfectly match the curve of every Silhouette frame.
- Page 3 Patterns available from Silhouette customer service at 800-223-0180 Do not heat frame to aid lens insertion! If lenses are large, resize to allow cold insert. OMA shape files available at: Do not clean Infinity View frames with alcohol! https://portal.silhouette.com www.silhouettelab.com...
- Page 4 Infinity View | Fullrim Groove Glazing FULLRIM GROOVE GLAZING Lenses must be cut on-size and groove must follow size specification for proper lens retention. For best aesthetics, lens curve should match 0.6 mm the frame curve whenever possible to maintain the frame curve.
- Page 5 Silhouette Rubber Ring MH3 to prevent lens rotation. Lenses should not be cut large to prevent rotation as this could stress the frame. Do not heat frame to aid lens insertion! Do not clean Infinity View frames with alcohol based liquids!
- Page 6 Infinity View | End Piece Mounting Infinity View end pieces are attached to frame front using BLS sleeve. In the event of end piece needing replacement, use BLS 58 sleeve to remount. Compress using Silhouette mounting plier and turquoise or blue tip.
- Page 7 Infinity View | Lens Mounting 2. Continue inserting lens along the 1. Insert lens from back side of frame top to the temporal corner, starting at the nasal corner. continuing around circumference until lens snaps into place...
- Page 8 Infinity View | Lens Dismounting Partially push frame off lens toward the back and remove lens from front of frame.
- Page 9 Infinity View | Inclination 3. Hold end piece firmly and adjust 1. Open the temple. inclination into the required 2. Support BLS temple fixation position with fingers. firmly with the mounting pliers.
- Page 10 Infinity View | Temple Side Pressure Adjustment Hold the BLS temple fixation with the mounting pliers and press the temple end piece with your finger outward to open or inward with to close.
- Page 11 Infinity View | Temple Removal 1. Close the temple as shown and hold the 2. Grasp temple at hinge and pull off the frame near temple mounting. endpiece in the direction shown by arrow.
- Page 12 Infinity View | Temple Installing Align temple with the hinge and press on to endpiece.
- Page 13 Infinity View | Teflon Hinge Lubrication After cleaning the frame in an ultrasonic bath, re-lubricate the hinge with Silhouette Teflon Lubricant.
