Configuration of Altronix Power Supply and/or Sub-Assembly Boards

1. Fasten spacers onto metal pems configuration (A) or (B) of backplane depending on the board (Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Mount backplane to enclosure with hardware.
Position Chart for the Following Models:
Altronix Power Supply/Charger or Sub-Assembly
eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, or ACM8(CB), ACMS8(CB)
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), PD16W(CB) or VR6

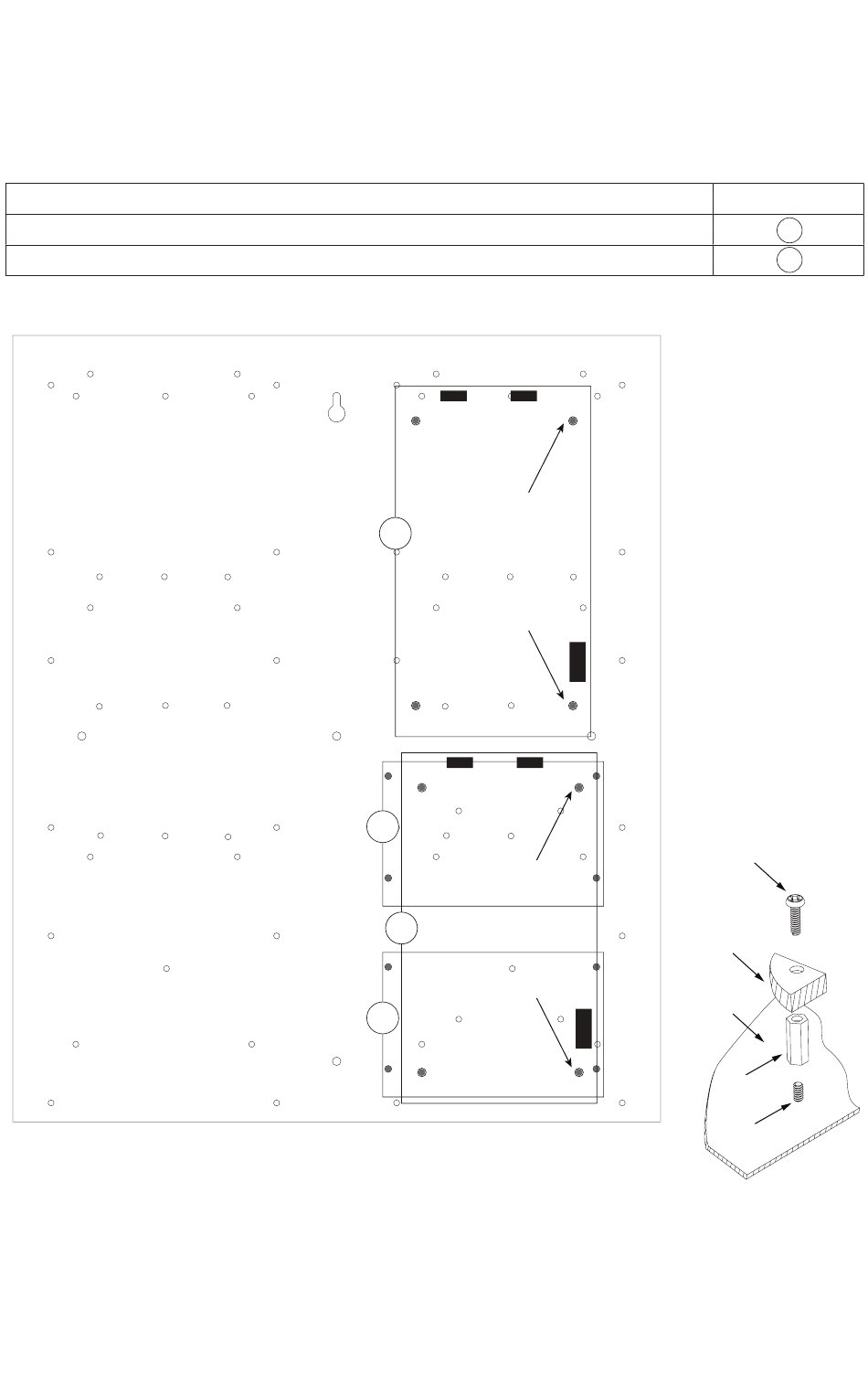

Fig. 5
Trove1SH1R Installation Guide
TSH1R:
Metal
A Spacer
Placement
for Altronix
Power
Supplies
B
Metal
Spacer
Placement
A
for Altronix
Power
Supplies
B
Pem Mounting
A
B
Fig. 5a
Pan Head Screw
Power Supply
or
Sub-Assembly
Backplane
Spacer
Pem
