Overview; Specifications; Optional Accessories - Altronix Trove1SH1R Installation Manual

Altronix Trove1SH1R rack mount access & power integration solution accommodates various combinations of
Software House boards with or without Altronix power supplies and accessories for access systems.
Agency Listings:
• CE European Conformity.
Trove1SH1R
Trove1R rack mount enclosure with TSH1R Altronix/Software House backplane.
• 16 Gauge black enclosure with ample knockouts for convenient access.
• Modular 2U standard EIA 19" drawer with extendable slides up to 48".
• Dimensions (H x W x D): 3.375" x 19.0" x 26.5" (85.8mm x 482.6mm x 673.1mm).
• Includes tamper switch (Altronix Model TS112 or equivalent) and cam lock.
TSH1R
Altronix/Software House backplane.
• 16 Gauge backplane.
• Dimensions (H x W x D): 18.5" x 15.25" x 0.3125" (469.9mm x 387.4mm x 7.9mm).

Optional Accessories:

• RE2: Rack Mount Battery Enclosure accommodates up to four (4) 12VDC/7AH batteries
• WM5, WM25, WM100: Magnetic Cable Tie Mounts (5, 25, 100 counts).
• LC3: 6 ft. three-wire line cord.
Backplane Accommodates a Combination of the Following:
Altronix:
• Up to two (2) eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, ACMS8(CB), or ACM8(CB).
• Up to two (2) ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), or VR6.
Software House:
• Up to two (2) iStar Ultra ACM or two (2) iStar ACM SE/PRO ACM.
• Up to six (6) I8, R8, or I8-CSI expansion modules.
Spacer |
- 2 -

Overview:

Specifications:

Hardware and Accessories:

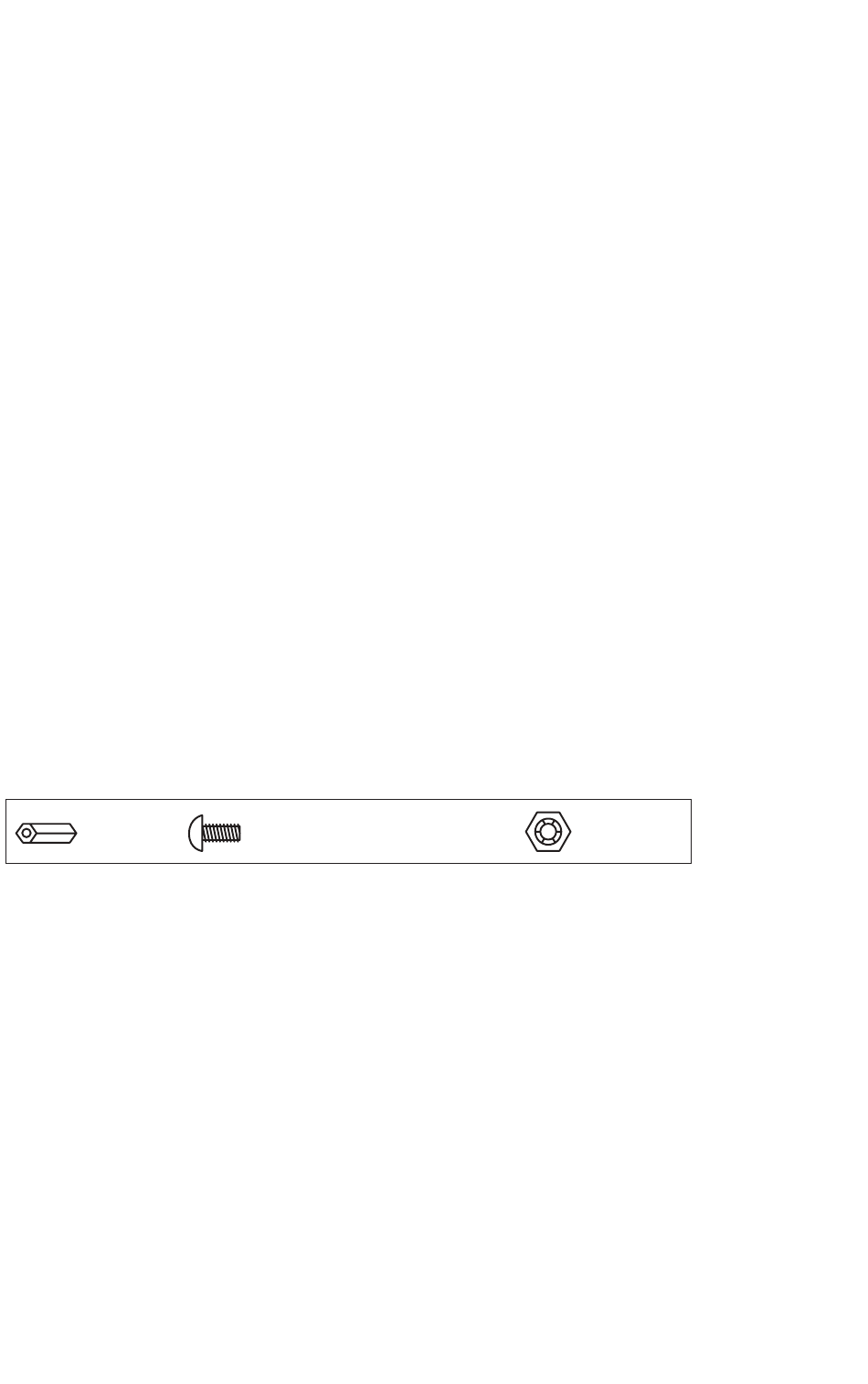

5/16" Pan Head Screw | Lock Nut
Trove1SH1R Installation Guide
