Baker Hughes Druck DPI 610 IS Instruction Manual page 57

4. Connect the mA in terminals of the instrument to a variable current source and connect a
digital ammeter in series with the supply:

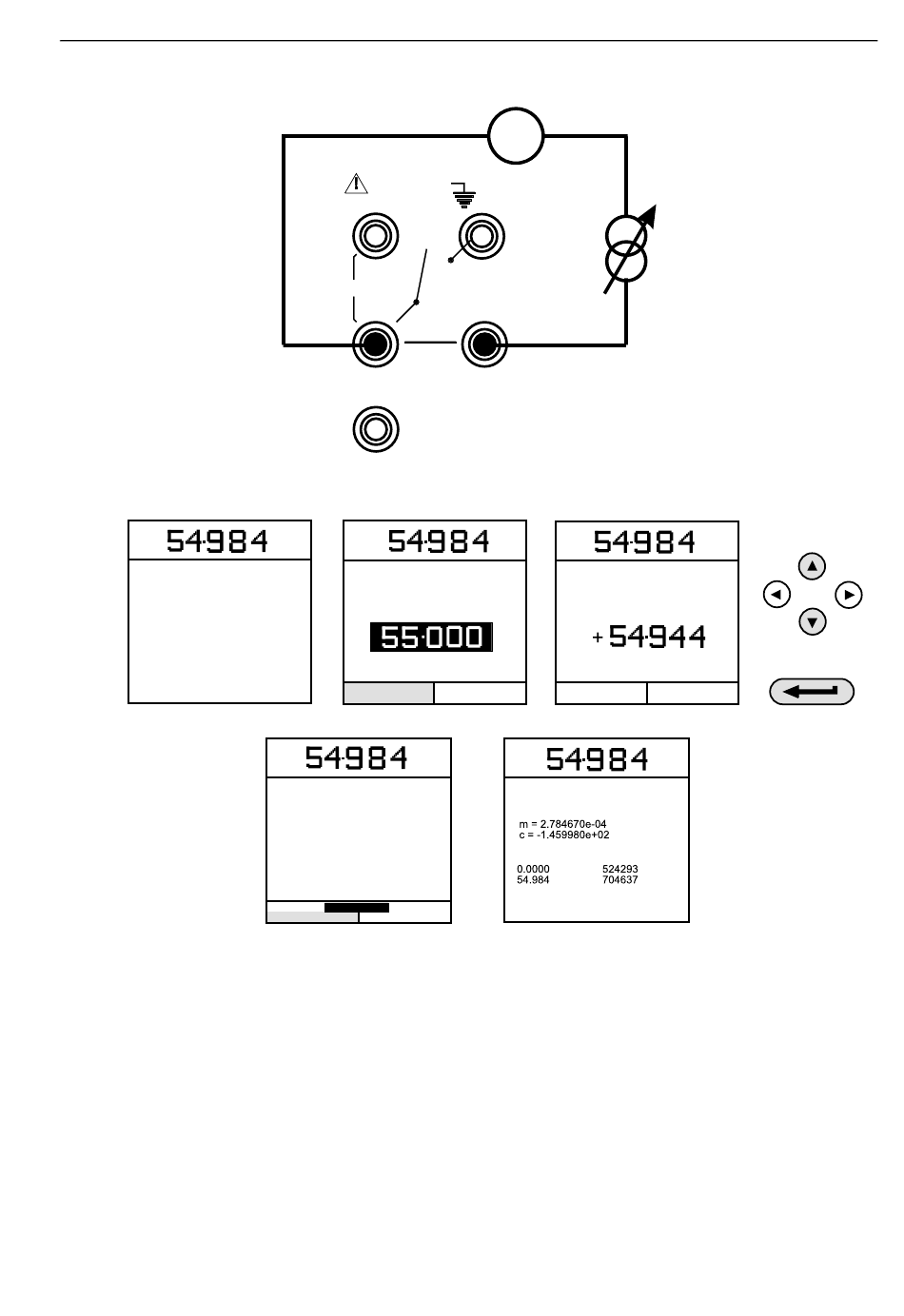

Figure 8-3: 55 mA Current Input Range Calibration Circuit
5. Set the input current to 55 ± 0.1 mA and enter the measured full-scale input current:
CALIBRATING CURRENT
RANGE +/- 55 mA
Apply nominal FS value
Press ENTER key when
applied value is stable
6. Press the ENTER key to accept the calibration. Press the EXIT key four times to quit the
CALIBRATION and SETUP modes.
7. Verify the instrument calibration by applying the test currents given in Table 8-4 on page 48
to the ammeter.
8. Disconnect the calibration/test equipment.
max 30V
Vin
mA in
CALIBRATING CURRENT
RANGE +/- 55 mA
Enter Applied Value:
CHANGE
VALUE
CALIBRATING CURRENT
RANGE +/- 55 mA
Store FS point?
YES NO
Current Input Range (55 mA)
A
-
+
55mA
max
CALIBRATING CURRENT
RANGE +/- 55 mA
Enter Applied Value:
RUN CHANGE
VALUE
CALIBRATING CURRENT
RANGE +/- 55 mA
RESULTS
Applied Measured
Calibration Complete
Press ENTER to continue
English–DPI 610/615 IS Instruction Manual | 47
CHANGE VALUE
