Page 3
This equipment is safe when you use the procedures in this manual. Do not use this equipment for any other purpose than that specified. This is because the protection given by the equipment can be reduced or canceled. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | i...
Page 4
Please write to your local or regional waste administration if you need more information on the collection, reuse, and recycling systems. Please use the link below for take-back instructions and more information about this program. https://qrco.de/dsweee Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | ii...
Page 5
Minute or minimum MSDS Material Safety Data Sheet National Pipe Thread Process Automation Part Number POTD Pressure of the day Pounds per square inch Query: Field Elevation Query: Nautical Height Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | iii...
Page 6
Abbreviation Description Relative Humidity RS-232 Serial communications standard Thermocouple Universal Serial Bus Volts °C Degrees Celsius °F Degrees Fahrenheit Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | iv...
Page 8
How to add Tasks to the Dashboard How to remove Tasks from the Dashboard General Settings DATE, TIME and LANGUAGE BACKLIGHT COMMUNICATIONS AUTO POWER DOWN TOUCHSCREEN LOCK ENABLE HOLD ADVANCED Copyright 2022 Baker Hughes Company. English–DPI 610E Instruction Manual | ii...
Page 9
Altitude Switch Test 8.5.1 How to do an Altitude Switch test (Accessible Switch Contacts) 8.5.2 How to do an Altitude Switch test (Non-accessible Switch Contacts) 144 Airspeed Leak Test Copyright 2022 Baker Hughes Company. English–DPI 610E Instruction Manual | iii...
Page 10
10.6.3 How to erase Data Log Files 10.7 How to copy a Data Log file Analysis 11.1 Overview 11.2 Analysis Application 11.3 Setup 11.3.1 START/END Values 11.3.2 LINEARITY 11.3.3 ERROR TYPE Copyright 2022 Baker Hughes Company. English–DPI 610E Instruction Manual | iv...
Page 11
13.3.3 Measure Variables 13.3.4 Signal Condition 13.3.5 Sensor Information 13.4 HART Service Methods 13.4.1 LOOP TEST 13.4.2 D/A OUTPUT TRIM 13.4.3 PRESSURE ZERO TRIM 13.5 HART Error and Message Codes Copyright 2022 Baker Hughes Company. English–DPI 610E Instruction Manual | v...
Page 12
16.8.1 How to export and view Exported Error Log files 16.9 EVENT LOG 16.9.1 How to export and view Exported Event Log files Favorites Menu 17.1 Favorites Menu Options 17.1.1 Save Current Calibrator Task Copyright 2022 Baker Hughes Company. English–DPI 610E Instruction Manual | vi...
Page 13
17.6 How to get access to Favorite Files through the File System General Specification 18.1 Leak Rates 18.2 Open Source Software Licenses Manufacturer 19.1 Contact details Appendix A. COMPLIANCE STATEMENTS FCC (USA) CANADA Copyright 2022 Baker Hughes Company. English–DPI 610E Instruction Manual | vii...
11. Certificates Document Pack (IS product only) 12. Factory Calibration Certificate. 1.2 Specifications for DPI610E Refer to www.druck.com/dpi610e for the Data sheet that gives the technical specifications for the DPI610E. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 3...
Do not use this instrument for a function that is not in this manual. Incorrect use can reduce safety. Follow all the operation and safety instructions in the Quick Start and Safety Manual. Use approved Technicians and good engineering practice for all procedures in this manual. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 4...
External circuits must have applicable insulation to the mains. WARNING This instrument uses a Lithium-Ion (Li-Ion) battery pack. To prevent an explosion or fire, do not short circuit and do not disassemble. Keep the battery safe from damage. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 5...
CAT I equipment cannot be directly CAT I connected to the mains power. For example, a process loop powered device. This is for single phase electrical installation. CAT II For example, appliances and portable tools. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 6...
Internal components, such as the Lithium battery pack, can be under pressure or cause other dangers if used incorrectly. For more details, please see www.bakerhughesds.com/druck/global-service-support Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 7...
Push the circular button on the right of the display to temporarily show the charge: the display will automatically stop after a few seconds. Each LED represents approximately 25% battery capacity. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 9...
The instrument has an Auto Power Down function that can be selected or canceled when wanted. See General Settings Section 4 on page 36: (on the instrument the function is in the General Settings screen on the Dashboard). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 10...

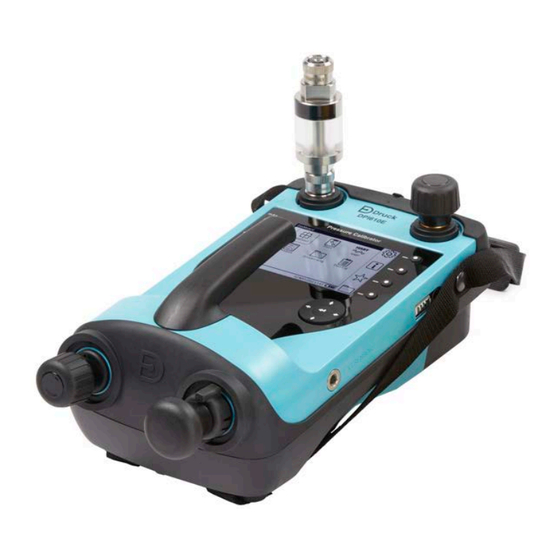

Screen Selection softkeys Clip Fastener for Carrying Strap Power ON/OFF button Barometer Port Help Button Battery Level Indicator (One bar equals 25% charge) Home Button External Sensor Port Navigation Pad Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 11...
Page 25
Electrical 4mm Sockets Clip Fastener for Carrying Strap Screen Selection softkeys Pressure Release Valve Power ON/OFF button Battery Level Indicator (One bar equals 25% charge) Help button External Sensor Port Home button Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 12...
1.14.12 External Sensor Port On the right side of the instrument is the RS485 communications port for the connection of external remote sensors, such as the PM700E pressure sensor and the RTD-Interface. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 13...
USB port Rating Information Name and address of Instrument PESO Hazardous Area Approval symbol Manufacturer (India) UKCA symbol (Device agrees with UK South Africa Hazardous Area Approval safety standard) symbol Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 14...
Navigation Pad. 1.16.1.5 Navigation Pad The Navigation Pad has Up, Down, Left, Right and Enter buttons that let quick and easy movement through the user interface. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 15...
The dashboard softkey icons are on the right of the dashboard screen. The icons are General Settings, Status, Favorites and File System. To operate an icon, tap the screen where the icon is or push the softkey on the right of the icon. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 16...
When all parameters are selected push the Tick softkey to accept the Date/Time changes. If changes are not to be saved and to go back to the previous screen, tap the Back button. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 17...
Page 31
Push the Tick softkey to accept the changes. If changes are not to be saved and to go back to the previous screen, tap the Back button. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 18...
To vent the system to atmospheric pressure, slowly turn the pressure release valve fully counter-clockwise until the sensor reading goes to zero (gauge sensor) or 1 bar (absolute sensor). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 19...
Make sure that the device under test has a male G ⅜ Quickfit adapter thread or use a suitable adapter rated to 35 bar. If in doubt, please contact www.bakerhughesds.com/druck/global-service- support Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 20...
Page 34
Attach the Blanking Plug, to seal and protect the socket if the instrument will not be immediately in use, see “Use of Blanking Plug” on page 19. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 21...
Note: Make sure that the device under test has a male G ⅜ Quickfit adapter thread or use a suitable adapter rated to Step 4 35 bar. If in doubt, please contact www.bakerhughesds.com/druck/global-service-support Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 22...
Use the pump to make the wanted pressure/vacuum. Step 3 Turn the volume adjuster to make fine adjustments to the pressure/vacuum. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 23...
Page 37
If the pressure is too high or if the display shows >>>>>>> (the pressure is above the internal sensor full-scale limit), slowly turn the fine adjustment knob counter-clockwise to decrease the pressure to the necessary value. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 24...
Page 38
If -950 mbar is supplied but then the vacuum starts to decrease, this is because there is a leak in the system. Make sure that the release valve is tightly shut and that the IDT (Instrument Dirt Trap) top/bottom seals do not leak. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 25...
The reservoir can be unscrewed from the instrument and filled. To avoid contamination, use only one type of pressure media in the instrument. If you wish to change the pressure medium after first use, please contact the Service Department. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 26...
Go to step 16 for more information. Step 2 Turn the volume adjuster wheel clockwise until it stops: this can be up to 30 turns. Note: This is the zero point. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 27...
Page 41
Push the Tick softkey and push the Back button to show the previous screen. Step 8 Slowly operate the priming pump until the pressure reading is 5 - 10 bar. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 28...
Page 42
If the screen shows a pressure value, turn the pressure release knob fully counter-clockwise. Do this until the pressure shown is zero (gauge sensor) or atmospheric pressure (absolute sensor). Step 13 Remove the blanking plug from the test port. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 29...
Page 43
Note: When necessary, use adapters supplied with the instrument or an AMC adapter(s) and the related seal(s). Step 17 Use the priming pump to prime the system to a maximum of 10-20 bar. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 30...
Remove the DUT or (blanking plug if attached) and then attach the supplied hose (or compatible hose) to the test port with the open end of the hose in an empty container. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 31...
Page 45
16. Remove the reservoir and empty the hydraulic fluid (if necessary clean the reservoir again) and then fill the Reservoir with fresh fluid to the recommended level (75% full). 17. Attach the Reservoir filled with new fluid to the DPI610E Reservoir port. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 32...
This task is typically for the calibration of Current Output Pressure transmitters. 3.1.2 P-P (Pressure to Pressure) This sets CH1 to internal (INT) pressure measurement and CH2 to external (EXT) pressure measurement. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 33...
The CH2 measurement function does not change. For more details on the Relief Valve Test, refer to Section 7.4 on page 130. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 34...
To use the navigation buttons, use the UP/DOWN/LEFT/RIGHT buttons to select the wanted task. Then push the (HOMEx) softkey to remove the selected option and its related small HOME icon. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 35...
Push the softkey related to the General Settings icon. Option 2 4.1 DATE, TIME and LANGUAGE To change the Date, Time and Language settings, see “Set Date, Time and Language” on page 17 and page 18. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 36...
If ALWAYS OFF is selected, the backlight will stay off at all times when the instrument is energized. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 37...
Bluetooth connection. A device with a Bluetooth capability can receive data at a distance of up to 5m from the DPI610E. Bluetooth devices can read the DPI610E channel configuration and its measurements. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 38...
If 30 Minutes Inactivity is selected, the instrument will automatically de-energize (switch off) after 30 minutes of no use. Note: Auto Power Down will not operate until all tests are done. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 39...
Step 2 The TOUCHSCREEN LOCK checkbox must have a tick mark. Note: To switch off the TOUCHSCREEN LOCK, tap on the touch-screen 3 times in a period of 5 seconds. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 40...
Tap on the ENABLE HOLD checkbox to remove the tick mark. Step 1 Select OK. Step 2 Look at the ENABLE HOLD checkbox: it must not have a Tick mark. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 41...
The necessary PIN is 4321. This default number can be changed by the user at all times. See Section 5.2 on page 46 for more information. Step 1 Select to continue. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 42...
Page 56
ADVANCED The Advanced Menu screen is now unlocked and its options available (see Chapter 5, “Advanced Menu,” on page 44). Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual 43...
SERVICE / ENGINEERING Reserved for internal use * A separate chapter describes the Instrument Calibration options that become available when CALIBRATION is selected. (See Chapter 14, “Instrument Calibration,” on page 280). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 44...
Select CALIBRATION from the Advanced Menu. Step 1 Refer to Chapter 14, “Instrument Calibration,” on page 280 that describes the options available when this CALIBRATION menu becomes available for use. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 45...
To change the PIN to a new number, use the on-screen keypad to enter the new number. Select on the screen and enter the new PIN. Select again to make the selection. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 46...
To select, tap on the icon or push the softkey to the right of the icon. Step 2 The General Settings screen appears. Select the COMMUNICATIONS option. Step 3 PORT Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 47...
Page 61
Move a copy of the DK0492.raw file from the PC file system location into the root directory of the DPI610E mass storage drive. Step 6 If an old DK0492.raw file is in the folder, a popup window will show this fact. Select Overwrite to replace the old file. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 48...
Section 5.3.1 on page 47 for how to show this screen. Step 1 Tap the OK button to start the change procedure: this will do a reboot of the DPI610E. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 49...
Page 63
If you cannot change the software to a new version, contact the Technical Support Dept for instructions. Use the links in Chapter 1 of this manual to do this. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 50...
Tap the Cancel button if the operation is not to continue. Select the OK button to make the Factory Reset operation occur. Step 2 Select the OK button to erase all user files. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 51...
Page 65
Step 4 If Cancel is selected in Step 4, the change will be completed on the next start of the system. Select the OK button to make the selection. Option Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 52...
“Formatting will be completed on next reboot”. Tap OK to close this message window. Step 3 After the instrument is started, move all backup files back into their related folders. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 53...
SERVICE / ENGINEERING 5.6 SERVICE / ENGINEERING This Advanced SERVICE/ENGINEERING function is not for operator use. A special PIN is necessary for use only by specialist users. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 54...
Softkey – up to four softkeys are available for the menu screens. These softkeys give touchscreen and button options for the use of different parts of the user interface. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 55...
Step 1 INFORMATION When in maximized/minimized layout, tap on the channel window area (with the exception of the Units area) to show the 50:50 layout again. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 56...
Page 70
Push the DOWN button to select the Channel 2 (CH2) window area. Push the Enter button to maximize the Channel window. Step 2 INFORMATION When in a maximized/minimized layout, push the ENTER button to show the 50:50 layout again. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 57...
Page 71
The selected channel window shows the wanted measurement unit. Step 3 Note: An alternative method to select units of measurement is given in Step 3 of Section 2.1.6 on page 22. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 58...
Page 72
The type of Loop Power is use (10V or 24V) is shown at the top of the CH2 channel window (see Figure 6-2). Figure 6-2: 24 V Loop Power Enabled Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 59...
In this example, 24V ON has been removed from the screen. Using Navigation Buttons Push the DOWN button to select the channel 2 window area. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 60...
Page 74
Push the Enter Key to cancel the 24V ON function. Step 3 Make sure that the 10V/24V function is not in the screen after the function has been canceled. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 61...
INFORMATION If the screen shows any of the above error indications: look at the sensor/measurement full scale pressure range (shown on screen) against the range of the system being measured. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 62...
Page 77
Difference Barometer Observed INFORMATION ‘Electrical’ includes Current, Voltage and Millivolt functions. Note: ‘o’ shows a supported combination of functions. Note: ‘x’ shows that a combination of functions is not supported. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 64...
1000 bar / 15000 psi / 100 MPa Table 6-3: Internal Pressure Sensor in DPI610E-A Range Pressure Pressure Range Code Pneumatic Hydraulic 2 bar / 30 psi / 200 kPa Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 65...
Page 79
Select FUNCTION in the Channel Setup screen. Step 2 Select Pressure in the Channel Function screen. Select INT (for Internal). Select Normal or Pseudo. Select to make the selections. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 66...
Page 80
It is not possible to use total vacuum for absolute sensors, because they are designed to measure atmospheric pressure. Note: It is recommended that all gauge sensors are zeroed at the start of each day before use. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 67...
Page 81
Unit area) to maximize the pressure channel area (See Chapter 6.1.1.1, “Maximize and Minimize Channel Window,” on page 56). Step 3 Select to set the pressure sensor to zero. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 68...
Page 83
Select to continue. Step 2 Make sure that Sealed Gauge is correctly set on the selected channel. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 70...
Page 84
Make sure that the pressure port is open to atmosphere. When the pressure reading is stable, select the icon. Step 2 Make sure that Sealed Gauge is correctly set on the selected channel. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 71...
How to use the Sum function to set a pressure measurement reading: Tap the icon to select Channel 1 or push the related softkey. Step 1 Select FUNCTION from the Channel Setup menu. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 72...
Page 86
CH Setup screen again. Step 3 Make sure that the screen shows the wanted setup in the CH Setup menu. to go back to the Calibrator Select Main screen. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 73...
Step 1 Select FUNCTION from the Channel Setup menu. Step 2 Select Difference from the FUNCTION menu. Select INT-EXT or EXT- INT as wanted. Select to make the selection. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 74...
Page 88
(INT-EXT) or (EXT-INT). The screen will Step 5 also show the FS values of both the internal sensor and the external sensor. The sensor type field will also be updated where necessary. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 75...
Select FUNCTION from the Channel Setup menu to show the CHL Function screen. Step 2 Select Barometer in the channel FUNCTION menu. Select the Tick button to make the selection. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 76...
Page 90
CH Setup menu. Select the Back icon to go to the Calibrator Main Screen. Step 4 Make sure that the Barometer function is correctly set in the wanted channel window. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 77...
Step 1 Select FUNCTION from the Channel Setup menu. Step 2 Select Observed from the channel FUNCTION menu. Select the Tick button to make the selection. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 78...
“Connected” text briefly appears. This shows that there is a successful connection. When the cable is disconnected, the screen will remove the sensor icon and show a “Disconnected” text briefly: this shows that the connection is broken. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 79...
(the Off option is selected in Step 4). Step 1 Use the diagram on the left to make the necessary connections for Current Measure, when the internal 24 V supply is used. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 80...
Page 94
Step 4 Select to make the selection. If Off is selected, the electrical connections will not be the same as for when 24V or 10V is selected (see Step 1). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 81...
Page 95
Calibrator Main Screen. Step 5 The Calibration screen will show “24V ON” in the CH2 screen area. If Off has been selected, only “Current” will be in the top of this area. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 82...
Use the diagram on the left to make the necessary connections to the internal 10V or 24V supply. This is the source of Current Supply. Select the channel. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 83...
Page 97
When 24V is selected, the screen will show “Current (24V)”. When 10V is selected, the screen will show “Current (10V)”. Select the Back icon to go to the Calibrator Main screen Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 84...
Page 98
INFORMATION When a target current source value is set, the shown value will start to flash on the main screen. When the setpoint is reached, the source value becomes stable. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 85...
Page 99
Navigation keypad: push the DOWN button to select CH2, then tap the OK Step 1 button to maximize the channel window. Select the Setup options icon to show the Source Automation screen. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 86...
Page 100
Automation screen: the usual option is NUDGE. Step 3 If necessary, select the Edit softkey and then set the parameters for the selected automation. Note: Different automation options will have different parameters. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 87...
Page 101
UP/DOWN buttons. If necessary, tap the UP or Down screen buttons to increase or decrease the Current value. Tap the Setup icon to show the Source Automation menu. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 88...
Page 102
Select the Tick icon/softkey to save the new values or the Back icon to not save the new values. Select the Proceed softkey to use the automation option and its automation settings. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 89...
Page 103
Span Check cycle is automatically repeated. This occurs when the automation Play softkey is used, until manually stopped. To stop the automation immediately, tap the Cancel softkey. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 90...
Page 104
Back icon to not save the new values. Select the Proceed softkey to use the selected automation option and its automation settings. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 91...
Page 105
If the Auto-repeat function is selected icon will be next to the Percent Step automation icon. The automation cycle is automatically repeated until manually stopped. To stop the automation immediately, tap the Cancel softkey. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 92...
Page 106
Back icon to not save the new values. Select the Proceed softkey to use the selected automation option and its automation settings. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 93...
Page 107
The TRAVEL time can be set to define the time for the value to go from START to END or from END to START. On the Source Automation screen tap the RAMP radio button. Select the Edit softkey to show the Ramp Automation menu screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 94...
Page 108
Step 3 option. Push the Play softkey to select automation. The automation cycle continuously repeats until manually stopped. To stop the automation immediately, push the Cancel softkey. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 95...
From the Calibrator screen, select the channel 2 Setup screen (either tap the screen icon or push the softkey.) Step 1 Select FUNCTION from the CH2 Setup screen. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 96...
Page 110
Make sure that the Voltage mode is active. Select the Back icon to show the Calibration screen. Step 3 Make sure that “Voltage” is shown in the screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 97...
From the Calibrator screen, select the Channel 2 Setup (either tap the screen icon or push the softkey.) Step 1 Select FUNCTION from the CH2 setup screen. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 98...
Page 112
Make sure that the Voltage mode is selected. Select the Back icon to show the Calibrator screen. Step 3 Make sure that screen shows Millivolts. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 99...
From the Calibrator screen, select the channel 2 Setup icon (either tap the screen icon or push the softkey.) Step 1 Select FUNCTION from the CH2 Setup screen. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 100...
Page 114
Step 3 To cancel the HART function, to enable the selection of another function, use the procedure in Section 13.2 on page 262 to go back to the Configuration screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 101...
Note: Tare is only available for most Measure functions but not for Barometer and HART. To select the Tare function : Select the wanted channel. Step 1 Select PROCESS. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 102...
Page 116
Step 5 INFORMATION When Tare is not in operation, the primary reading shows only the true measured value. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 103...
(refer to “Maximize and Minimize Channel Window” on page 56 for how to maximize the window). INFORMATION The Min/Max/Mean function relates to most Measure functions but not HART. To enable the Min/Max/Mean function: Select the wanted channel. Step 1 Select PROCESS. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 104...
Page 118
Min/Max/Mean icon in the related channel window. INFORMATION To see Min/Max/Mean information, Step 5 maximize the related channel window. See “Maximize and Minimize Channel Window” on page 56 for details. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 105...
Page 119
Process Options The display shows Min/Max/Mean information in the maximized channel window. Step 6 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 106...
When the Filter process option is on, the screen shows the Filter status icon in the related channel. To make available the Filter function: Select the wanted channel. Step 1 Select PROCESS. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 107...
Page 121
Calibration Main screen. Step 4 Make sure that the screen shows the FILTER icon in the related channel window. (The FILTER icon will show the PROCESS option). Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 108...
(Internal Pressure, External Pressure, Sum and Difference). The screen shows the Flow status icon when this process option is in operation. To use the Flow function: Select the wanted channel. Step 1 Select PROCESS. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 109...
Page 123
Select the Back icon to go back to the Step 4 Calibration Main screen. Make sure that the screen shows the FLOW icon in the related channel window. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 110...
Barometer and HART. To select and do the setup of the user Alarm option: Select the icon as the wanted channel. Step 1 Select PROCESS. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 111...
Page 125
Push the Tick softkey to set the alarm settings and go back to the PROCESS options screen. Note: To cancel the Alarm, select the ALARM checkbox to remove the Tick mark. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 112...
Page 126
When the measured value is in the normal specified range condition, the icon and measured value will both stop flashing. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 113...
There are two methods to select and do the setup of the Scaling option. 6.3.6.1 First Scaling Method Select the icon for the wanted channel. Step 1 Select PROCESS. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 114...
Page 128
Process Options Tap the SCALING area or use the Navigation pad buttons to select the area. The screen shows the Scaling screen for the selected channel. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 115...
Page 129
PROCESS screen. The changed Channel Scaling parameters are shown in the Scaling fields. Step 5 Tap the Back button in the Channel Process screen to show the Channel Setup screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 116...
Page 130
The screen shows the Scaling icon in the PROCESS field. The special unit label is in the UNITS field. Select the Back softkey to go back to the Calibrator screen. Step 7 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 117...
Page 131
In addition, the full-scale value will be shown as its equivalent in the special unit. Examine the minimum and maximum Step 8 shown values that relate to the minimum and maximum measured values. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 118...
Page 132
Select the Setup softkey to see or change the Scaling parameters which set the special unit. For information for how to set the parameters, see Section 6.3.6.1 for Method 1. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 119...
To set and do a Leak Test: Tap on the Tasks icon on the Dashboard to select the menu. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 120...
Page 134
Navigation pad OK button to start the Leak Test utility. Note: If no compatible function is set on Step 2 CH1, the Internal Pressure function will automatically do the Leak Test. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 121...
Page 135
After the Leak Test times are set, use the DPI610E pump to pressurize the system to the Step 4 necessary pressure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 122...
Page 136
When the TEST TIME period comes to an end, the End pressure value is recorded and the Leak Rate per minute is calculated. The screen then shows the Leak Rate test result. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 123...
Page 137
318.) Only the list of test result files can be looked at on the device. Data about the files can only be seen when the files are opened on a PC. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 124...
Tap on the Tasks icon on the Dashboard to select the menu. Step 1 Tap the Switch Test two times on the touchscreen or tap the OK button to start the utility. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 125...
Page 139
The normal state is sensed: If open, it is sensed as Normally open (NO) in the test Step 6 window. If a closed circuit is sensed, the switch will be identified as Normally closed (NC) when the test occurs. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 126...
Page 140
Only the list of test result files can be looked at on the device. Data about the files can only be seen when the files are opened on a PC (See Section 10.6.2, “How to use a PC to view Data Log files in the DPI610E,” on page 197). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 127...
From the Tasks menu, select Tx Sim from the Task list. Tap the Tx Sim option again on the touchscreen or push the Navigation pad OK button to start the utility. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 128...
Page 142
0 and 24mA. There is also the option for the DPI610E to supply power (10V or 24V). The usual setting is Off (no power supplied by the DPI610E). Push the Back softkey. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 129...
Relief Valve from the Task list. Tap the Relief Valve option again if the touchscreen is used or push the Navigation pad OK button to start the utility. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 130...
Page 144
When the pressure becomes stable below the setpoint level, the valve will close, and the pressure reading will become stable at a minimum value: this is recorded as the final closing pressure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 131...
Page 145
If the results are not saved, a new test cycle can be set up ready to be used. To do this, carefully vent the system (open the pressure release knob) and then select the Restart softkey. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 132...
When connected to a total volume of 1 litre (equivalent to a typical mechanical Rate of Climb meter) the rate of climb will be limited to +/- 6000 ft/min. to protect the meter. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 133...
Stored pressure can be dangerous to personnel and equipment. Turn the knobs of the Pressure Release valve and the let-down valve counter-clockwise to open the valves and vent the system. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 134...
Note: If the instrument has been used in the past, the contents of this screen can be different from this example screen. Step 6 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 135...
Page 149
The screen will show the Leak Test icon below the Function name field. The POTD value will use the real-time value from the instrument (it is not a Step 9 stored value from previous use). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 136...
Page 150
Manual is a set value given by the user. Select POTD UNITS to change the measurement unit for the POTD value. When all the option values have been selected, tap the Back icon Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 137...
Page 151
Step 15 pump when the wanted vacuum is shown on the display screen. To stop the instrument from sliding, make sure that the instrument is set against a flat surface. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 138...
Page 152
Result files are saved in the internal memory of the DPI610E. (See Chapter 15, “Files System,” on page 318.) Only the list of test result files can be seen on the device. Files must be opened on a PC to get access to their data. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 139...
Altitude mode for the test: this sets the measurement reading to zero. Make sure the switch contacts on devices under test are voltage free. Figure 8-2: Altitude Switch Test Connections Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 140...
Manual (NC) - Select this option to test a Normally Closed switch. Manual (NO) - Select this option to test a Normally Open switch. Tap the Tick icon to show the next screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 141...
Page 155
Carefully open the Release valve and let the altitude pressure decrease until the switch operates again. Step 8 For an Auto mode test the pressure value will be sensed and altitude pressure values shown. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 142...
Page 156
System). Only the list of test result files can be seen on the device. Data of the files can only be found when the files are opened on a PC (See Section 10.6.2, “How to use a PC to view Data Log files in the DPI610E,” on page 197). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 143...
Manual (NC) - Select this option to test a Normally Closed switch. Manual (NO) - Select this option to test a Normally Open switch. The screen will have a different icon for each type of switch. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 144...
Page 158
(Actuation) for an Manual (NC) valve test. When a Manual (NO) valve test is selected, tap the Valve Open icon (Actuation) switch icon to make a record of the pressure at which the switch operates. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 145...
Page 159
Step 7 Let the shown altitude decrease until it is under 1500 ft. Slowly turn the let-down valve knob fully counter-clockwise to open the valve. The system goes to ground level Step 8 pressure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 146...
Stored pressure can be dangerous to personnel and equipment. Turn the knobs of the Pressure Release valve and the let-down valve counter-clockwise to open the valves and vent the system. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 147...
This shows the CH1 Setup screen*. Step 5 *The screen can be different from that shown, if the instrument has been used. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 148...
Page 162
RESOLUTION row. Select the wanted number of digits (4 to 7 digits) in the shown selection screen. Tap the Back icon to continue. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 149...
Page 163
Stop the use of the pump when the screen shows the Step 11 wanted airspeed. To stop the instrument from sliding, make sure that the instrument is set against a flat surface. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 150...
Page 164
On completion of the test, let the airspeed decrease until it is below 80 knots. Step 12 Slowly turn the knob on the let-down valve, counter-clockwise, to put the system back to zero (ground level). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 151...
The screen will show a message that the pressure port must be open to atmosphere. Continue with the procedure when the pressure reading is stable. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 152...
Page 166
To stop the test completely, tap the Stop icon. Carefully open the Release valve and let the airspeed pressure decrease until the switch operates again. Step 8 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 153...
Page 167
Slowly turn the knob of the let-down valve counter-clockwise, to make the system pressure go to ground level. Step 12 Turn the let-down valve knob fully counter-clockwise to open the valve. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 154...
Manual (NO) - Select this option to test a Normally Open switch. The screen will have a different icon for each type of switch. Tap the Tick icon to show the next screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 155...
Page 169
(Actuation) for an Manual (NC) valve test. When a Manual (NO) valve test is selected, tap the Valve Open icon (Actuation) switch icon to make a record of the airspeed at which the switch operates. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 156...
Page 170
Slowly turn the knob of the let-down valve counter-clockwise, to make the system pressure go to ground level. Step 11 Turn the let-down valve knob fully counter-clockwise to open the valve. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 157...
Differential sensor reference port Silicon, Glass, Silicon Dioxide and RTV Adhesive 7 to 200 bar 316L Stainless Steel and Hastelloy C276 350 to 1400 bar Inconel 625 and 17-4PH Stainless Steel Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 158...
(see bottom left of screen image below). When the sensor is disconnected, the screen shows a “Disconnected” message for a short time in the status bar and then the external sensor icon is removed Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 159...
The EXTernal pressure function is equivalent to that of the INTernal pressure function. This is because the function supports all the Calibrator task functions that relate to internal pressure. For example: sensor zero, pseudo-range, leak test, switch test, relief valve. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 161...
Page 175
If a channel is set for External Pressure and a not-compatible sensor is sensed, the screen will show a warning message, that the connected sensor is not compatible. The screen will also show the sensor icon in the status bar. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 162...
Page 176
DPI610E is already in operation. Also, a message text “CAL DUE” will permanently be in the status bar until the sensor is disconnected or the sensor has been calibrated. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 163...
(resistance range) with a suitable extension SPECIALIST RTD PROBE cable and suitable probe, is 0 to 400Ω (this is (Not supplied by Druck) equivalent to -250ºC to +650ºC for a PT100 probe). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 164...
When the sensor is disconnected, the screen shows a “Disconnected” text message for a short time in the status bar. The external sensor icon will also be removed. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 165...
Page 179
“- - - - -“. If the external sensor is disconnected while the function is in use, the screen can show an error message. The full-scale value of the RTD probe is shown and the RTD probe type. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 166...
Step 1 Select FUNCTION from the Channel Setup screen. Step 2 Select RTD and select the Tick icon to make the selections and show the Channel Setup screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 167...
Page 181
Select the Tick icon to set the selected RTD MODE and to go back to the channel Setup screen. The RTD Profile can now be selected if necessary. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 168...
PT100-PD-385, that uses the American standard. The Default EU and Default US profile options are pre-defined and cannot be changed or erased. Eight Custom profiles can be made. Enter into the available user Profile files, the necessary coefficients, temperature range and label. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 169...
Page 183
Coefficient 3 (c, C, Delta) Third coefficient value Min. Temperature Minimum temperature Max. Temperature Maximum temperature When all parameter fields are filled, use the Back softkey to go back to the RTD Profile screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 170...
Page 184
When in Resistance mode, the only measurement units available to select are: Ohms (Ω) and Custom units. In Temperature mode, select from °C, °F or Custom units. Refer to Section 6.3.6 on page 114 for information about Custom units. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 171...
It is necessary to have the following information, which a label on the sensor must supply: Sensor pressure range. For example: 0 to 10 bar g. Electrical Output option. For example: 0 to 10 V. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 172...
Page 186
CH2 Sensor Configuration screen: the automatic selection Configuration option is Standard. The screen will show the Configuration setup softkey after you select the ADROIT configuration option. Select this softkey to look at or change the setup parameters. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 173...
Page 187
- the series resistance of the wiring (cable) length between the ADROIT sensor and the series electrical ports where it stops. Default value is 0 ohm. - the voltage-drop through the resistor or resistance in the circuit. The default value is diode 0.5V. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 174...
Page 188
Push the plugs of the electrical leads from the ADROIT sensor into the correct electrical sockets on the DPI610E (See Current Measure with 24V page 80 or Voltage Measure with 24V electrical connection diagrams on page 96). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 175...
Page 189
Make sure that the electrical reading and data in the CH2 are correct: the measured value will be the minimum range value when the pressure is open to atmosphere. Make sure that the full-scale value agrees with the sensor data set in the ADROIT configuration menu. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 176...
174 for a description of the contents of this screen. Change the sensor data on the screen if necessary. Select the Tick icon to go to the next step of the calibration procedure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 178...
Page 192
Step 3 that has the instruction to vent the system to atmosphere. Open the pressure release valve slowly until the system is fully vented before the selection of the OK button Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 179...
Page 193
RESTART softkey lets the calibration procedure be started again if a repeat calibration is necessary. BACK softkey stops the calibration procedure and takes the user to the Perform Calibration menu screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 180...
Use the DPI610E pump and/or volume adjuster to do this. When the pressure value is stable, push the Next softkey to continue. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 181...
Page 195
RESTART softkey lets the calibration procedure be started again if a repeat calibration is necessary. BACK softkey stops the calibration procedure and takes the user to the Perform Calibration menu screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 182...
Select RESTORE FACTORY CALIBRATION from the Adroit Calibration screen. Select OK on the popup window to use the restore operation: this operation may take several seconds before it shows the screen below. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 183...
TIME INTERVAL, LOG DURATION and DATA POINTS are only listed in the Data Log Setup menu when TRIGGER is set to PERIODIC (See Section 10.2 on page 187). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 184...
Data Log Setup screen when TRIGGER is set to periodic. Step 2 Select the Eraser icon to erase the default data log file name. Note: The default data log file name format is: [YYYY-MMM-DD_HH-MM-SS]. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 185...
Page 199
Make sure that the new file name is in the Data Log Setup screen. Note: TIME INTERVAL, LOG DURATION and DATA POINTS are only given on the Data Log Setup screen when TRIGGER is set to Periodic. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 186...
Section 10.4 on page 193, to continue the instructions for KEY PRESS data logging. When the PERIODIC trigger mode is selected, more recording options become available that can be set. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 187...
Current / Voltage / Millivolt Measure 00:00:00.5 Current Source 00:00:01.0 HART 00:00:00.5 10.3.1.1 How to set the TIME INTERVAL Select TIME INTERVAL from the Data Log Setup screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 188...
Page 202
[HH:MM:SS.S] format in the range [00:00:01] to [23.59.9]. Step 2 Make sure that the screen shows the wanted interval in the TIME INTERVAL row of the Data Log Setup screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 189...
Use the on-screen keypad to set the LOG DURATION value. Select to make the selection. Note: The time interval must be entered in the [HHH:MM:SS] format in the range Step 2 [000:00:01] to [999.59.59]. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 190...
10 seconds and the new number of required data points.. 10.3.3.1 How to set the DATA POINTS Select DATA POINTS from the Data Log Setup screen Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 191...
Page 205
Select to confirm. Step 2 Make sure that the screen shows the wanted number of data points in the DATA POINTS field of the Data Log Setup screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 192...
Tap the Start Logging Data icon to log data when wanted. To temporarily stop the testing tap the Hold Step 3 icon. To start again the testing, tap the Hold icon. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 193...
Page 207
If the user selects the Dashboard while data logging, some applications that can interfere with the logging, will not be available for use. This type of application will have a slash across its icon on the Dashboard. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 194...
If the user selects the Dashboard while data logging, some applications that can interfere with the logging, will not be available for use. These applications will have a slash across the icon on the Dashboard. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 195...
Step 1 Tap on (or use the Navigation Pad) to select the wanted Data Log file. Step 2 Select the Clipboard icon on the Data Log File Summary. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 196...
DPI610E device to the PC. (See Section 10.7 on page 201). On the PC, the Windows File Explorer shows the DPI610E memory as a mass storage device or drive. Double-tap on the DPI610E drive and select the DataLog folder from the root directory. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 197...
10.6.3.1 To erase a single Data Log file Select FILES from the Data Log screen. Step 1 Tap on (or use the Navigation Pad) to select the required Data Log file. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 198...
Page 212
Viewing & Deleting Data Log files Select the ‘single’ trash icon on the Data Log File screen. Step 3 Select OK to erase the file. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 199...
Page 213
Select FILES from the Data Log screen. Step 1 Select the ‘double’ trash icon on the Data Log summary screen. Step 2 Select OK to erase all the files. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 200...
If a copy of the Data Log file is to be put into the memory of an external PC, connect a micro-USB data cable to the USB port. Step 2 PORT Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 201...
Page 215
DPI610E, which will be shown as a Mass Storage drive (default name is DPI610E). Step 5 Note: USB access must be available for the PC to use this function. When the copy operation is complete, remove the cable from the DPI610E. Step 6 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 202...
Also, the tolerance test result can be shown as a Pass or Fail. 11.2 Analysis Application Select the Analysis icon on the Dashboard to start the Analysis application. Figure 11-1: Instrument Dashboard Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 203...
- when the transfer characteristic is a directly proportional relationship. Square Root - when the transfer characteristic has a square-root relationship. This is commonly found in flow sensors. The Linearity option is automatically selected. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 204...
- the real-time measured output value is not in the specified tolerance limits. The screen is in two areas. Each area shows information for a channel and is either the Input or Output channel. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 205...
When the test is complete, tap the Back icon to go from the Datalog and Analysis application. Use the Data Log application to get access to Datalog files (Refer to “Data Log” on page 184). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 206...
A calibration certificate template wizard is supplied by Druck. This puts the data into an applicable form for use in printing or filing. The related Excel Macro file is available on: Druck.com/DPI610E as “Druck DPI610E Calibration Template”. 12.1.1 How to start the Documenting application Select the Documenting softkey from the Dashboard.
Create Procedure screen. Select the type of calibration wanted. Proportional is the default option. Push the Next softkey to continue or the Previous softkey to go back one step. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 208...
Page 222
Input and Output functions: to use the original Input function as the Output function and the original Output function as the Input function. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 209...
Page 223
0 POINTS DOWN. This means there will be two test points - the first test point will be the Input Start value and the second will be the Input End value. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 210...
Page 224
In the Test Point screen, it is possible to manually adjust each test point if necessary. Select the related test point box and change its value. As shown in the screen below. Step 4 Cont’d Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 211...
Page 225
It is specified as a percentage of the Input range. The default test point tolerance value is 5% and can be changed if necessary. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 212...
Page 226
Internal Procedures TOLERANCE: This relates to the deviation on the output signal or result, as a result of each applied input signal setpoint. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 213...
Page 227
%FS (Percent of Full-scale) • %Span (Percent of Span) • %Percent of reading) • %Fixed (Measurement units). See Section 11.3.3 on page 205 for more details. The default is % Full-scale (%FS). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 214...
Page 228
Internal Procedures When the details of the test are completed, push the Save softkey to save the procedure. The test procedure after being saved, becomes immediately available for use. Step 6 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 215...
Note: When a Test Procedure is erased, any asset data saved as part of the procedure file will also be erased. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 216...
DUT. Maximum number of characters: 50. When the necessary fields have data in them select the Next screen icon to go to the next step. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 217...
Page 231
18 psi or 23 to 36 in. Hg). AMBIENT HUMIDITY – Enter the ambient humidity value where the test is done. The default value is 70%. Values entered must be between 0 and 100%bar. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 218...
Page 232
Select the OK button to remove the message. This gives a checkpoint where the user may go back and check all the data of the test procedure are correct. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 219...
Page 233
Another example is if the DUT connected has an incompatible pressure range to that which is specified for the test. The next section gives information about the parts of the Documenting Main screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 220...
Note: If the marker is not shown, look at the error value, as it is likely that the error is too large to be shown by the error and tolerance value. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 221...
Page 235
The Documenting Main Screen Select the Add Test Point softkey to record the data point. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 222...
To use PSEUDO RANGE, select the related pseudo-range option from the settings screen. The tick-box has the tick mark when in operation and has no tick mark when not in operation. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 223...
Page 237
The tick-box has the tick mark when in operation and has no tick mark when not in operation. Note: These options are only available when electrical functions are used in the test procedure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 224...
Step 2 Go to the next step setpoint as shown in the title bar and do the step again. Do this until all steps have been completed and recorded. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 225...
Page 239
Select the Save softkey to save the CALIBRATION REMARKS and continue. The next screen is the procedure result Summary screen. This screen gives data about the completed test procedure. Step 6 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 226...
(DUT) data. If you wish to stop, use the Back Step 2 softkey to go back to the Internal Files Procedure menu. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 227...
Procedure Summary screen. The test procedure can now be done again after adjustment. Select the Play softkey or icon to do this. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 228...
To do the test procedure again on the selected asset or Device Under Test (DUT). Step 3 Select the Play softkey from this menu screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 229...
(As-Found or As-Left) from the procedure SUMMARY screen. Another method to look at the results, is to select the related Test Procedure file and wanted asset file. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 230...
Page 244
Results can also be looked at when, the test procedure is selected, the device under test is selected and then the related test result (As-Found or As-Left). Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 231...
Make a copy of the certificate template and move it into memory by the use of the given URL or QR code. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 232...
Page 246
PDF file. Use the Export button on the template CSV to do this and select a destination file path for it to be saved. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 233...
To download test procedures from 4Sight2 on to the DPI610E, use the supplied USB data cable to connect the instrument to the PC. Note that this function is not available for use with the DPI510E-A. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 234...
Step 3 The 4Sight2 software and the Druck CommServer must install correctly for the DPI610E to successfully connect to the 4Sight2 software. Start the 4Sight2 application on your system. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 235...
Page 249
Select the wanted procedure to continue. Make sure the Port is set to USB. If the Test Equipment drop-down box is empty, select Get Connected Test Equipment. This will start the connection to the DPI610E. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 236...
Page 250
Make the Test Equipment profile: enter data into the data fields in the popup screen and tap the Create button to complete the procedure. Select the Continue button to continue. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 237...
Page 251
Note: Copies of tests that have special or Asian characters in the file name cannot be sent to the DPI610E. Accented letters or characters in the file name must be replaced by alternative characters without the accent symbols. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 238...
Tap on the row to open the procedure (or use the Enter button in the Navigation pad). There are two types of remote test procedures available on the DPI610E: Linear or Proportional Test Procedure. Switch Test Procedure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 239...
Section 12.2.2, “How to make an Internal Procedure,” on page 208. Step 2 Examine and change, if necessary, the environment data and user ID. Push the Next softkey to go to the next step. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 240...
Page 254
The available selection is either to go back to the test information by the use of the Back softkey, or if the test data are satisfactory, select the Proceed softkey to show the test screen. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 241...
Page 255
This information is read-only and set with 4Sight2. Select the Next softkey to show the Step 8 CALIBRATION REMARKS screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 242...
Page 256
The procedure will use the initial test data and device under test (DUT) data. To stop the use of the screen, use the Back softkey to go back to the Remote Procedure menu. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 243...
INITIAL STATE - the initial mode of the pressure switch (its condition before a change in pressure makes it operate). This is either Normally Open or Normally Closed. Step 2 procedure continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 244...
Page 258
“How to make an Internal Procedure,” on page 208. Examine and change, if necessary, the environment data and USER ID. Push the Next softkey to go to the next step. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 245...
Page 259
Test data are correct and to remove this popup message. Use the Back softkey to go back to the test information or use the Proceed softkey to show the test screen. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 246...
Page 260
Add Test Point softkey. The title bar will show Procedure complete with the overall test result status. Select the Tick Step 7 softkey to fully complete the calibration procedure. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 247...
Page 261
This step is optional: the CALIBRATION REMARKS field can be left empty. Maximum number of characters: 50. Select the Save softkey to save the Step 9 CALIBRATION REMARKS and continue. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 248...
Page 262
The procedure will use the initial test data and device under test (DUT) data. To stop the use of the screen, use the Back softkey to go back to the Remote Procedure menu. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 249...
Procedure Summary screen. The test procedure can now be done again after adjustment. Select the Play softkey or icon to do this. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 250...
For example, if the end result of the test procedure is a Fail. It is possible to do an adjustment and examine its effect, by the use of the Analysis softkey. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 251...
Page 265
Error type • Test point # • Expected (Specified) input for each test point • Actual (Recorded) input for each test point. • Calculated error or deviation • Pass/Fail/Adjust result. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 252...
Page 266
Use the Page Down softkey and Back softkey to move between screen pages. Step 5 Step 5 continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 253...
Page 267
How to View Test Results Step 5 Cont’d Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 254...
From the list of procedure files, tap on the wanted file to erase and select the Single Delete softkey to erase this file. To erase all files present, select the Delete All softkey. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 255...
Test Equipment. The success of the copy operation will be shown by the “Success...” text in the Operation Status area. To see the results, tap on the toggle icon in the left-hand section of the screen to change from Send/Receive to Review mode. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 256...
Page 270
Select the calibration file to show data of the test and its results. For more information on how to analyse or use test data in 4Sight2, please refer to the 4Sight2 User Manual 123M3138. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 257...
Setup (either tap the screen channel 2 icon or push the softkey.) Note: The HART function is only available on CH2. Step 1 Select FUNCTION from the CH2 Setup screen. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 258...
Page 272
250-ohm resistor connected in series with the loop power supply and the HART device. Here the HART resistor should be unavailable in the setup (checkbox must be empty). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 259...
To set the HART function, use the procedure in Section 13.1.1 on page 258 from step 2 forwards. Step 2 Select the Configuration softkey to start data movement between the instrument and the HART device. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 260...
HART > DIRECTION > Measure > Off (see Step 4 page 259). HART when connected to an external current loop. This is when the menu selection is: HART > DIRECTION > Master (see Step 4 page 259). Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 261...
Note: If the HART application is in operation, maximize the CH2 window to get access to the CH2 Setup softkey. Step 2 Procedure continues with Step 3 on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 262...
Page 276
Back softkey to go back to the Device Poll screen. Note: An applicable Poll Address value must be between 0 and 63). Step 3 procedure continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 263...
Page 277
Note: An applicable Poll Address range must be between 0 and 63. When the wanted Poll method has been set, select the Search softkey to start. Step 3 procedure continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 264...
Page 278
Calibrator screen. An option is to use the CANCEL button to go back to the Device Poll setup screen. Step 4 continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 265...
Page 279
The HART device is connected, and the Primary reading shows the Primary Variable reading from the HART device. The device Poll Address is shown, together with its full-scale value. Step 4 Cont’d Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 266...
(either tap the screen icon or push the softkey.) Step 2 The display shows a screen of HART options. The use of these options is given in the next pages. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 267...
Figure 13-2: Device Information screen The HART: Device Information screen shows data about the device that can be changed. The information options available are shown in the Figure 13-2 above. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 268...
Page 282
To change the device data, select the option and enter the value or text. Select the Tick softkey to make this new change to the device. • TAG. • POLL ADDRESS • DESCRIPTION • MESSAGE. • DATE. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 269...
This screen shows the following variables (variables with a pen icon can be changed): • PV Units (Measurement units of the primary variable) • PV LRV (Primary variable Lower Range Value) • PV URV (Primary variable Upper Range Value) Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 270...
This screen shows the following variables: • Serial Number • Sensor Units • LRL (Lower Range Limit) • URL (Upper Range Limit) • Minimum Span. Note: This is a read-only screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 271...
DPI610E calibrator. To output a current: Select LOOP TEST from the HART: Service Methods screen. In the Loop Test screen, select the Edit softkey. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 272...
Page 286
Do the test again if necessary, with all the wanted current output values and make sure the measured current value is acceptable. To stop the loop test, select the Back softkey. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 273...
HART Step 3 device is shown by Make sure that the reading is stable. To do the trim operation, select the Trim softkey. Step 3 continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 274...
Page 288
This value can be edited if wanted by the selection of the Edit softkey (Step 6). Step 5 If no change is necessary, select the Next softkey to continue (Step 7). Procedure continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 275...
Page 289
D/A trim procedure. Step 8 The final step of the procedure is to make sure that the D/A trim adjustment is sufficient. Procedure continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 276...
Page 290
0 and 24 mA and examine the measured values at each point. Step 10 To close the Verification screen, use the Back softkey. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 277...
Cancel to go back to the previous step. Step 2 When the Zero Trim is complete, use the Back softkey to stop the procedure or do the Trim procedure again if necessary. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 278...
Reserved Error Payload too Long No Buffer Available No Alarm/Event Buffers Available Priority too low Command Not Implemented 65-72 Multiple Meanings Error 96-111 Reserved Warning Table 13-1: HART Error Codes Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 279...
Select ADVANCED at the bottom of the General Settings screen. Tap on ADVANCED or use the Navigation Pad to move to bottom row and push the Pad’s Enter key to select. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 280...
Page 294
44, for instructions for how to use the other Advanced Menu options. Step 4 Select INSTRUMENT in the Calibration screen to show the Instrument Calibration menu. Step 5 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 281...
Note: The information in this chapter is for the calibration of Internal and External sensors. To let the DPI610E recognise and use external sensors, refer to Chapter 8, “External Sensors” on page 158. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 282...
The procedure to change Current, Voltage and Millivolts options is almost the same for all options. Thus, on the next pages the procedure to change Current variables is the same as for Voltage and Millivolts. The Pressure and Barometer options use different procedures. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 283...
Page 297
Select PERFORM CALIBRATION from the Instrument Calibration menu. Step 1 Select a FUNCTION option (for example, Current). Step 2 Select a DIRECTION option if applicable (for example, Measure). Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 284...
Page 298
Step 6 Note: • All electrical measure functions must have a 3-point calibration. • Current Source function must have a 2-point calibration. • Voltage source function must have a 1-point calibration. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 285...
Page 299
Step 8 Apply Steps 6 to 8, but start by the use of the nominal zero Current (approximately 0 mA) to the DPI610E. This completes Calibration point 2. Step 9 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 286...
Page 300
RESTART softkey that lets the calibration procedure be started again if a new calibration is necessary. BACK softkey stops the calibration procedure and go back to the Perform Calibration menu screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 287...
Select PERFORM CALIBRATION from the Instrument Calibration menu. Step 1 Table continues on next page Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 288...
Page 302
This is Calibration point 1. When the measured Pressure reading is stable, select the Next icon to continue. Note: Two applicable calibration points are Step 4 necessary for Pressure sensor calibration. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 289...
Page 303
Apply Steps 4 to 6, but start by the application of the nominal positive full-scale pressure to the DPI610E. Push the Next softkey to complete Calibration point 2 and go to Calibration point 3. Step 7 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 290...
Page 304
Step 10 When verification is complete, select the Back icon to stop the calibration procedure. An option is to select the Restart softkey to do the calibration again. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 291...
Select PERFORM CALIBRATION from the Instrument Calibration menu. Step 1 Select Barometer function. Select to continue. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 292...
Page 306
Barometer sensor calibration to occur. Enter REFERENCE VALUE 1 as shown on the external calibrated equipment. Push the Tick softkey to enter and then go back to the Calibration screen. Step 4 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 293...
Page 307
Select OK to apply the calibration adjustment. But, if the procedure is to be Step 7 stopped, select the Cancel button to go back to the Calibration screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 294...
Page 308
Step 9 When verification is complete, select the Back icon to stop the calibration procedure. An option is to select the Restart softkey to do the calibration again. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 295...
To get access to the Internal Pressure Sensor Status screen (Figure 14-2), select INTERNAL PRESSURE SENSOR STATUS from the Instrument Calibration screen as shown below: Select INTERNAL PRESSURE SENSOR STATUS from the Instrument Calibration screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 296...
To get access to the Instrument Calibration Date & Interval screen (Figure 14-3), select SET CALIBRATION DATE & INTERVAL from the Instrument Calibration menu as shown below: Select SET CALIBRATION DATE & INTERVAL from the Instrument Calibration menu. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 297...
Tap Step 2 either the left or right value again and again to decrease or increase the selected value. Select to enter the changes. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 298...
14.4.2 How to change the Calibration Interval Select CALIBRATION INTERVAL from the Date & Interval Instrument Calibration screen. Step 1 Enter a calibration interval between 7 and 548 (days). Select to enter the value. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 299...
Tap Step 2 either the left or right value again and again to decrease or increase the selected value. Select to enter the changes. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 300...
Select OK to make a backup. Step 2 Make sure that the screen shows the “Calibration backup successful” message. If the screen does not show this message, do steps 1 and 2 again. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 301...
Step 2 Make sure that the screen shows the CALIBRATION RESTORE successful message. If the screen does not show this message, do steps 1 and 2 again. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 302...
Select OK to bring the instrument to its factory condition. Step 2 Make sure that the screen shows the FACTORY CALIBRATION RESTORE successful message. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 303...
DPI610E. This sensor calibration must only be done by service centres and personnel that have the necessary approval. Select PERFORM CALIBRATION from the External Sensor Calibration menu screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 304...
Figure 14-4: External Pressure Sensor Status To get access to the External Pressure Sensor Status screen: Select VIEW SENSOR STATUS from the External Sensor Calibration screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 305...
Figure 14-5: External Sensor Calibration Date & Interval Screen To get access to the SET CALIBRATION DATE & INTERVAL screen: Select SET CALIBRATION DATE & INTERVAL screen from the External Sensor Calibration screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 306...
Page 320
Tap Step 2 either the left or right value again and again to decrease or increase the selected value. Select to enter the changes. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 307...
Page 321
14.8.3.2 How to change the CALIBRATION INTERVAL Select CALIBRATION INTERVAL from the External Pressure Sensor Status screen. Step 1 Enter a calibration interval between 7 and 548 (days). Select to enter the value. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 308...
Page 322
Tap Step 2 either the left or right value again and again to decrease or increase the selected value. Select to enter the changes. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 309...
Use the instructions in Section 9 on page 158 for the calibration procedure. To get access to the External Sensor Calibration (RTD) screen, use this procedure: Select PERFORM CALIBRATION from the External Sensor Calibration screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 310...
Page 324
Enter the REFERENCE VALUE 1 as shown on the external calibrated equipment. Push the Tick softkey to enter the value and go back to the Calibration screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 311...
Page 325
Select OK to do the calibration Step 6 adjustment. If the procedure is to be stopped, select the Cancel button to go back to the Calibration screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 312...
Page 326
Step 8 When verification is complete, select the Back icon to close the calibration procedure. Select the Restart softkey to do the calibration again if necessary. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 313...
Figure 14-6: External Sensor Calibration (Date & Interval) Status Screen To get access to the External RTD Calibration Date & Interval screen: Select SET CALIBRATION DATE & INTERVAL from the External Sensor Calibration screen. Step 1 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 314...
Page 328
Tap either the left or right value again and again Step 2 to decrease or increase the selected value. Select to confirm the changes. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 315...
Page 329
14.9.2.2 How to change the Calibration Interval Select CALIBRATION INTERVAL from the External Sensor Calibration Status screen. Step 1 Enter a calibration interval between 7 and 548 (days). Select to enter the value. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 316...
Page 330
Select to confirm the changes. Tap either the left or right value again and again to decrease or increase the selected value. Select to confirm the changes. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 317...
15.1 How to get access to the Files system menu Select the Files softkey from the Dashboard. Step 1 Select the wanted folder from the Files menu. In this example, the Calibration folder is selected. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 318...
Backup Calibration – if the Backup calibration function is used (See Section 14.5 on page 301), a copy of the Current Calibration data is saved as a Backup data file. Figure 15-1: Calibration Files screen Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 319...
Single Delete softkey to erase individual files or the Delete All softkey to erase all files in the sub-folder: Figure 15-3: Local Procedures files Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 320...
Unwanted result-files in the folder can be erased by the use of either the Single Delete softkey (to erase individual files) or the Delete All softkey (to erase all files in the sub-folder). Figure 15-5: Switch Test files screen Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 321...
USB: change the USB setting to “Storage” if not set. This lets the DPI610E device be available as a mass storage drive, identified as “DPI610E” in the Windows File Explorer on the PC. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 322...
Refer to Section 16.8 on page 330 for information about how to use the Error Log function. Refer to Section 16.9 on page 331 for information about how to use the Event Log function. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 323...
Dashboard. Step 1 The screen shows Status menu options. To select the row that has the wanted option, tap on the row or use the Navigation pad. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 324...
QR code. This code takes the user to where the software programming tool can be downloaded, with instructions on how to use it to do software upgrades. Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 325...
161) or EXTERNAL RTD function (see Section 9.2.4 on page 167). To look at the instrument (or sensor) data. Select the Back softkey to go back to the Status - Calibration menu Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 326...
BATTERY row, to show the Status - Battery screen. Step 1 The Status - Battery screen shows the instrument battery level and if the battery gives power (discharging) or receives power (being charged). Step 2 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 327...
Tap on the Status Memory icon to get access to instrument memory. It can be necessary to make more memory available Step 2 for a new file. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 328...
Chapter 9 on page 158 for information. View the sensor details. Select the Back softkey to go back to the Status - Sensor screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 329...
Select OK or Cancel. Step 2 Tap the down icon to show one more page of available files. Tap the Back icon to go back to the Status screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 330...
Select OK or Cancel. Step 2 Tap the down icon to show one more page of available files. Tap the Back icon to go back to the Status screen. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 331...
TASK. See Section 17.1.1 on page 334. CREATE NEW to save a new setup. See Section 17.1.2 on page 336. Step 3 Tap on a row to select the method. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 333...
Step 1 in Section 17.1 on page 333). Select the Add New softkey in the Favorites screen. Step 2 Select the SAVE CURRENT CALIBRATOR TASK option in the Add New Favorite task screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 334...
AS field or accept the default file name that uses the current date. To save the setup select the Tick softkey. (Maximum characters: 20). Step 4 The Favorites screen shows the new setup file in a list. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 335...
Select any of the setup parameters to change. When the setup is complete, select the Next softkey to move to the Favorites CH2 Setup screen. Step 3 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 336...
Page 349
Select the Tick softkey to save the setup. (Maximum characters: 20). Step 5 The Favorites screen shows the new setup file in its list. Step 6 Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 337...
Saved Favorites setup files can be looked at in the File System menu by the selection of the File System softkey from the Dashboard and the selection of the Favorites folder. Refer to Section 15.8 on page 322 for more information. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 338...
Hydraulic version: Instrument leak rate is less than 0.05% Full Scale/min for positive pressure (Full scale 70bar to 1000bar). 18.2 Open Source Software Licenses Two files are available with the software installation: 1568-notices-report-08_08_2022_17_04.txt covers DK0491 DPI610E Bootloader. 1563-notices-report-08_08_2022_16_01.txt covers DK0492 DPI610E Main Application. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | 339...
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | i...
RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. Copyright 2022 Baker Hughes Company. English–DPI610E Instruction Manual | ii...
Services and Support Locations Copyright 2022 Baker Hughes Company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third- party product and company names are trademarks of their respective holders.
Need help?
Do you have a question about the Druck DPI610E and is the answer not in the manual?
Questions and answers
