Summary of Contents for Baker Hughes Druck DPI 610A

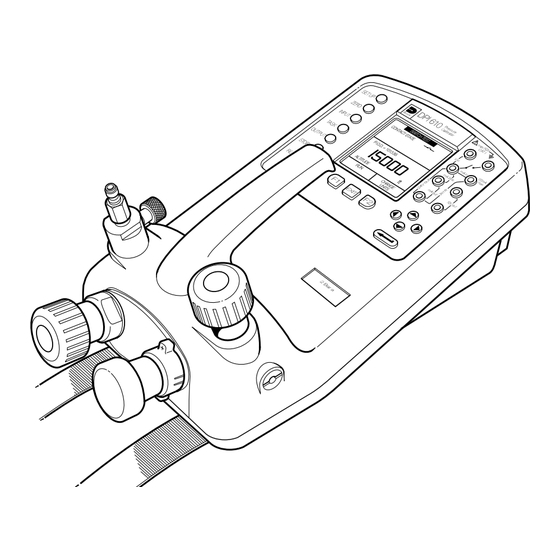

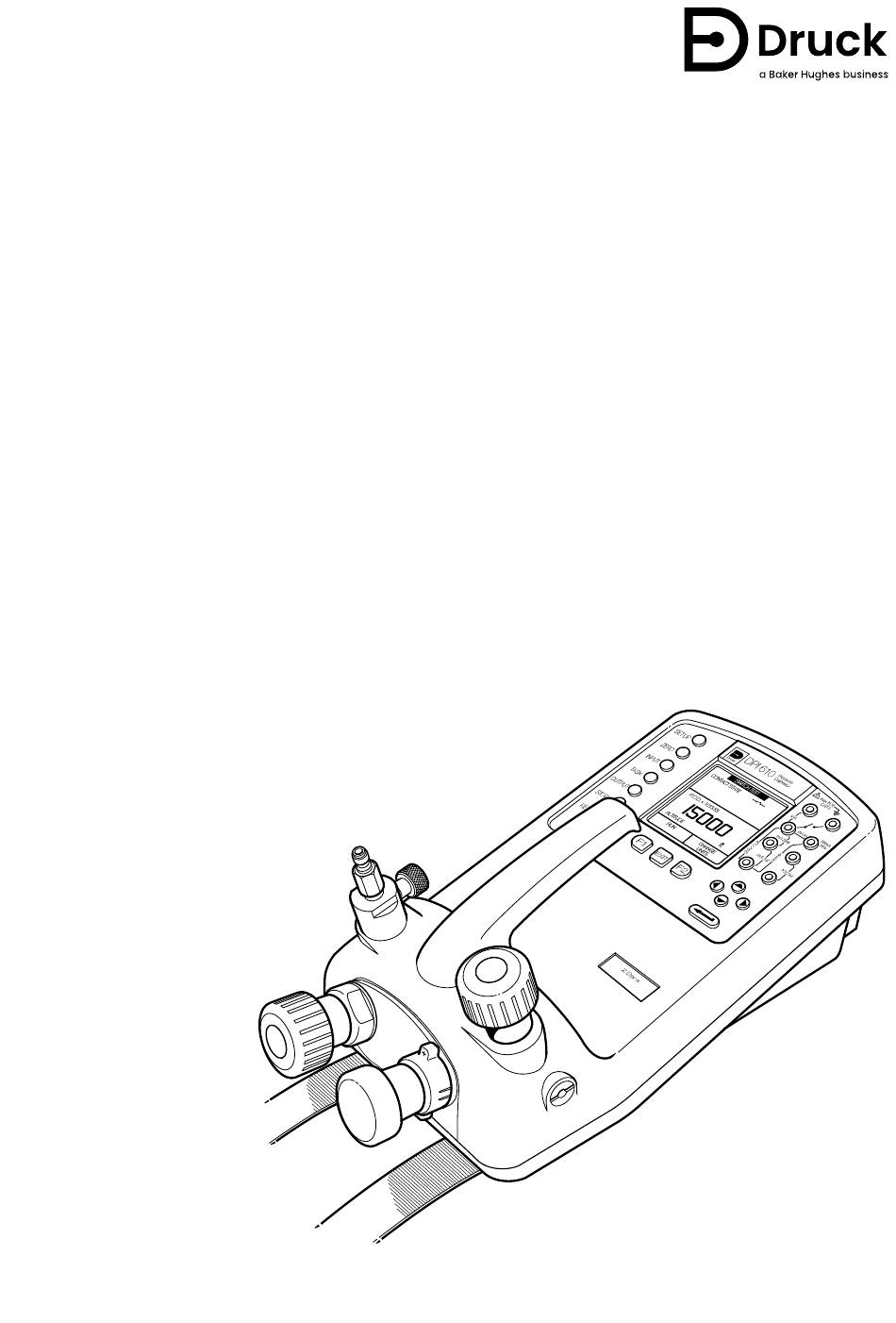

- Page 1 DPI 610A Aeronautical Portable Pressure Calibrator Instruction Manual Druck.com...
- Page 3 - Our customer service department: Druck.com - Your local government office. A qualified technician must have the necessary technical knowledge, documentation, special test equipment and tools to carry out the required work on this equipment. Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 1...
- Page 4 300 x 170 x 140 mm (11.8" x 6.7" x 5.5") Weight: 3 kg (6.6 lb) Note: For further general specification and functionality details refer to the standard DPI 610/615 Series Portable Calibrator data sheet. Copyright 1998 Baker Hughes Company. 2 | DPI610A Instruction Manual–English...
-
Page 5: Table Of Contents
(returned to ground level) by the user when the pressure or vacuum has vented to a safe operational level i.e. < 1500 ft. The aeronautical option (AERO) can be accessed only from the Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 3... -
Page 6: Introduction
Selects either positive (pitot) or negative (static) pressure. Hand-pump - generates either positive (pitot) or Fine adjustment of either positive (pitot) or negative negative (static) pressure. (static) pressure. Figure 1: DPI 610A Calibrator Controls Copyright 1998 Baker Hughes Company. 4 | DPI610A Instruction Manual–English... -
Page 7: Pneumatic Controls
110% of the above maximum values. The pressure display flashes at altitudes below -3000 ft and above 50,000 ft or at airspeeds greater than 600 knots, depending on the mode selected. Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 5... -
Page 8: Operation
SELECT OPTION SETUP SETTINGS UNITS BACKLIGHT CALIBRATION LANGUAGE STORE MODE RS232 CONTRAST SETUP SETTINGS POWERDOWN CALIBRATION DRY CELL LEVEL POD ADJUST • Apply QFE pressure reading as POD correction as follows: Copyright 1998 Baker Hughes Company. 6 | DPI610A Instruction Manual–English... -
Page 9: Method (Accessible Switch Contacts)
CONTACT STATE CLOSED AT 5550 CLOSED AT 5550 OPENED AT 5325 HYSTERESIS POD = Off POD = Off POD = Off ALTITUDE ALTITUDE ALTITUDE STOP MANUAL STOP MANUAL OPERATION OPERATION Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 7... -
Page 10: Method (Non-Accessible Switch Contacts)
10. To cancel switch test mode, press TASK. 2.2 Altitude Leak Tests Select TASK, AERO: • Select ALTITUDE LEAK TEST: SELECT TASK SELECT TASK ALTITUDE SWITCH TEST LEAK TEST AIRSPEED SWITCH TEST LEAK TEST Copyright 1998 Baker Hughes Company. 8 | DPI610A Instruction Manual–English... -
Page 11: Method
On completion of the test, allow the altitude to decrease until it is below 1500 ft. Slowly open the manual let-down valve to return the system to ground level. To exit or cancel leak test mode, press TASK. 2.3 Airspeed Switch Tests Select TASK, AERO: Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 9... -
Page 12: Method (Accessible Switch Contacts)
Figure 4: Airspeed Switch Test Connections Ensure that positive pressure is selected and close the release valve. Close the manual let-down valve. Zero the airspeed reading by pressing the ZERO key. Copyright 1998 Baker Hughes Company. 10 | DPI610A Instruction Manual–English... -
Page 13: Method (Non-Accessible Switch Contacts)
Slowly open the manual let-down valve to return system to zero (ground level). 10. To perform another switch test, press RUN (F1). 11. To cancel switch test mode, press TASK. 2.4 Airspeed Leak Tests Select TASK, AERO: Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 11... -
Page 14: Method
Record the displayed operating data. Allow the airspeed to decrease until it is below 80 kts. Slowly open the manual let-down valve to return the system to zero (ground level). Copyright 1998 Baker Hughes Company. 12 | DPI610A Instruction Manual–English... - Page 15 To perform another leak test, use the hand-pump to generate a new airspeed and press RUN (F2) again. To exit or cancel leak test mode, press TASK. Copyright 1998 Baker Hughes Company. English–DPI610A Instruction Manual | 13...
- Page 16 Copyright 1998 Baker Hughes Company. 14 | DPI610A Instruction Manual–English...
- Page 20 Copyright 1998 Baker Hughes Company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third- party product and company names are trademarks of their respective holders. bakerhughes.com...
