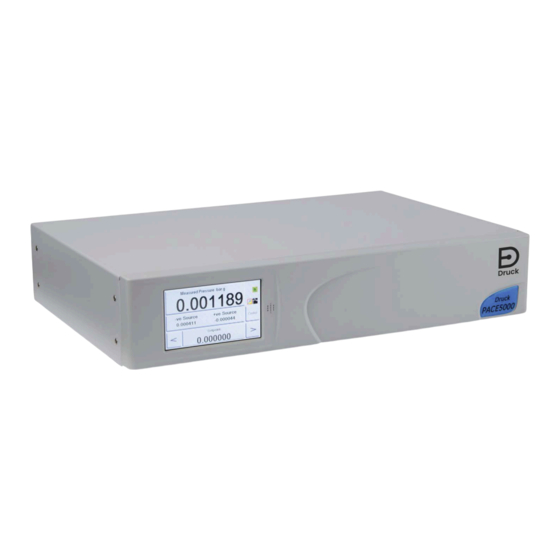

Summary of Contents for Baker Hughes Druck PACE

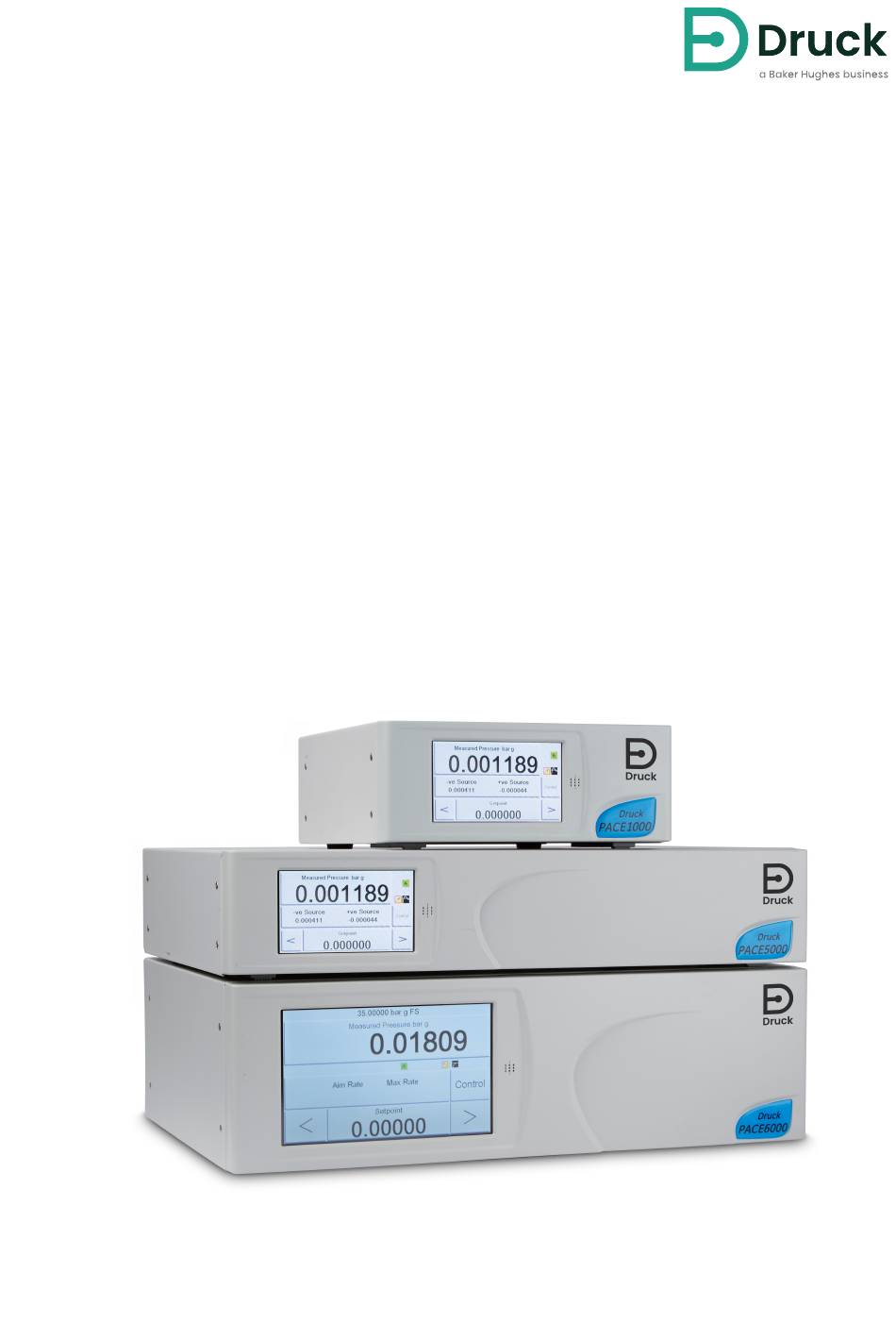

- Page 1 PACE Pressure Automated Calibration Equipment Calibration Manual Druck.com...
-
Page 3: Table Of Contents
All Other Variants (700 mbarg and Below) Appendix A. PACE Menus and Screens PACE Controller Menus PACE Controller Screens PACE Indicator Menus PACE Indicator Screens Appendix B. Pressure Units and Conversion Factors Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | i... - Page 4 Copyright 2010 Baker Hughes Company. ii | PACE Calibration Manual–English...
- Page 5 For technical advice contact the manufacturer. A qualified technician must have the necessary technical knowledge, documentation, special test equipment and tools to carry out the required work on this equipment. Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 1...
- Page 6 Isolate the power supply before making any electrical connections to the rear panel. Abbreviations The following abbreviations are used in this manual. Abbreviations are the same in the singular and plural. Abbreviation Description Alternating Current Foot Water Mercury Inch kilogram Copyright 2010 Baker Hughes Company. 2 | PACE Calibration Manual–English...
-
Page 7: Introduction
To preserve uncertainty of the PACE calibration, checks and adjustments must be performed using a calibrator uncertainty of less than or equal to the original pressure calibration standard. Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 3... -
Page 8: Preliminary Operations
Reference Level Figure 1: PACE1000 Reference Level Reference Level Figure 2: PACE Control Module Reference Level Set the PACE units of pressure to one of the required units for calibration. Copyright 2010 Baker Hughes Company. 4 | PACE Calibration Manual–English... -
Page 9: Pressure Connection Overview
Refer to Table 1 and the Data Sheet for more information. Table 1: Pressure Adaptor Specification Adaptor Part Number Specification IO-SNUBBER-1 Restrictor/Snubber IO-DIFFUSER-1 Diffuser IO-ADAPT-1/4NPT ISO 228 G1/8 Male to 1/4 NPT Female. Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 5... -
Page 10: Pressure Connection
The PACE has parallel thread pressure connectors. Use only the connector type specified in Table 2. Table 2: PACE Pressure Connector Thread Specification PACE Connector Thread Specification Supply +, Supply -, Output, ISO228/1 G1/8 Parallel Threads (DIN ISO228/1, JIS B0202) Vent, Reference Copyright 2010 Baker Hughes Company. 6 | PACE Calibration Manual–English... - Page 11 For pressures less than 100 bar (1450 psi), see alternative sealing method in Figure 5. PACE pressure connector. Bonded seal. ISO228/1 G1/8 pressure connector or adaptor. For adaptors, see Section 5.1.1. Figure 5: Alternative Sealing Method for < 100 bar (1450 psi) Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 7...
-
Page 12: Pace Controller Connection For Output Sensor Calibration
5.3 PACE Controller Connection for Barometric Sensor Calibration Connect the output of the pressure calibration standard to the PACE module reference port. PACE Pressure Controller (viewed from rear). Control Module 2. Control Module 1. Pressure calibration standard. Copyright 2010 Baker Hughes Company. 8 | PACE Calibration Manual–English... -
Page 13: Pace Indicator Connection For Input Sensor Calibration
For PACE calibration menus, refer to Appendix A To check the calibration of PACE, proceed as follows: Connect the PACE to the pressure calibration standard. Refer to Section 5. Press Task and select Basic. Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 9... -
Page 14: Calibration Adjustment
(aim for 1 ppm (0.0001%) on CM3). Use the numeric keys to enter the precise applied pressure. Note: The display also shows throughout this procedure the message Calibrating and the selected pressure range. Copyright 2010 Baker Hughes Company. 10 | PACE Calibration Manual–English... -
Page 15: Calibration Procedure For Cm3 8 Bar Absolute And Above Ranges
(only accessible by Druck service centers). If this option is not available then skip step (2). 9. Recommended Calibration Check Points 9.1 Barometric Variant 750 mbar 900 mbar 950 mbar 1050 mbar 1150 mbar 1050 mbar 1000 mbar 950 mbar 900 mbar 750 mbar Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 11... -
Page 16: Bara / 1 Barg Up To 21 Bara / 20 Barg
60% of full-scale pressure 80% of full-scale pressure 100% of full-scale pressure 80% of full-scale pressure 60% of full-scale pressure 40% of full-scale pressure 20% of full-scale pressure Atmospheric / 0 mbarg Copyright 2010 Baker Hughes Company. 12 | PACE Calibration Manual–English... -
Page 17: All Other Variants (700 Mbarg And Below)
-40% of full-scale pressure -20% of full-scale pressure 0 mbarg 20% of full-scale pressure 40% of full-scale pressure 60% of full-scale pressure 80% of full-scale pressure 100% of full-scale pressure 0 mbarg Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 13... - Page 18 Copyright 2010 Baker Hughes Company. 14 | PACE Calibration Manual–English...
-
Page 19: Appendix A. Pace Menus And Screens
PACE Controller Menus Appendix A. PACE Menus and Screens A.1 PACE Controller Menus Calibration procedure next page Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 15... -
Page 20: Pace Controller Screens
Appendix A. PACE Menus and Screens A.2 PACE Controller Screens Copyright 2010 Baker Hughes Company. 16 | PACE Calibration Manual–English... -
Page 21: Pace Indicator Menus
PACE Indicator Menus A.3 PACE Indicator Menus Calibration procedure next page Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 17... -
Page 22: Pace Indicator Screens
Appendix A. PACE Menus and Screens A.4 PACE Indicator Screens Copyright 2010 Baker Hughes Company. 18 | PACE Calibration Manual–English... -
Page 23: Appendix B. Pressure Units And Conversion Factors
To convert from pressure VALUE 1 in pressure UNITS 1, to pressure VALUE 2 in pressure UNITS 2, calculate as follows: FACTOR 1 ---------------------------- - VALUE 2 VALUE 1 FACTOR 2 Copyright 2010 Baker Hughes Company. English–PACE Calibration Manual | 19... - Page 24 Appendix B. Pressure Units and Conversion Factors Copyright 2010 Baker Hughes Company. 20 | PACE Calibration Manual–English...
- Page 26 Copyright 2010 Baker Hughes Company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third- party product and company names are trademarks of their respective holders. bakerhughes.com...
