- Page 1 Temperature Switch TRS 5-52 Original Installation & Operating Manual 819175-05 E n g l i s h...
-
Page 2: Table Of Contents
Connecting temperature sensors ......................12 Connecting the actual value output (optional) ..................12 Tools ..............................12 In the system: Wiring temperature sensors Connecting temperature sensors ......................13 Wiring diagram for temperature sensors ....................13 Factory settings Factory settings ............................13 TRS 5-52 - Installation & Operating Manual - 819175-05... - Page 3 Checking the function of the MIN/MAX output contacts .................17 Troubleshooting Indications, diagnosis and remedies .....................18 Further information Action against high-frequency interference ...................19 Replacing/taking the equipment out of service ..................19 Disposal..............................19 TRS 5-52 - Installation & Operating Manual - 819175-05...
-
Page 4: Important Notes

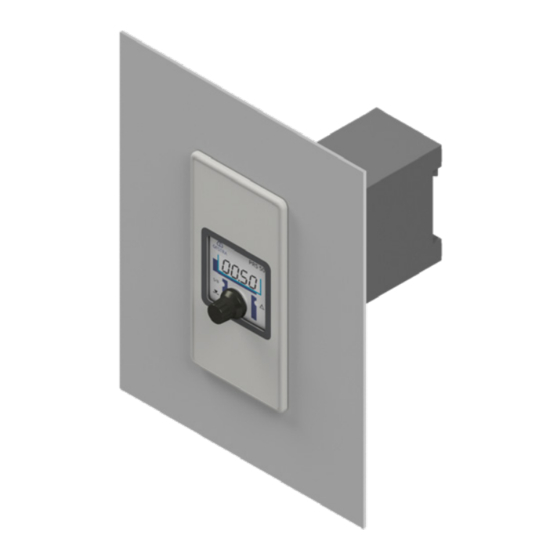

The temperature switch indicates when a MIN and MAX temperature has been reached. The TRS 5-52 temperature switch can be combined in a circuit with the TRG 5-63, TRG 5-64, TRG 5-65, TRG 5-66, TRG 5-67 and TRG 5-68 temperature sensors. -
Page 5: Directives And Standards
Directives and standards DIN EN 14597 In combination with the TRG 5-6.. temperature sensor, the TRS 5-52 temperature switch has type approval to DIN EN 14597. DIN EN 14597 describes the requirements for testing temperature monitors, for example. LVD (Low Voltage Directive) and EMC (Electromagnetic Compatibility) The equipment conforms to the requirements of the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU. -
Page 6: Technical Data
Pollution degree 2 for installation in control cabinet with protection rating IP 54, fully insulated IP rating Housing: IP 40 to EN 60529 Terminal strip: IP 20 to EN 60529 Panel adapter: IP 65 to EN 60529 Weight approx. 0.2 kg TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 7: Product Package
UL/cUL (CSA) UL 508 and CSA C22.2 No. 14-13, Standards for Industrial Control Equipment. Approval File E243189. Product package TRS 5-52 1 temperature switch TRS 5-52 1 Installation & Operating Manual TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 8: Name Plate/Identification
Ambient temperature Output contacts Name plate, bottom Connection of actual value output Fuse, (optional) provided on site Temperature sensor connection Power consumption Supply voltage DIN number Material Disposal number note Fig. 2 TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 9: Installation
The advantage of this is that the status is visible and alarms can be tested without opening the control cabinet door. When installed, the adapter has a rating of IP65. Please refer to the panel adapter Installa- tion & Operating Manual 850625-xx for further information. TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 10: Dimensions Of The Trs 5-52
Support rail TH 35, EN 60715 Installation in a control cabinet The TRS 5-52 temperature switch is clipped onto a TH 35, EN 60715 support rail in the control cabinet. Fig. 1 4 TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 11: In The Control Cabinet: Wiring The Temperature Switch
Temperature sensor TRG 5-6.. , shielding via cable gland Terminal wh = white, terminals rd = red Central earthing point (CEP) in control cabinet Actual value output 4-20 mA (optional) MAX output contact MIN output contact TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 12: Supply Voltage Connection
DIN EN 60730-1 or DIN EN 60950 between the current loop and live parts of the equipment that are not supplied with safety extra-low voltage (SELV). Attention Do not use unused terminals as support terminals. Tools Screwdriver size 3.5 x 100 mm, fully insulated to VDE 0680-1. TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 13: In The System: Wiring Temperature Sensors
In the system: Wiring temperature sensors Connecting the temperature sensor The TRS 5-52 temperature switch can be combined in a circuit with the TRG 5-63, TRG 5-64, TRG 5-65, TRG 5-66, TRG 5-67 and TRG 5-68 temperature sensors. To connect the equipment, please use a shielded, multi-core control cable with a minimum conductor size of 0.5 mm... -
Page 14: Operating The Temperature Switch
Input is confirmed Appears in the event of malfunctions E.005 Error Temperature sensor defective, reading too low E.006 Error Temperature sensor defective, reading too high E.013 Error MIN switchpoint higher than MAX switchpoint TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 15: Setting Parameters
Turn the rotary knob until the next parameter is shown. Or turn the rotary knob until the actual value is displayed. Or after 30s, the actual value is displayed automatically. TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 16: Bringing Into Service
When the equipment is restarted, the parameters are password-protected, if password protection was previously enabled. If password protection is enabled, you must enter the password before you can change parameters. TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 17: Indicators
Note: If you continue holding the pushbutton, the test sequence will start again. pushbutton. Equipment You can interrupt the test sequence at any time by releasing the pushbutton. switches to operating mode. If the test was failed, replace the temperature switch. TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 18: Troubleshooting
In the event of a malfunction in the temperature switch, the MIN and MAX alarm is trig- gered and the equipment restarts. If the process is continually repeated, the equipment must be replaced. TRS 5-52 - Installation & Operating Manual - 819175-05... -
Page 19: Further Information
In the event of malfunctions or faults that cannot be remedied with the aid of this Installation & Operat- ing Manual, please contact our service centre or authorised agent in your country. TRS 5-52 - Installation & Operating Manual - 819175-05... - Page 20 You can find our authorised agents around the world at: www.gestra.com GESTRA AG Münchener Straße 77 28215 Bremen Germany Tel. +49 421 3503-0 +49 421 3503-393 E-mail info@de.gestra.com Website www.gestra.com 819175-05/11-2021cm (808880-05) · GESTRA AG · Bremen · Printed in Germany...
