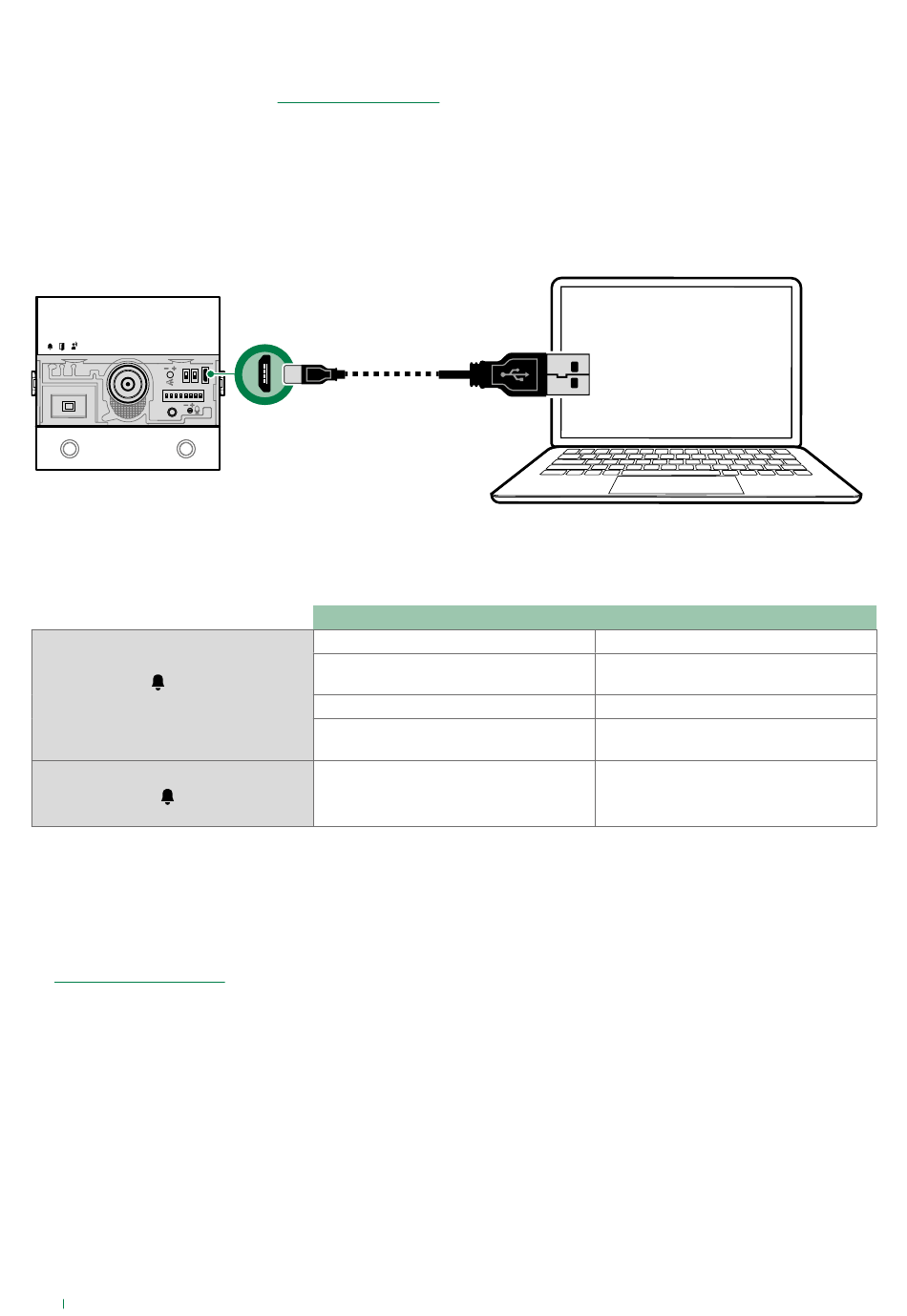

Configuring via PC

All device configurations can be performed via PC and ViP Manager configuration software, available to download free of
charge from pro.comelitgroup.com
For example:
• programming call addresses for the buttons
• activating audiovisual indications
• adjusting the backlighting and twilight sensor threshold
• setting the functions that can be assigned to the RTE input (lock-release, relay control, actuator control, etc.)
• setting activations that can be assigned to the module SE outputs and relay
√ You will need a USB micro-USB cable.

Errors and indications

RED LED LIT STEADILY
+
DISSUASION TONE
RED LED FLASHING

System performance and layouts

For further information regarding system performance and to view installation layouts, click on the system type:
• Simplebus2 audio/video
30
.
(See programming manual)
INDICATION
Line short-circuit
Dual power supply present
Button modules with the same ID
Programming selector positioning error
Device in programming
SOLUTION
Check connections
Remove jumper J4 on the audio/video
module
Check the button module IDs
Check the position of selectors S1 and
S2 (they cannot both be set to ON)
