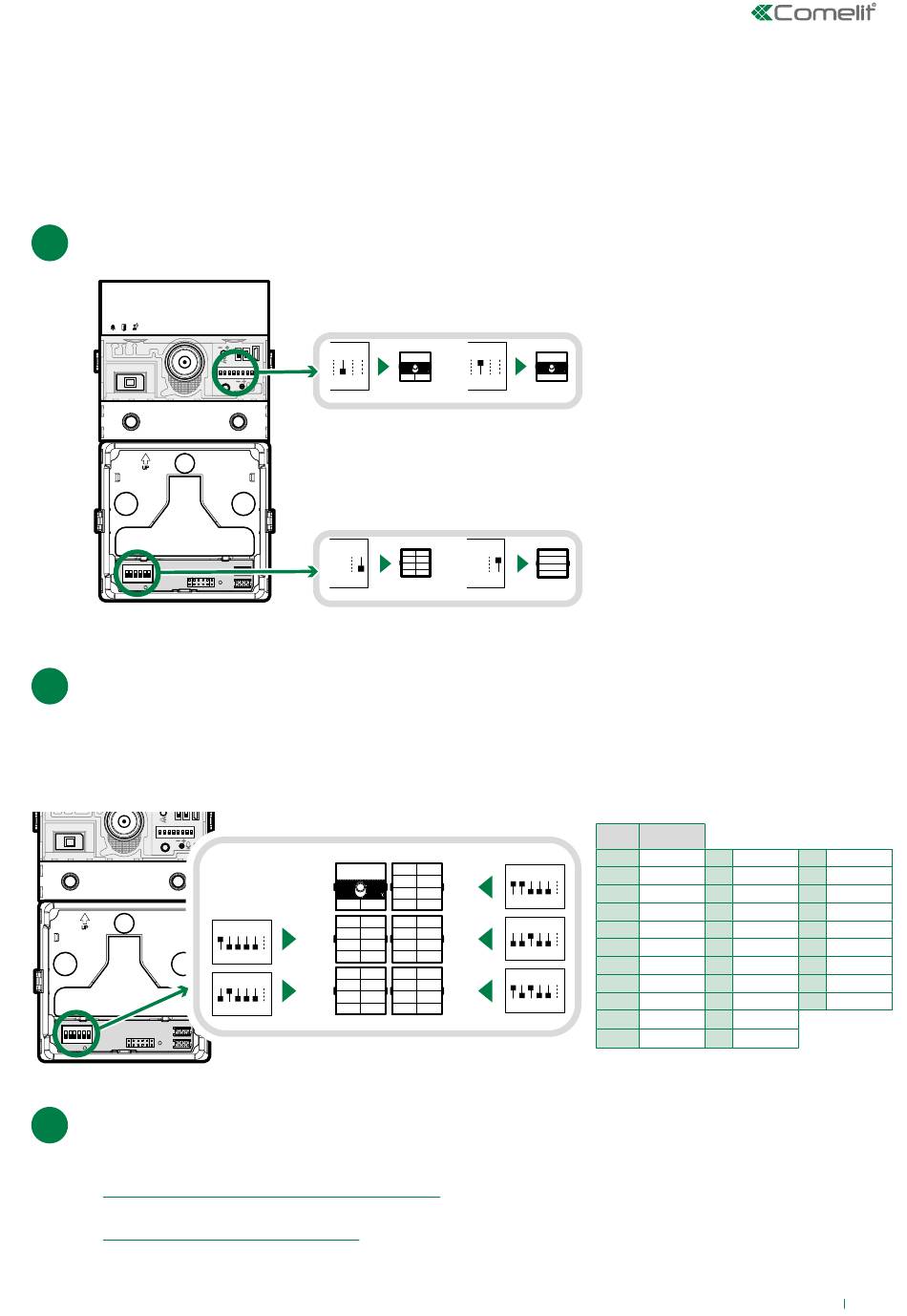

For correct programming, follow the instructions below in order
I.
Configure button type
II.
Address button modules
III.
Program call addresses
I
Configuring the button type to maintain during normal operation (single/dual)
ON
1
2 3 4
5
6
II
Address button modules
DIP 1-5: addressing call button module (see TAB. A)
Addressing call button modules means that, in the event they are replaced, it is not necessary to reprogram the
button addresses. All you need to do is assign the same address as before to the new module.
ON
1
2 3 4
5
6
III
Program call addresses
There are 2 programming methods:
•
Smart programming of consecutive addresses:
(e.g.: 1, 2, 3, 4)
•
Programming of specific addresses:
5
6
7
8
OFF
5
6
OFF
ON
1
1 2 3 4
5
6
ON
2
1 2 3 4
5
6
allows programming of specific addresses (e.g.: 25, 37, 70, 58)
ON
5
6
7
8
default
ON
5
6
default
ON
3
1 2 3 4
5
6
ON
4
1 2 3 4
5
6
ON
5
1 2 3 4
5
6
allows quick programming of buttons with consecutive addresses
DIP 6: configuring button type:
Single button (DIP6 ON).
Dual button (DIP6 OFF, default).
DIP 6: configuring button type:
Single button (DIP6 ON).
Dual button (DIP6 OFF, default).
TAB. A
code DIP ON
1
1
12
3.4
2
2
13
1,3,4
3
1.2
14
2,3,4
4
3
15
1,2,3,4
5
1.3
16
5
6
2.3
17
1.5
7
1,2,3
18
2.5
8
4
19
1,2,5
9
1.4
20
3.5
10
2.4
21
1,3,5
11
1,2,4
22
2,3,5
23
1,2,3,5
24
4.5
25
1,4,5
26
2,4,5
27
1,2,4,5
28
3,4,5
29
1,3,4,5
30
2,3,4,5
31 1,2,3,4,5
