- Page 1 TECHNICAL MANUAL Audio/video module for SBTOP system Passion.Technology. Design. Art. 4680C, 1622VC, 1622VCF...
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. -
Page 3: Description

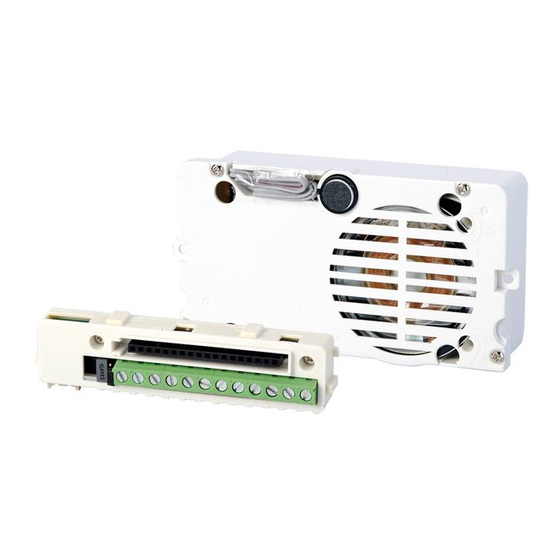

Description Article 4680C is a colour audio-video module which is compatible with Comelit “SBTOP” video entry systems, exclusively for use in conjunction with riser power supply unit Art. 4888C. It can be installed in Ikall, Ikall Metal, Vandalcom, Roma external units and can be finished with additional modules to meet all system requirements. -
Page 4: Connecting The Remote Camera
2. Switch for confirming special programmes. 6. Microphone. 3. Loudspeaker volume control. 7. Indicator LED: system busy. 8. Indicator LED: sound activated. 9. Colour camera (with Art. 4680C only). 10. Indicator LED: lock-release activated. Art. 1622VC Art. 1622VCF RED = +12V... -
Page 5: Technical Characteristics
Technical characteristics Art. 4680C MAIN FEATURES Audio/video system Horizontal resolution (TVL) Minimum illumination (lux) 0.35 Lens size (mm) 3.60 Camera orientation Clamps L L V+V- RTE DO PR GND SE COM NC NO Microphone volume control Loudspeaker volume control Operating temperature (°C) -25 ÷... - Page 6 Art. 1622VC Art. 1622 VCF MAIN FEATURES Audio/video system Clamps L L V+V- RTE DO PR GND SE COM NC NO L L V+V- RTE DO PR GND SE COM NC NO Microphone volume control Loudspeaker volume control Operating temperature (°C) -25 ÷...
-
Page 7: External Unit Installation
External unit installation 40-45 cm 59° 87° The camera must not be installed in front of light sources, or in places where the filmed subject is against the light. In dim environments, we recommend additional lighting is provided. Connect the module support frame to earth. Art. - Page 8 SOLO MT COMPLETO BLUE WHITE Nameplate LED lighting selection. Alternative microphone position (excluding 4 module entrance panel). 360° Open Close...
-
Page 9: Connections
Connections 4680C/1622VC/1622VCF connections VIDEO ENTRY SYSTEM RISER 1595 120-230 V 4680C 1622VC 1622VCF 20 m max. Local lock-release button. Active input closed for DOOR OPEN signal. Remote camera connection (Art. 1622VC / 1622VCF only) 1622VC 1622VCF BLACK WHITE BLUE... -
Page 10: Variants
1622VCF Set dip switches in permanent mode as shown in figure (Dip switch 8 ON, Dip switches 1,2,3,4,5,6,7 OFF) (Applies to Art. 4680C with R.I. 041 or greater) Jumper On C. NO. contacts On C. NC. contacts Excluded: voltage-free contact... -
Page 11: Module Connection
Module connection Ikall / Ikall Metal modules Connection of button modules 33433, 33434, 33436, 33433M, 33434M, 33436M 4680C 1622VC 1622VCF Connection of Art. 3348B, 3348BM VIDEO ENTRY SYSTEM RISER 1595 120-230 V 4680C 1622VC 1622VCF 3348B 3348BM Connection of Art. 3360B, 3360BM... -
Page 12: Vandalcom Modules
Vandalcom modules Connection of Art. 3064S VIDEO ENTRY SYSTEM RISER 1595 120-230 V 4680C + 3268S 1622VC / 1622VCF +3262S 3064S 3064S 3064S 3064S 1172B 1172B 1172B 1172B Use the cable supplied with Art. 3262S, 3268S Use bulb Art. 1172B for nameplate lighting. The bulb is polarised. -
Page 13: Connection Of Art. 3070S, 3072S
Connection of Art. 3070S, 3072S VIDEO ENTRY SYSTEM RISER 1595 120-230 V 4680C 1622VC 1622VCF 3070S 3072S "V-" BLUE "S" YELLOW "V+" BROWN 2E7T000696 Use the cable 2E7T000696 supplied with Art. 3070S, Art. 3072S Modules for Single-plate external unit Connection of Art. 3063D... -
Page 14: Button Programming
Button programming 33433 33434 33436 Set the user code using the dip switches; see addressing table. -
Page 15: Special Programmes
Special programmes 1 sec. Set the dip switches for the function you wish to program, see table below... - Page 16 CODE DIP SWITCH ON FUCNTION De-misting heating element 1,3,5,7,8 OFF (default) 3,5,7,8 Audio-visual messages 2,5,7,8 visual messages only 1,2,5,7,8 Swedish 2,3,5,7,8 OFF (default) 1,2,3,5,7,8 Italian 4,5,7,8 French 1,4,5,7,8 Spanish 2,4,5,7,8 Dutch 1,2,4,5,7,8 Greek 3,4,5,7,8 English 1,3,4,5,7,8 German 2,3,4,5,7,8 Portuguese 2,4,7,8 Enables voice message (door opened warning) when the RTE contact is closed Disables voice message (door opened warning) when the RTE contact is closed (default 1,2,4,7,8...
-
Page 17: Installation Information
• The module Art. 4680C / 1622VC / 1622VCF operates by default as a main external unit (timed busy signal). To set it as a secondary external unit (busy signal active for the whole time the riser is in use), set all the selector DIP switches to ON. - Page 18 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
