ASSEMBLY INSTRUCTIONS
RiverRidge

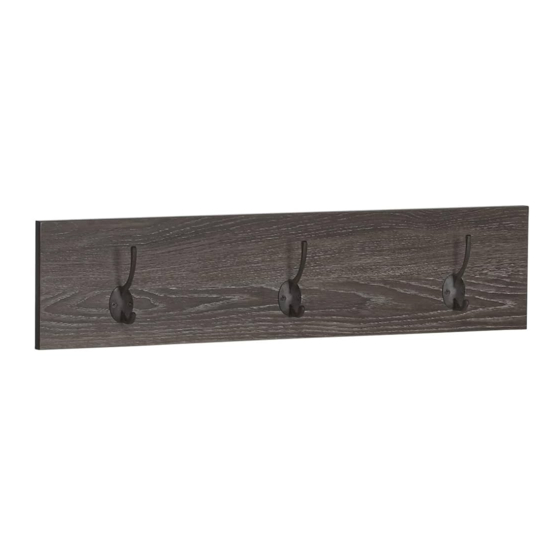

Afton 3-Hook Coat Rack
®
2 Pack
ITEM #:16-033
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
Advertisement
Table of Contents
Related Manuals for RiverRidge 16-033
Summary of Contents for RiverRidge 16-033
- Page 1 Afton 3-Hook Coat Rack ® 2 Pack ITEM #:16-033 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THESE COAT RACKS WILL HOLD UP TO 5 POUNDS PER HOOK OR A TOTAL OF 15 POUNDS PER COAT RACK. DO NOT LOAD EACH HOOK WITH MORE THAN 5 POUNDS OR LOAD THE COAT RACK WITH MORE THAN 15 POUNDS TOTAL WEIGHT.
- Page 3 PARTS LIST DESCRIPTION Wall panel...
- Page 4 PARTS LIST PARTS DESCRIPTION 3PCS Coat Hook 10PCS Screw (3x12mm) 2PCS Keyhole Hanging Plate Plastic Anchor 2PCS Screw (4x35mm) 2PCS Wall Mounting Paper Template TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
- Page 5 STEP 1 1. Attach 1 hook (A) to wall panel (1) by inserting 2 screws (B) through holes on hook (A), then tighten to wall panel (1). 2. Repeat above step for another 2 hooks (A). STEP 2 1. Attach 2 hanging plates (C) to wall panel (1) by inserting 4 screws (B) through holes on hanging plates (C), then tighten to wall panel (1).
- Page 6 STEP 3 OPTION #1 DRYWALL WALL WALL ANCHOR WITH SCREW OPTION #2 DRYWALL WOOD STUD SCREW ONLY Option #1: Securing to Drywall 1. Using wall mounting paper template to determine position, screw 2 plastic anchors (D) into drywall. 2. Insert 2 screws (E) into holes on plastic anchors (D) and tighten. 3.
- Page 7 Coat Racks! Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
