RiverRidge Afton 16-035 Assembly Instructions Manual

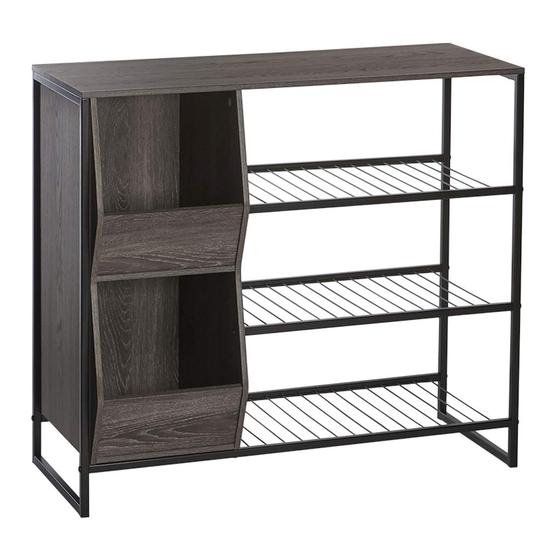

Riverridge® afton 3-tier shoe rack with storage bins
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
Afton 3-Tier Shoe Rack with Storage Bins
®
ITEM #:16-035
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Afton 16-035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Afton 16-035

Summary of Contents for RiverRidge Afton 16-035

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Afton 3-Tier Shoe Rack with Storage Bins ® ITEM #:16-035 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 15 POUNDS PER SHELF, 20 POUNDS PER BIN AND 20 POUNDS PER TOP BOARD OR A TOTAL OF 105 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 15 POUNDS PER SHELF, EACH BIN WITH MORE THAN 20 POUNDS AND TOP BOARD WITH MORE THAN 20 POUNDS OR A TOTAL OF 105 POUNDS.
  • Page 3 DESCRIPTION Top Board Left Side Panel Right Side Panel Shelf Bottom Board 2PCS Front Panel Back Panel 2PCS Metal Shelf Bottom Metal Shelf Left Side Frame Right Side Frame...

  • Page 4: Parts List

    PARTS LIST PARTS DESCRIPTION 16PCS Cam Bolt 16PCS Cam Lock 4PCS Wood Dowel (6x30mm) Machine Screw (6x35mm) 12PCS Screw (4x25mm) 4PCS Adjustable Anchor Bracket 2PCS Screw (4x10mm) 2PCS Plastic Anchor 2PCS Screw (4x30mm) 2PCS Screw (4x35mm) 2PCS TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call...
  • Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach brackets (F) to top board (1) by inserting 2 screws (G) through holes on brackets (F), then tighten to top board (1). STEP 2 1.
  • Page 6 STEP 3 Insert 2 wood dowels (C) into wood dowel holes on left side panel (2). Attach 2 front panels (6) to left side panel (2) by inserting wood dowels (C) into wood dowel holes and cam bolts (A) into cam lock holes on front panels (6). Insert 2 cam locks (B) into cam lock holes on front panels (6), then rotate clockwise to secure cam bolts (A) in place.
  • Page 7 STEP 5 1. Attach 2 metal shelves (8) to right side panel (3) by inserting 4 machine screws (D) through holes on right side panel (3), then tighten to 2 metal shelves (8). STEP 6 1. Attach bottom metal shelf (9) to right side panel (3) by inserting 2 screws (J) through holes on bottom metal shelf (9), then tighten to end of right side panel (3).
  • Page 8 STEP 7 1. Attach left side frame (10) to pre-assembled unit by inserting 2 machine screws (D) through holes on left side frame (10), then tighten to bottom metal shelf (9). 2. Attach right side frame (11) to metal shelves (8) and bottom metal shelf (9) by inserting 6 machine screws (D) through holes on right side frame (11), then tighten to metal shelves (8) and bottom metal shelf (9).

  • Page 9: Care Instructions

    STEP 9 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Position shoe rack against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (F).
  • Page 10 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
