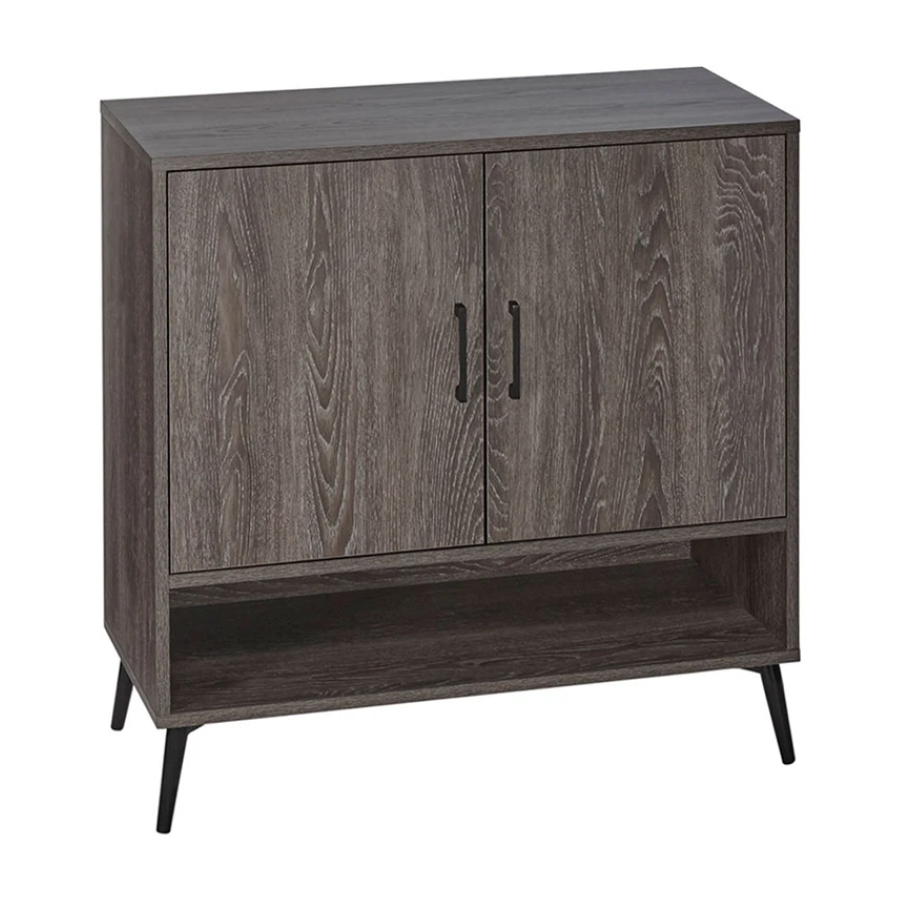

Woodbury shoe cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
®
RiverRidge
Woodbury Shoe Cabinet
ITEM #: 16-028
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 16-028 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge 16-028

Summary of Contents for RiverRidge 16-028

  • Page 1 ® RiverRidge Woodbury Shoe Cabinet ITEM #: 16-028 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF AND TOP BOARD FOR A TOTAL OF 100 POUNDS. DO NOT LOAD SHELVES OR TOP BOARD WITH MORE THAN 20 POUNDS. OVERLOADING WITH MORE THAN 20 POUNDS PER SHELF OR TOP BOARD OR 100 TOTAL MAY CAUSE SHELF TO TIP FROM WALL AND CAUSE DAMAGE TO THE SHELF OR SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board Adjustable Shelf Fixed Shelf Fixed Shelf Bottom Board Left Side Panel Right Side Panel Upper Back Board Lower Back Board 2PCS Door 4PCS Metal Leg...
  • Page 4 PARTS LIST PART DESCRIPTION 12PCS Cam Bolt 12PCS Cam Lock 16PCS Wood Dowel (8x30mm) 4PCS Screw (4x35mm) 8PCS Machine Screw (6x30mm) 8PCS Washer 4PCS Shelf Holder 4PCS Hinge 24PCS Screw (4x14mm) 2PCS Adjustable Anchor Bracket 2PCS Screw (4x14mm) 20PCS Screw (2.5x10mm) 2PCS Plastic Anchor 2PCS...
  • Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach brackets (J) to top board (1) by inserting 2 screws (K) through holes on brackets (J), then tighten to top board (1). STEP 2 1.
  • Page 6 STEP 3 1. Insert 4 wood dowels (C) into wood dowel holes on right side panel (7). 2. Attach fixed shelf (3) and (4) to right side panel (7) by inserting wood dowels (C) into wood dowel holes and cam bolts (A) into cam lock holes on fixed shelf (3) and (4). 3.
  • Page 7 STEP 5 1. Insert 4 wood dowels (C) into wood dowel holes on bottom board (5). 2. Attach bottom board (5) to left side panel (6) and right side panel (7) by inserting wood dowels (C) into wood dowel holes on left side panel (6) and right side panel (7). 3.
  • Page 8 STEP 7 1. Insert 4 wood dowels (C) into wood dowel holes on top board (1). 2. Attach top board (1) to left side panel (6) and right side panel (7) by inserting wood dowels (C) into wood dowel holes and cam bolts (A) into cam lock holes on left side panel (6) and right side panel (7).
  • Page 9 STEP 9 Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (J). Move cabinet away from wall and screw 2 plastic anchors (M) into wall on pencil marks.
  • Page 10 STEP 11 1. Attach 2 hinges (H) to door (10) by inserting 4 screws (I) through holes on hinges (H), then tighten to door (10). 2. Attach handle (N) to door (10) by inserting 2 machine screws (O) through holes on door (10) and tighten to handle (N).

  • Page 11: Care Instructions

    ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth.
  • Page 12 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
